Compact Powered Loudspeaker for Portable PA and Fixed Installation
The

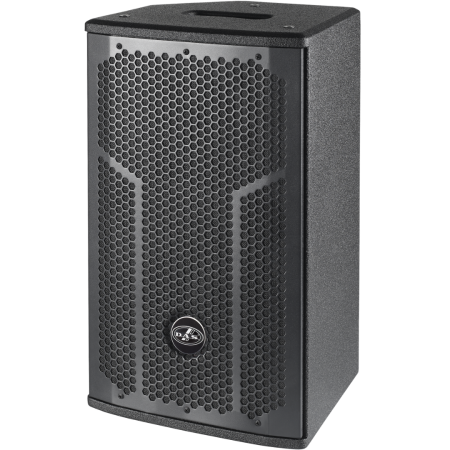

DAS Action-508A is a compact yet powerful 8" powered loudspeaker designed for exceptional versatility across portable PA setups, front fills, stage monitoring, and fixed installations. Delivering 720W peak power and 122 dB SPL, it offers professional-grade performance in a lightweight birch plywood enclosure.
DAS Action-508A Competitive Differences
- 720W peak Class D amplifier delivers high output with low power consumption
- DAScontrolâ„¢ interface with 24-bit DSP and LCD screen for quick setup and tuning
- Rotatable 90º x 60º horn for flexible vertical or horizontal use (stage monitor, front fill, install)
- High-efficiency 8GV woofer and M-34 compression driver for clean, powerful sound
- Multiple inputs: dual balanced XLR for mic/line and 3.5 mm AUX input for convenience
- Birch plywood construction with ISO-flex coating for durability and warm acoustic character
DAS Action-508A Description
The
DAS Action-508A is part of the acclaimed Action-500 series, engineered for applications requiring top-tier sound performance in a compact format. It features an 8" 8GV low-frequency driver paired with a 1.5 cm M-34 compression driver mounted on a rotatable 90º x 60º horn, making it ideal for both upright and wedge monitor use.
Its integrated Class D amplifier produces 360W RMS (720W peak) of clean, efficient power, while the
DAScontrolâ„¢ digital signal processor allows precise control of EQ, delay, gain, and input source mixing via an intuitive rear-mounted LCD interface.

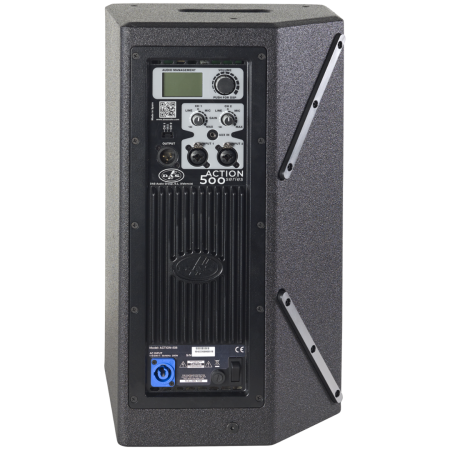

Built for portability and resilience, the Action-508A enclosure is constructed from birch plywood and finished in durable ISO-flex paint. M8 rigging points and a pole mount socket offer various installation options, while dual XLR inputs and an AUX mini-jack input enhance its adaptability across professional environments.
Action-508A Features
- 720W peak / 360W continuous Class D amplifier
- 8" 8GV low-frequency driver
- 1.5 cm M-34 high-frequency compression driver
- Rotatable 90º x 60º horn for horizontal or vertical orientation
- DAScontrolâ„¢ 24-bit DSP with LCD screen
- Dual XLR inputs for mic and line-level signals
- 3.5 mm AUX input for portable devices
- Loop-thru male XLR output
- Birch plywood enclosure with ISO-flex finish
- M8 rigging points for installation
Action-508A Specifications
- Frequency Range (-10 dB): 65 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 90º
- Vertical Coverage: 60º
- Maximum Peak SPL at 1 m: 122 dB
- Amplifier Power (Continuous): 360 W
- Amplifier Power (Peak): 720 W
- Input Impedance: 20 kohms
- Input Sensitivity: 1.95 V (+8 dBu)
- Audio Signal Inputs: 2 x XLR (female), 1 x 3.5 mm AUX
- Audio Loop Thru: 1 x XLR (male)
- AC Current Draw: 0.8 A @ 230 V / 1.6 A @ 115 V
- Construction: Birch Plywood
- Finish: ISO-flex Paint
- Rigging: M8 Rigging Points
- Color: Black
- Dimensions (H x W x D): 19.1 x 11.2 x 10.2 in (485 x 285 x 260 mm)
- Net Weight: 26.2 lb (11.9 kg)
- Shipping Dimensions: 21.5 x 13.2 x 12.1 in (547 x 335 x 307 mm)
- Shipping Weight: 29.5 lb (13.4 kg)
What's In The Box
- 1 x DAS Action-508A Powered Loudspeaker
- 1 x Power Cable
