Compact 12" Powered Monitor for Versatile Stage & PA Applications
The
DAS Action-M512A is a high-performance active stage monitor designed for exceptional flexibility across live sound environments, from permanent installations to mobile PA systems. With a powerful 1000W peak amplifier and advanced DSP tuning, it provides clear, dynamic audio reproduction. Its rotatable horn allows the unit to function equally well as a wedge monitor or front-of-house PA speaker.
DAS Action-M512A Competitive Differences
- 1000W peak Class D amplifier for powerful, efficient performance
- Rotatable 80º x 50º horn enables use as a floor monitor or main PA speaker
- DAScontrolâ„¢ DSP with rear LCD interface for EQ presets, delay, gain, and input mixing
- Dual XLR inputs for mic and line level sources plus 3.5 mm aux input
- Premium birch plywood enclosure with ISO-flex paint for durability and superior sound
- 130 dB max SPL output for demanding stage use
DAS Action-M512A Description
The
Action-M512A delivers exceptional audio performance in a compact, road-worthy design ideal for stage monitoring and front-fill reinforcement. Built with the same premium-grade birch plywood found in DAS's touring systems, it provides a warm, natural tone unmatched in its class.

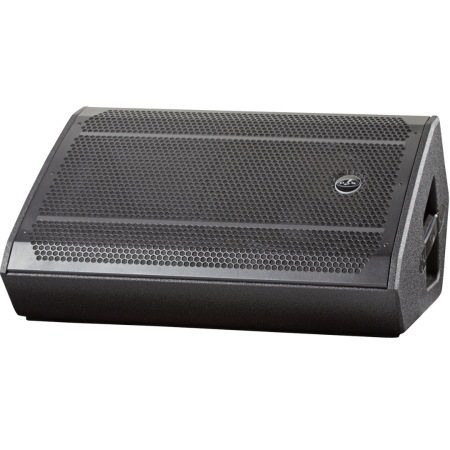

Equipped with a 12MI4 low-frequency transducer and an M-34 compression driver for highs, the system’s sound output remains punchy and articulate across the frequency spectrum. The 80º x 50º horn is rotatable, allowing for versatile positioning whether used horizontally as a floor monitor or vertically for front-of-house applications.
Thanks to its built-in Class D amplifier (1000W peak / 500W continuous), the Action-M512A is powerful and efficient. The integrated DAScontrolâ„¢ interface provides easy access to high-resolution DSP settings via a rear-panel LCD, allowing users to quickly configure EQ modes, delays, gain levels, and input mixing.

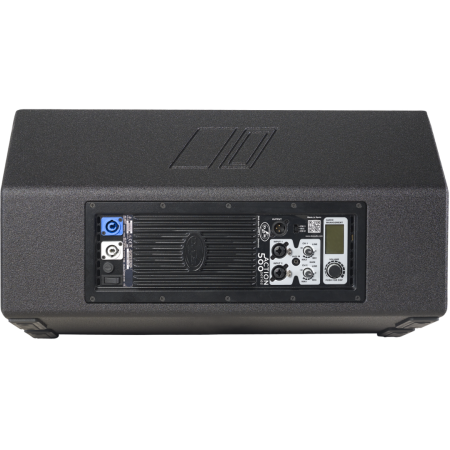

The speaker features dual XLR inputs for mic and line, a 3.5 mm aux input for media playback, and XLR loop-thru outputs. With a rugged ISO-flex finish and trapezoidal design, it’s built for professional use on the road or in fixed installs.
Action-M512A Features
- 12" powered 2-way monitor with rotatable horn
- 1000W peak Class D amplifier (500W continuous)
- DAScontrolâ„¢ 24-bit DSP with rear LCD display
- EQ presets, delay, gain control, signal source mixing
- Birch plywood enclosure with ISO-flex black paint
- Dual XLR mic/line inputs, 3.5 mm aux input
- XLR loop-thru outputs for signal distribution
- High-output design delivers up to 130 dB SPL
Action-M512A Specifications
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Horizontal Coverage: 80º
- Vertical Coverage: 50º
- Max Peak SPL: 130 dB
- Amplifier Power (Peak): 1000 W
- Amplifier Power (Continuous): 500 W
- Input Type: Balanced
- Input Impedance: 20 kohms
- Input Sensitivity: 1.95 V (+8 dBu)
- Inputs: 2 x XLR (female), 1 x 3.5 mm mini jack (aux)
- Loop Thru: 2 x XLR (male)
- AC Output: powerCON NAC3MPB
- Current Draw @ 230 V / 115 V: 1.1 A / 2.2 A
- Construction: Birch Plywood
- Finish: ISO-flex Paint
- Color: Black
- Dimensions (H x W x D): 13.2 x 25.6 x 17.7 in (335 x 650 x 450 mm)
- Net Weight: 43.0 lb (19.5 kg)
- Shipping Dimensions: 15.1 x 29.4 x 19.8 in (383 x 747 x 503 mm)
- Shipping Weight: 47.4 lb (21.5 kg)
What's In The Box
- 1 x DAS Action-M512A Active Monitor
- 1 x Power Cable
DAS ActionM512A
(DAS Action-M512A)
