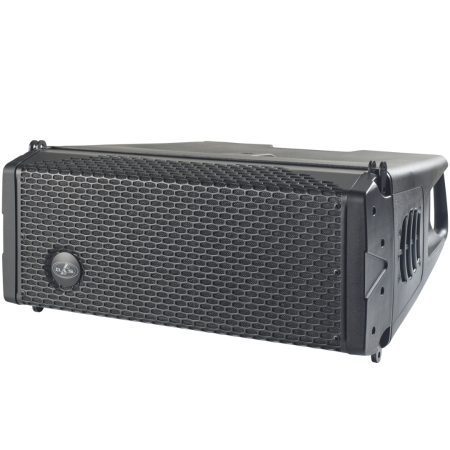

Ultra-Compact Powered Line Array Speaker for Installations & Rentals
The
DAS EVENT-26A is a high-performance, two-way powered line array system engineered for exceptional sound quality, portability, and ease of use. Designed for small to mid-size installations and rental applications, the EVENT-26A features a sleek, road-ready polypropylene cabinet with integrated rigging hardware, allowing seamless deployment in flown or ground-stacked configurations. With dual 6.5” transducers and a precision M-60 compression driver, this speaker delivers powerful output with crystal-clear audio and consistent 100º horizontal dispersion.
DAS EVENT-26A Competitive Differences
- Symmetrical “V” shaped dual 6.5" LF driver configuration ensures wide and even 100º horizontal coverage
- M-60 compression driver with waveguide offers precise vertical control and superior clarity
- 800W peak Class D amplifier with 24-bit DSP and FIR filtering for premium audio quality
- DAScontrol™ interface simplifies array configuration and preset selection
- FSSTM Fast Set Splay system enables angle selection during stacking, enhancing setup speed

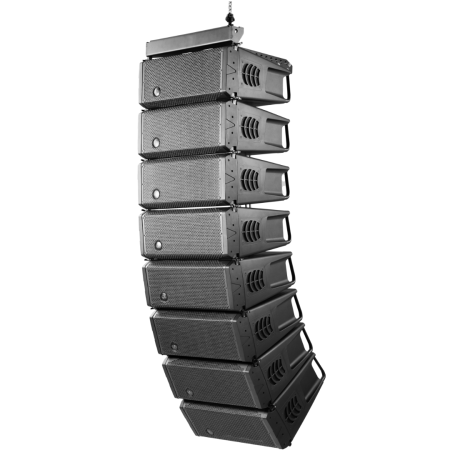

- Flown arrays of up to 16 units possible with 1º step rigging angles from 0º to 10º
- Compact and lightweight (only 36.4 lb) with rugged polypropylene construction
DAS EVENT-26A Description
The DAS EVENT-26A sets a new standard in compact powered line array systems with a powerful 800W peak output and advanced onboard DSP. Its symmetrical V-shaped design with dual 6.5” low-frequency drivers ensures broad and even horizontal coverage, while the integrated M-60 high-frequency compression driver delivers articulate highs and vocal clarity, making it perfect for live events, houses of worship, and corporate AV installations.
The built-in Class D amplifier offers efficient, high-output performance with minimal power draw. Advanced FIR filtering and a 24-bit DSP optimize phase alignment and sound transparency, significantly enhancing the audience's listening experience. The rugged, polypropylene enclosure is both lightweight and durable, ideal for portable and touring applications.

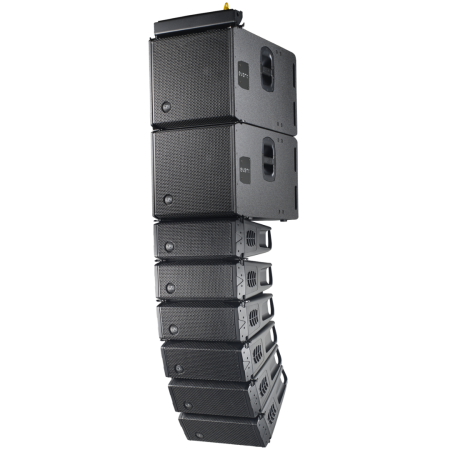

For added convenience, the DAScontrol™ interface allows users to easily configure arrays and apply presets based on the number of cabinets used. With Neutrik® XLR and powerCON connectors, along with the flexible FSSTM rigging system, the EVENT-26A simplifies setup and ensures secure mounting and alignment. Pair with the matching EVENT-115A subwoofer for extended low-frequency performance in full-range systems.
EVENT-26A Features
- Ultra-compact powered line array system
- Dual 6.5” LF transducers in symmetrical “V” configuration
- M-60 HF compression driver with advanced waveguide
- 800W peak / 400W continuous Class D amplifier
- Integrated 24-bit DSP with FIR filtering
- Easy preset selection via DAScontrol™ interface

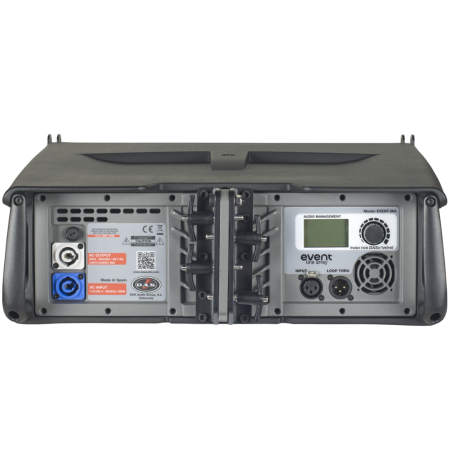

- Neutrik® XLR and powerCON connectors
- FSSTM rigging allows fast and precise angle adjustments (0º–10º in 1º steps)
- Flown array support for up to 16 units
EVENT-26A Specifications
- Frequency Range (-10 dB): 76 Hz – 19 kHz
- Horizontal Coverage: 100º
- Vertical Coverage: Splay dependent
- Max Peak SPL @ 1m: 131 dB
- Input Type: Balanced XLR
- Input Sensitivity: 6.2 V (+18 dBu)
- Input Impedance: 20 kΩ
- Amplifier Power: 400W continuous / 800W peak
- Power Supply: 115/230V auto-switching, 0.8 A/1.6 A draw
- Enclosure: Polypropylene with trapezoidal geometry
- Rigging: Captive FSSTM system, supports 0º–10º in 1º steps
- Dimensions (H x W x D): 8.9 x 18.9 x 19.1 in (225 x 480 x 500 mm)
- Net Weight: 36.4 lb (16.5 kg)
- Shipping Weight: 44.0 lb (20.0 kg)
- Carton Dimensions: 22.2 x 22.2 x 11.4 in (565 x 565 x 290 mm)
DAS EVENT26A
(DAS EVENT-26A)
