Wharfedale Pro WLA-28A-BL | Dual 8in - 132dB | Act...
$1,789.00

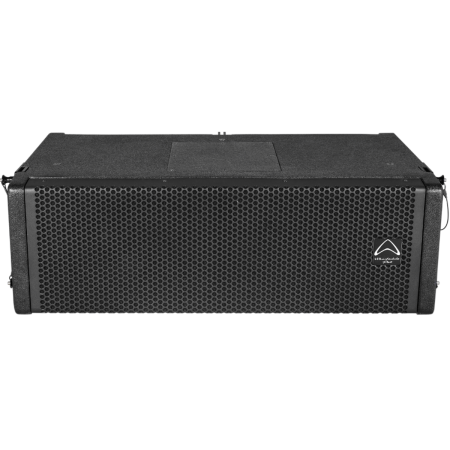

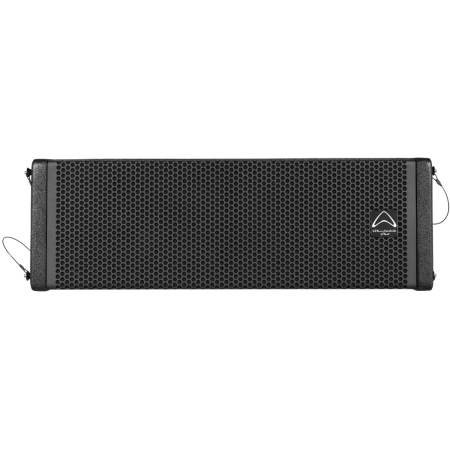

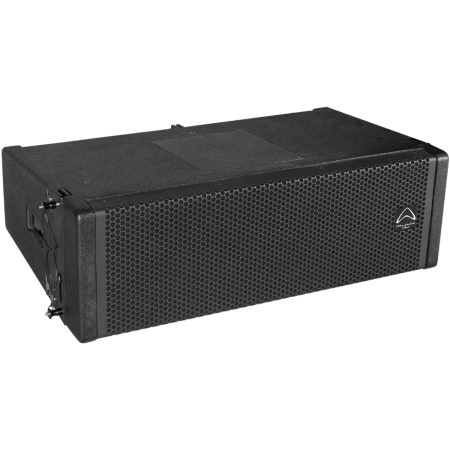

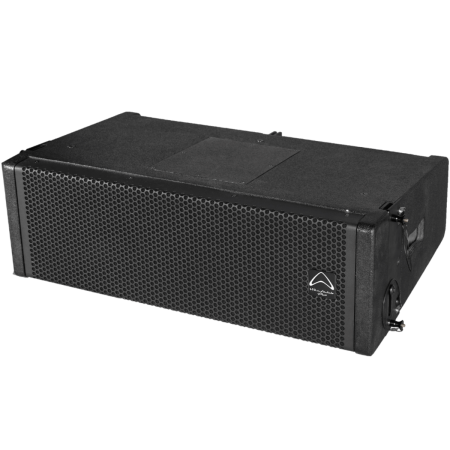

Wharfedale Pro WLA-28A-BL is a dual 8-inch active line array element designed for high-output sound reinforcement in touring systems, venues, houses of worship, and fixed installation environments. With onboard Class D amplification, DSP processing, FIR presets, and integrated rigging, it provides powerful, phase-coherent coverage in a compact birch plywood enclosure.
The Wharfedale Pro WLA-28A-BL is part of the WLA-28A active line array system, built for applications that require scalable output, precise control, and consistent coverage. Its 2-way configuration uses two 8-inch ferrite LF drivers and a 3-inch titanium diaphragm compression driver for strong low-mid projection and detailed high-frequency performance.
Powered by internal Class D amplification, the system delivers LF: 650W / HF: 100W continuous power and LF: 1300W / HF: 200W peak power. DSP-based processing with 8 resident FIR presets helps maintain accurate phase response, smooth frequency performance, and clear vocal and music reproduction across demanding live sound environments.

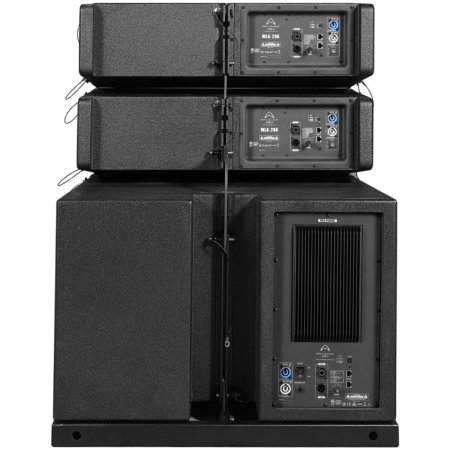

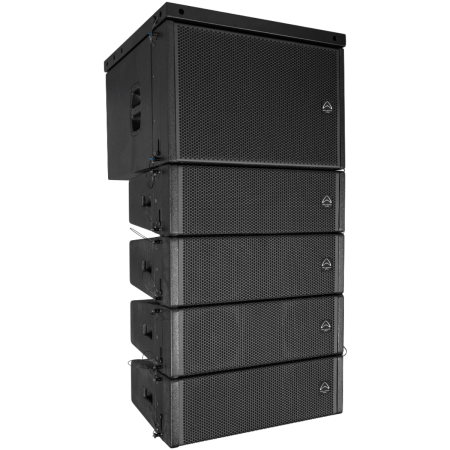

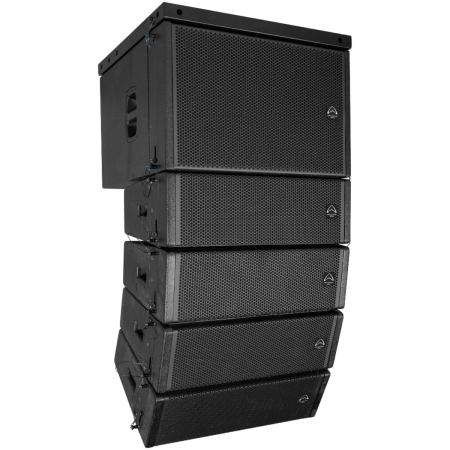

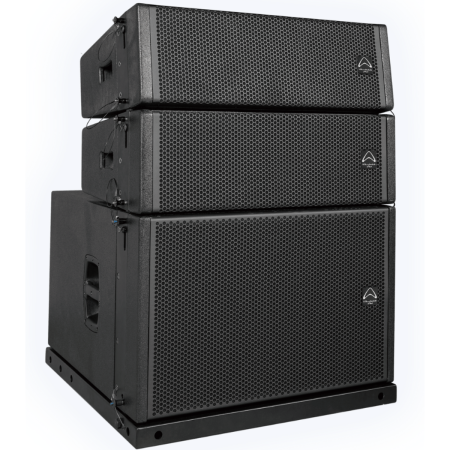

The enclosure is constructed from 15 mm / 18 mm birch plywood with a black Tough-Tone finish and steel grille, giving the WLA-28A-BL the durability needed for rental, touring, and permanent installation use. Integrated 3-point rigging supports flown deployment, while ground-stacked configurations are also supported as part of the larger WLA-28A system.

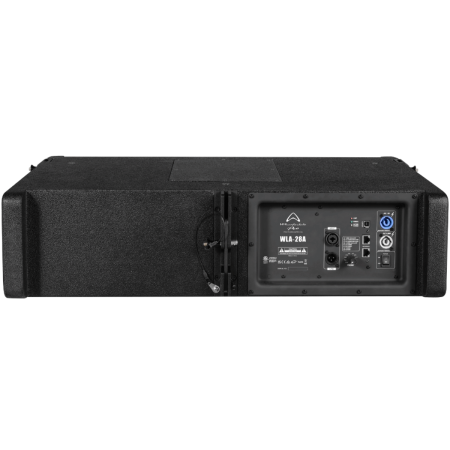

For system control and maintenance, the Wharfedale Pro WLA-28A-BL includes XLR combo input, XLR link output, USB Type B updates, RJ45 RS485 networking, powerCON AC input, and powerCON loop-through. It also includes independent LF/HF limiters, amplifier thermal protection, DC and short protection, and clear LED status indicators for reliable operation in the field.
| App Control | Remote control and tuning with Pro=Link software |
| Control Interfaces | Ethernet via RS485, USB Type B update port |
| Onboard DSP | Yes, with 8 FIR presets |
| Brand | Wharfedale Pro |
| Name | Wharfedale Pro WLA-28A-BL |
| Primary Category | Active Line Array Element |
| Build Material | Birch plywood enclosure with black Tough-Tone finish |
| Dimensions | Unpacked Front Height: 9.84 in, Unpacked Rear Height: 7.13 in, Unpacked Width Front: 29.92 in, Unpacked Width Rear: 29.92 in, Unpacked Depth: 18.24 in inches |
| Included Accessories | User manual, WLA-RH4 rain hood |
| Mounting Options | Flying, ground stacked with integrated 3-point rigging |
| Weight | 64.6 lb (29.3 kg) kg |
| Frequency Response | 60Hz - 20kHz +/-3dB Hz |
| IP Rating | None |
| Max SPL | 132dB dB |
| Power Rating | LF: 650W / HF: 100W continuous |
| Wattage | LF: 650W / HF: 100W continuous watts |
| Warranty Length | Not specified years |
