High-Powered Dual 8" Line Array for Install & Touring Applications
The

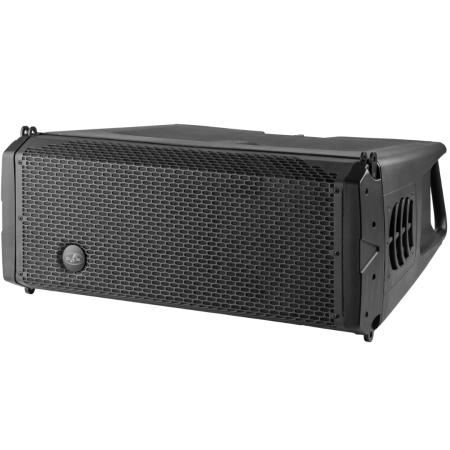

DAS EVENT-28A is a compact, symmetrical, two-way powered line array speaker system engineered for powerful, transparent sound in portable or installed setups. Designed with a rugged polypropylene enclosure and efficient Class D amplification, the EVENT-28A integrates dual 8” neodymium LF drivers and an M-60 compression driver to deliver a robust 133 dB SPL and 100º of horizontal coverage with remarkable clarity. Ideal for small to mid-size events, houses of worship, and corporate AV, the EVENT-28A combines portability, performance, and intelligent DSP control in a road-ready design.
DAS EVENT-28A Competitive Differences
- 1300W peak Class D bi-amplified power with 24-bit DSP and FIR filtering for precise audio reproduction
- Dual 8” neodymium LF transducers in a symmetrical “V” configuration for improved output and reduced cabinet weight
- M-60 compression driver with advanced waveguide for controlled vertical dispersion and excellent HF clarity
- DAScontrol™ interface for quick preset selection and array configuration
- Fast Set Splay (FSS™) rigging system allows quick deployment with angle adjustment in 1º increments (0º–10º)

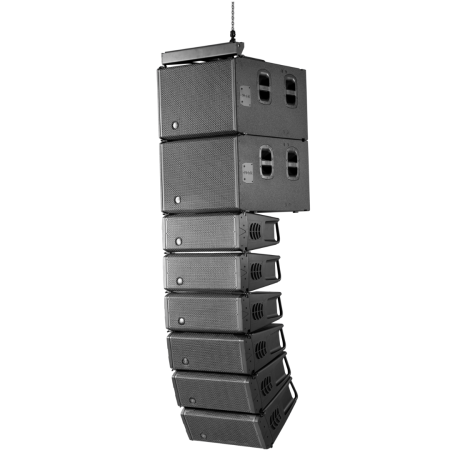

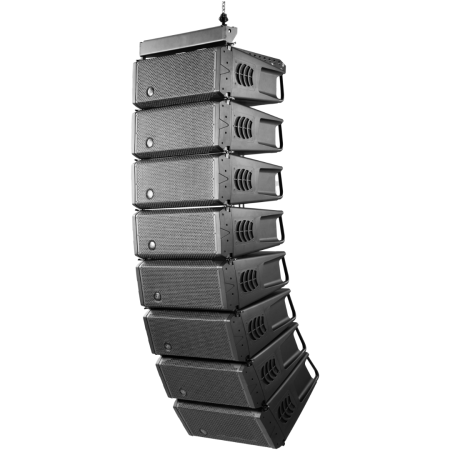

- Flown arrays of up to 16 units supported with integrated stainless-steel rigging hardware

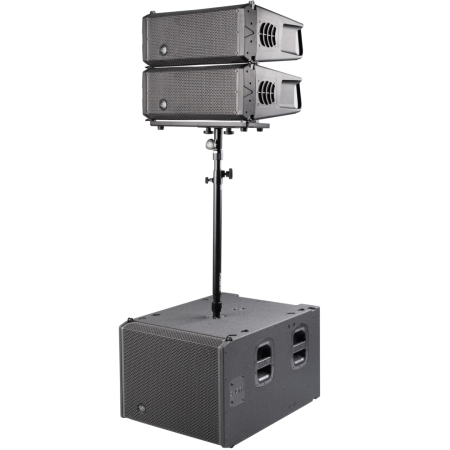

- Perfectly matched with the EVENT-118A subwoofer for low-frequency reinforcement
DAS EVENT-28A Description
The DAS EVENT-28A delivers uncompromising sound in a compact footprint, featuring high-efficiency Class D amplification with a total of 1300W peak power (1000W LF / 300W HF). Its dual 8” neodymium woofers provide extended low-frequency response, while the M-60 HF driver ensures crystal-clear highs. With a consistent 100º horizontal dispersion and splay-dependent vertical coverage, this speaker is ideal for applications requiring precise sound field control.

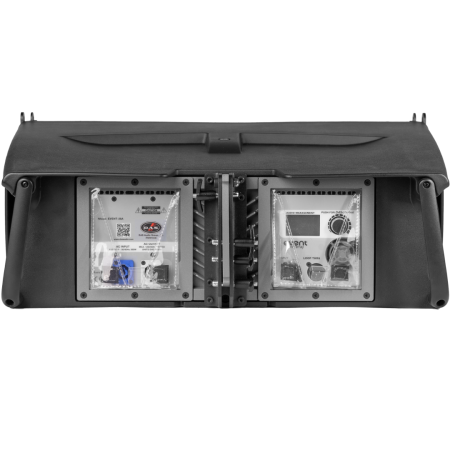

Internally, a powerful 24-bit DSP manages crossover, EQ, delay, and limiting. The integration of FIR filtering ensures linear phase response and improves intelligibility across all listening zones. The DAScontrol™ interface on the rear panel allows users to quickly select presets depending on array size and configuration.
Built for real-world use, the rugged polypropylene housing incorporates the proprietary Fast Set Splay (FSS™) rigging system, enabling quick stacking or flying with adjustable angles. At just 44.1 lbs, the EVENT-28A is easy to deploy and transport, while maintaining road-tough durability. Whether used alone or in conjunction with the EVENT-118A subwoofer, the EVENT-28A offers premium audio performance for portable PA or installed systems.
EVENT-28A Features
- Advanced dual 8” two-way powered line array system
- Compact polypropylene cabinet with road-ready durability
- 1300W peak Class D amplifier (1000W LF / 300W HF)
- 24-bit DSP with FIR filtering for optimized clarity and linear phase response
- DAScontrol™ interface for user-friendly array configuration
- 100º horizontal dispersion; vertical coverage based on splay angle
- FSS™ captive rigging system supports flown arrays of up to 16 units
- Neutrik® XLR audio and powerCON® AC connections
- Pairs seamlessly with the EVENT-118A flyable subwoofer
EVENT-28A Specifications
- Frequency Range (-10 dB): 70 Hz – 20 kHz
- Horizontal Coverage: 100º
- Vertical Coverage: Splay dependent (0º–10º, 1º steps)
- Max Peak SPL @ 1m: 133 dB
- Amplifier Power: 650W continuous / 1300W peak (1000W LF + 300W HF peak)
- Input Type: Balanced XLR
- Input Sensitivity: 6.2 V (+18 dBu)
- Input Impedance: 20 kΩ
- Recommended Signal Processing: Integral M26X DSP
- Power Supply: 115/230V auto-switching, 1.2 A / 2.4 A draw
- Enclosure: Polypropylene, trapezoidal design
- Rigging: Captive FSS™ system, stainless steel
- Dimensions (H x W x D): 11.0 x 25.0 x 20.7 in (280 x 635 x 525 mm)
- Net Weight: 44.1 lb (20.5 kg)
- Shipping Dimensions: 13.2 x 28.2 x 23.6 in (335 x 715 x 600 mm)
- Shipping Weight: 53.0 lb (24.0 kg)
DAS EVENT28A
(DAS EVENT-28A)
