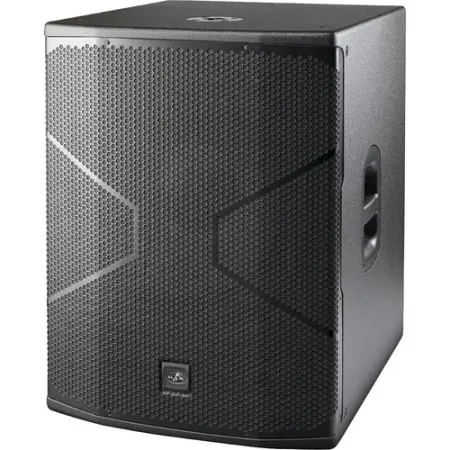

The D.A.S. Vantec 18A is a powered bass reflex subwoofer system designed to provide extended bass response to the Vantec full-range cabinets and is well suited for rental houses, bars, clubs, mobile DJs, or any pro audio application. The Vantec 18A utilizes a 2000W Class-D amplifier to power the D.A.S. 18LX woofer and provide a frequency response of 30 to 125 Hz with a peak SPL output of 134 dB.

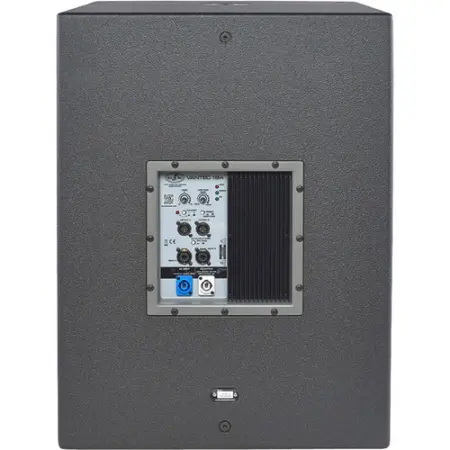

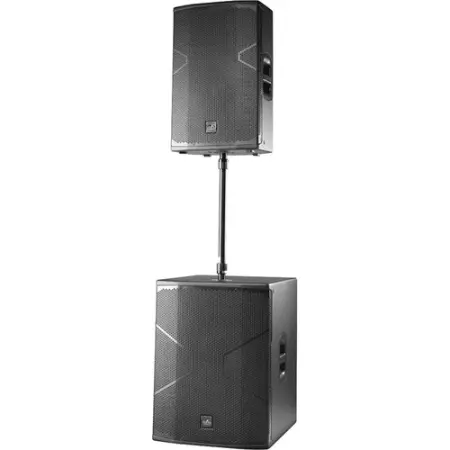

The birch plywood enclosure is finished with black ISO-flex paint and includes two handles for ease in transport. The rear panel offers two XLR inputs, two XLR loop-thru outputs, a level control, an 80 to 125 Hz low-pass filter control, and a dedicated switch for phase, as well as a satellite X-over HPF/thru switch. Additionally, there is a preset EQ with Deep/Loud presets. The top panel contains a pole mount socket for use with 35mm speaker poles for mounting full-range speakers. The D.A.S. Vantec 18A ships with a power cord.
FEATURES:
Powered subwoofer system
High-output 18″ loudspeaker
Voice Coil: 4"
Phase switch
HPF output defeat switch
Variable 80 to 125 Hz low-pass filter
Preset EQ: Deep and Loud
Gain control
SPECIFICATIONS:
PA Speaker
Configuration Active Subwoofer
Total Power Capacity 2000 W Peak
Amplifier Class Class-D
Performance
Frequency Range 30 Hz to 125 Hz -10 dB
Maximum SPL 134 dB
Input Sensitivity +12 dBu
I/O Impedance Input:
20 Kilohms
Connectivity
Audio I/O 2 x XLR 3-Pin Female Input
2 x XLR 3-Pin Male Thru/Output
Power
AC Input Power 115 VAC, 50 / 60 Hz
AC Power I/O 1 x powerCON Input
1 x powerCON Output
Current Consumption 3 A
Physical
Construction Material Plywood
Dimensions 28 x 21.3 x 25.6" / 71.1 x 54.1 x 65 cm
Weight 79.2 lb / 35.9 kg
D A S VANTEC-18A
(DAS Powered 18”, 1500 Wpeak, Class D, Biamplifed, ground-stacked Long Excursion Sub)
