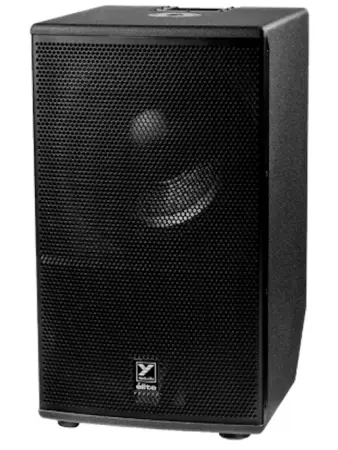

Elite Series - ES15P
15-inch - 1800 watts
The reputation of elite subwoofers is known industry wide. The next generation of élite subs will not disappoint.
Features:
Next Generation Rear Horn Loaded Powered Subwoofer Design
Class Leading Output and Bass Response
Astonishing Output for a 'Car Friendly' 15-inch Subwoofer
Custom Designed Long Excursion Cast Frame 15-inch Driver with 4-inch Voicecoil
Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
iOS and Android App for Added Subwoofer Control (Coming Soon)
Made in Canada
Specifications:
System Type Rear Horn Loaded Subwoofer
Active or Passive Active
Program Power (Watts) 1800 Watts (3600 Watts Peak)
Max SPL (dB) 138dB Peak (132dB Continuous)
Frequency Response (Hz +/- 3dB) 45 - 150 (Hz +/- 3dB)
LF Driver(s) 15-inch Cast Frame Woofer w/4-inch Voicecoil
LF Protection Thermal / Overcurrent (X-max) / Clip
Power Consumption (typ/max) 120V (5.5A / 6.9A), 230V (2.9A / 3.6A)
In / Out Connections 1 x XLR Input
1 x XLR Mono Blend Input
1 x ¼-inch Link Input
1 x ¼-inch Link Output
1 x XLR Link Output
Level Controls Master - Sub Level
LED Indicators Power, Activity, Protection (Clip, X-Max, Temp) &
Other Controls / Features Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
High Frequency Roll-off - 80Hz to 150 Hz
Wheels 2 x Rear tilt-back
Bar Handles 1 x (Top Rear Edge ), 1 x (Bo
Pole Mount Adapter (1 3/8"-3.5cm) 1 (Top) (1 3/8"-3.5cm)
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW, inches) 21 x 18 x 32
Dimensions (DWH xbackW, cm) 53.3 x 45.7 x 81.3
Weight (lbs/kg) 110 / 50
Yorkville Elite ES15P
(Yorkville ES-15P)
