Versatile 12-Inch Curved Source Line Array for Professional Sound Applications
The
D.A.S. Audio VANTEC-20A-W is a powerful active curved source line array system designed to deliver exceptional sound performance in a compact form. With a 1500W peak Class-D bi-amplified design, this speaker is perfect for corporate A/V events, mid-size sound reinforcement, and permanent installations. Its flexible design allows for use individually, stacked on a VANTEC-118A-W subwoofer, or flown in arrays of up to 5 units.
D.A.S. Audio VANTEC-20A-W Competitive Differences
- 1500W peak Class-D bi-amplified system for robust audio performance
- 12" DAS 12F4C woofer and dual M-60 compression drivers for wide frequency response (63 Hz - 20 kHz)
- Exclusive DAS Click-Lockâ„¢ rigging hardware for quick and secure deployment
- Selectable high-pass filter presets for seamless integration with VANTEC-18A and VANTEC-118A-W subwoofers
- DAScontrolâ„¢ interface for easy setup and throw compensation adjustments
- DASlinkâ„¢ app for wireless streaming and remote control of system functions
- Variable angle pole mount allows for precise aiming with +/- 13.5° tilt
- Durable Baltic birch plywood enclosure with ISO-flex coating for long-lasting performance
D.A.S. Audio VANTEC-20A-W Description
The
D.A.S. Audio VANTEC-20A-W is built for flexibility and high-quality sound, making it ideal for a variety of professional applications where large line arrays are not required. Its powerful 1500W peak Class-D amplifier drives a 12-inch DAS 12F4C woofer and two M-60 compression drivers, delivering a frequency range of 63 Hz to 20 kHz. The bi-amplified design ensures precise audio reproduction, while advanced FIR filters provide a linear phase response for superior clarity and detail.
With the intuitive
DAScontrol™ interface, users can configure system presets, throw compensation, and array size with ease. The VANTEC-20A-W can be used individually or in arrays of up to 5 units, making it suitable for venues that don't require the power of large line arrays. The variable angle pole mount enables precise adjustments of up to +/- 13.5°, ensuring optimal coverage in any setup. When used as a standalone unit, the
DASlinkâ„¢ app allows for high-definition music streaming and remote control over essential settings.
The VANTEC-20A-W’s enclosure is constructed from durable Baltic birch plywood and finished with ISO-flex coating for enhanced protection, even in demanding environments. Its compact design, combined with easy rigging options and robust performance, makes it a reliable choice for sound professionals.
VANTEC-20A-W Features
- 12" DAS 12F4C woofer and 2 x M-60 compression drivers for detailed sound
- 1500W peak Class-D bi-amplified design (750W continuous)
- Advanced FIR filters for accurate phase response
- DAScontrolâ„¢ with presets and DSP configuration options
- DASlinkâ„¢ app for wireless streaming and remote adjustments
- +/- 13.5° variable tilt pole mount for precise coverage
- ISO-flex finish for enhanced durability and resistance to wear
- Balanced XLR input and loop-thru connections for easy integration
VANTEC-20A-W Specifications
- Configuration: Active Curved Source Line Array
- Total Power Capacity: 1500W Peak (Class-D Bi-amplified)
- Frequency Range (-10 dB): 63 Hz – 20 kHz
- Rated Peak SPL: 135 dB
- Dispersion: 90° Horizontal x 15° Vertical
- Input Sensitivity: 3 V (+12 dBu)
- Input Impedance: 20 kΩ Balanced
- Audio Inputs:
- 1 x XLR 3-Pin Female Input
- 1 x XLR 3-Pin Male Loop Thru Output
- Power Requirements: 115/230 VAC, 50/60 Hz
- Power Draw: 3.0 A (115 V) / 1.5 A (230 V)
- Enclosure: Baltic Birch Plywood with ISO-flex Finish
- Dimensions (H x W x D): 13.2 x 24.6 x 17.3 in (335 x 625 x 440 mm)
- Weight: 62.8 lb (28.5 kg)
- Shipping Dimensions: 19.3 x 28.7 x 19.3 in (490 x 730 x 490 mm)
- Shipping Weight: 63.8 lb (29.0 kg)
What's In The Box
- D.A.S. Audio VANTEC-20A-W Active Curved Source Line Array Module
- powerCON Power Cord
- Limited 2-Year Warranty
- User Manual

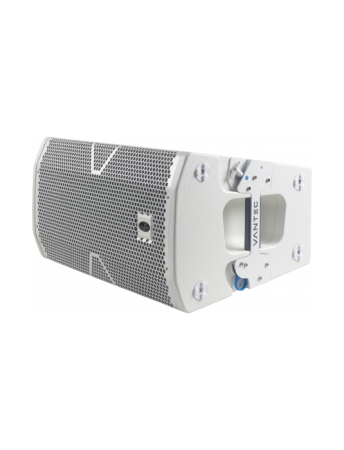

DAS Audio VANTEC-20A White
(DAS VANTEC-20A (White))
