dB Tech Opera Unica 15

dBTechnologies’ flagship active loudspeaker turns into the most complete professional system thanks to networkable capability and complete EQ control via Aurora Net control software.

OPERA’s potential grows even further with OPERA UNICA: 2 brand new models (12” and 15”) featuring CLASS D DIGIPRO G3 amp module delivering up to 1800 W peak and neodymium woofers.

What makes OPERA UNICA series “unique” in dBTechnologies’ active loudspeaker range is its networkable capability via Aurora Net control software (available in free download at dBTechnologies website), using the integrated RDNet ports, allowing a complete EQ,delay and processing customization and real time monitoring of the PA system in use.

Opera’s distinctive asymmetrical acoustic design of the HF horn ensures optimized coverage. Furthermore, sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.

The perfect features’ mix making OPERA UNICA ready for the most demanding professional users.

Specifications:
Technical Data
Speaker Type2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]57 - 20.000 Hz
Frequency Response [- 6dB]61 - 20.000 Hz
Max SPL133 dB
HF1" Exit, 1.75 v.c.
Horizontal Directivity100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
HornAsymmetrical Horn
LF15", 3" v.c.
Amplifier
Amp TechnologyClass D DigiproG3
RMS Power900 W
Peak Power1800 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
ControlsRotary Encoder (8 Presets)
1x Input Sensitivity
1x Power ON led
1x Signal led
1x Limiter Led
1x Status Led
CrossOver Frequency1600 Hz
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Delay Option58.6 ms max (via RD Net)

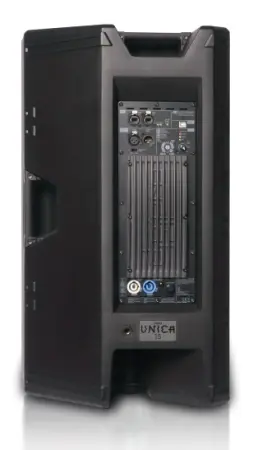

Input
Signal Input1x XLR Female
1x USB (data service)
Signal Output1x XLR Male
Mechanics
HousingPolyporpylene PP
Handles1 on left Side, 1 on Top
Rigging Points2XM10 on Top + 1x M10 on Back
Pole MountD36 mm

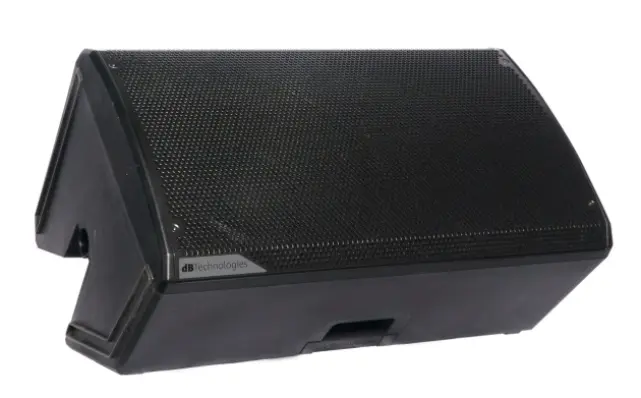

Angles upMonitor use 45°
Width420 mm (16.54 in)
Height722 mm (28.43 in)
Depth419 mm (16.50 in)
Weight18.2 kg (40.12 lbs)

dB Technologies OperaUnica 15 (dB Tech OperaUnica15)
