DBX ZC-9

Rotary Source Selector for ZonePRO Audio Systems

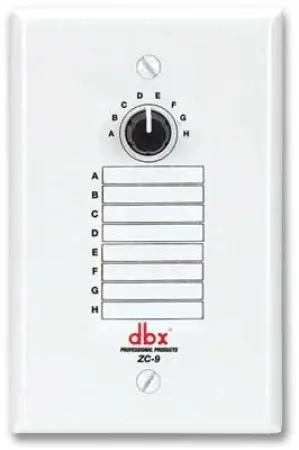

The dbx ZC-9 is a rotary switch remote controller designed for seamless source selection with the ZonePRO 1260 and 1261 processors. It provides a clean and efficient way to manage audio zones using standard CAT5 cable and RJ-45 connectors—perfect for commercial audio installations requiring straightforward, long-distance control solutions.

dbx ZC-9 Competitive Differences

• Rotary switch source selection – Intuitive control for selecting input sources in zoned audio systems
• Plug-and-play CAT5 connectivity – Simple and affordable installation using RJ-45 connectors
• Long-distance operation – Control devices up to 1000 feet away
• DIP switch identification – Easy setup for unique device addressing
• Compatible with ZonePRO 1260/1261 – Tailored integration for commercial installations

dbx ZC-9 Description

The dbx ZC-9 offers flexible and reliable control for the ZonePRO 1260 and 1261 by allowing users to select audio sources through a rotary dial interface. Designed with installers and contractors in mind, the ZC-9 connects using standard CAT5 or CAT5E cable with RJ-45 connectors, making setup fast and cost-effective. The controller communicates via analog DC voltage and supports wiring distances up to 1000 feet, enabling remote control from virtually anywhere in a commercial venue. DIP switch addressing provides straightforward configuration, and support for both series and parallel wiring options allows for scalable multi-zone installations.

ZC-9 Features

• Rotary switch source selector for ZonePRO 1260 and 1261
• Easy RJ-45 connectivity over standard CAT5/CAT5E cable
• DIP switch identification for unique device setup
• Supports long cable runs up to 1000 feet (305 meters)
• Compatible with dbx DriveRack® and ZonePRO™ systems

ZC-9 Specifications

• Connectors: (2) RJ-45
• Series Wiring Max Length: Varies by controller count (e.g., 3 controllers: 600 ft; 6 controllers: 300 ft)
• Parallel Wiring with ZC-BOB: Up to 6 controllers supported at 1000 ft
• Parallel Cable Type: CAT5 or CAT5E (28.6 Ω/M nominal DCR, rated VW-1 or higher)
• Certifications: UL 60065, IEC 60065, EN 55013, E60065

dbx ZC9 (DBX ZC 9)
