Defender Office DEF-85160

Defender Office DEF-85160 Competitive Differences

• Four separate mini channels accommodate multiple power, audio, data, or communication cables
• Low 0.79-inch profile is designed for indoor pedestrian traffic
• Durable TPU construction resists oil, petrol, and solvents during short-term contact
• Abrasive surface texture helps provide traction under foot traffic
• Supports a maximum load of 0.4 metric tons over a 20 x 20cm area
• Zigzag connection design supports attachment to compatible Defender Office sections
• Integrated bolt holes allow optional ground fixing
• Cutting guides support length adjustment within customized cable-routing layouts

Defender Office DEF-85160 Description

The Defender Office DEF-85160 provides a clean and organized way to route cables across indoor pedestrian areas. Its rounded, low-profile design helps create a smoother transition over protected cables while reducing the risk of trips caused by loose wiring.

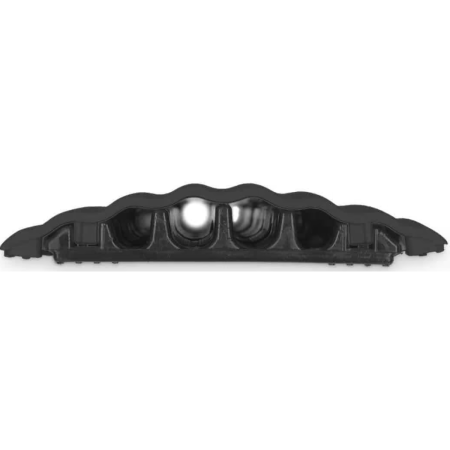

Four internal cable channels provide separate paths for compatible power, signal, network, or communication cables. The available channel dimensions include 10 x 10mm and 12 x 12mm, allowing different cable sizes to be managed within the same protector.

The molded thermoplastic polyurethane construction has a hardness rating of approximately 88 Shore A and provides short-term resistance to oil, petrol, and solvents. Its abrasive surface structure helps improve traction, making it practical for offices, conference rooms, exhibits, retail spaces, and other public indoor environments.

The Defender Office system supports straight sections, 90° sections, and end ramps for adaptable cable layouts. Zigzag connectors, cutting guides, and ground-fixing holes provide additional installation flexibility for temporary or more permanent routing applications.

DEF-85160 Features

• Four-channel indoor cable duct
• Designed for offices, exhibitions, retail spaces, shopping malls, conference facilities, and public buildings
• Low-profile rounded design
• Black body and lid
• Abrasive surface structure
• TPU thermoplastic polyurethane construction
• Zigzag connection system
• Bolt holes for optional ground fixing
• Cutting guides for length adjustment
• Short-term resistance to oil, petrol, and solvents
• Suitable for ambient temperatures from -30° to 60°C
• Compatible with Defender Office straight, corner, and end-ramp system components

DEF-85160 Specifications

• Product Type: Four-channel indoor cable duct
• Series: Defender Office
• Color: Black
• Lid Color: Black
• Material: TPU thermoplastic polyurethane
• Shape: Round
• Surface Structure: Abrasive
• Number of Cable Channels: 4
• Cable Channel Sizes: 10 x 10mm and 12 x 12mm
• Maximum Load: 0.4 metric tons over a 20 x 20cm area
• Hardness: 88 Shore A, ±4
• Chemical Resistance: Oil, petrol, and solvents during short-term contact
• Operating Temperature: -22° to 140°F (-30° to 60°C)
• Flammability Rating: UL 94 V-2 and HB
• Fire Protection Class: DIN 4102-1 B2
• Fire Protection Class: EN 13501-1 E
• Compliance: CP65 and TSCA
• Dimensions: 34.06 x 4.92 x 0.79 in
• Metric Dimensions: Approximately 865 x 125 x 20mm
• Weight: 2.76 lb (1.25 kg)

What's In The Box

• Defender Office DEF-85160 four-channel cable duct
