Defender Office DEF-85161

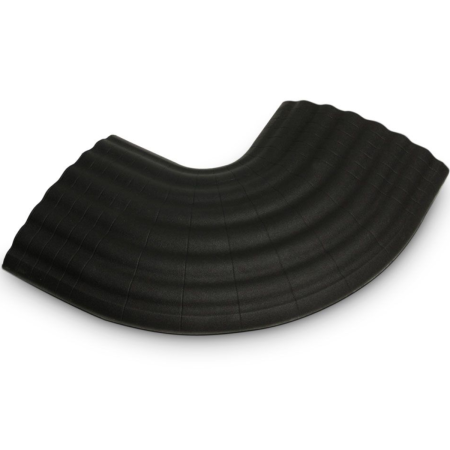

90° Indoor Cable Duct Curve

The Defender Office DEF-85161 is a four-channel 90° cable duct curve designed for changing cable direction within a Defender Office routing system. Its compact, low-profile construction supports professional cable management in offices, conference rooms, exhibitions, retail spaces, and trade show booths.

Defender Office DEF-85161 Competitive Differences

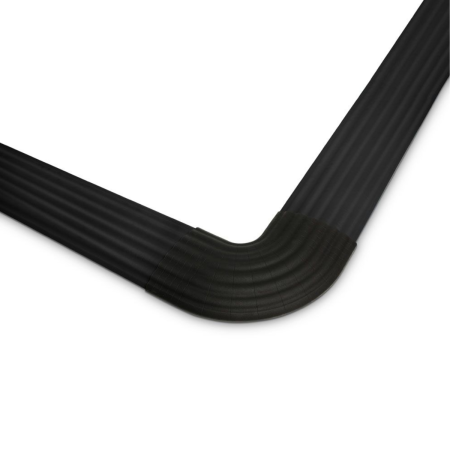

• 90° curved design routes cables cleanly around corners
• Four separate mini channels accommodate multiple power, audio, data, or communication cables

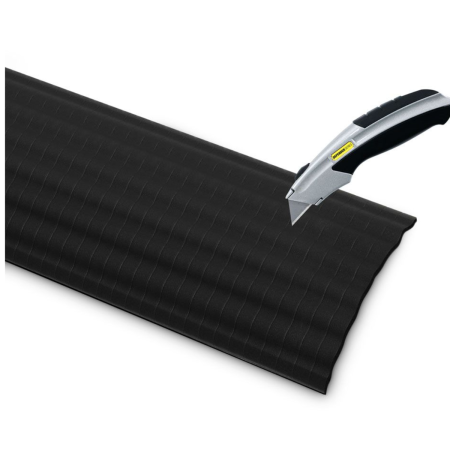

• Can be cut and adapted to suit custom cable-routing layouts
• Pre-drilled holes allow secure screw-down installation
• Smooth underside supports adhesive installation when appropriate
• Durable TPU construction resists oil, petrol, and solvents during short-term contact
• Abrasive surface texture helps provide traction for pedestrian traffic
• Supports a maximum load of 0.4 metric tons over a 20 x 20cm area

Defender Office DEF-85161 Description

The Defender Office DEF-85161 provides a practical way to route cables through a 90° turn while maintaining the low-profile appearance of the Defender Office system. It is designed for professional indoor environments where exposed cables need to be organized and protected without creating unnecessary obstruction.

Four internal channels provide separate paths for compatible power, signal, network, or communication cables. Channel sizes of 10 x 10mm and 12 x 12mm allow different cable diameters to be routed through the same corner section.

The molded thermoplastic polyurethane construction has a hardness rating of approximately 88 Shore A and offers short-term resistance to oil, petrol, and solvents. Its rounded shape and abrasive surface help create a smoother, more secure transition for foot traffic.

The 90° curve can be adapted to individual routing requirements. Pre-drilled holes allow the section to be screwed into place, while the smooth underside can also support adhesive mounting on compatible surfaces.

DEF-85161 Features

• 90° curved cable duct section
• Four internal cable channels
• Designed for the Defender Office cable protection system
• Suitable for offices, conference rooms, exhibitions, and trade show booths
• Low-profile rounded design
• Black body and lid
• Abrasive surface structure
• TPU thermoplastic polyurethane construction
• Can be cut for custom routing requirements
• Pre-drilled holes for screw-down installation
• Smooth underside supports adhesive mounting
• Short-term resistance to oil, petrol, and solvents
• Suitable for ambient temperatures from -30° to 60°C

DEF-85161 Specifications

• Product Type: Four-channel 90° cable duct curve
• Series: Defender Office
• Curve Angle: 90°
• Color: Black
• Lid Color: Black
• Material: TPU thermoplastic polyurethane
• Shape: Round
• Surface Structure: Abrasive
• Number of Cable Channels: 4
• Cable Channel Sizes: 10 x 10mm and 12 x 12mm
• Maximum Load: 0.4 metric tons over a 20 x 20cm area
• Hardness: 88 Shore A, ±4
• Chemical Resistance: Oil, petrol, and solvents during short-term contact
• Operating Temperature: -22° to 140°F (-30° to 60°C)
• Flammability Rating: UL 94 V-2 and HB
• Fire Protection Class: DIN 4102-1 B2
• Fire Protection Class: EN 13501-1 E
• Compliance: CP65 and TSCA
• Dimensions: 8.27 x 8.27 x 0.79 in
• Metric Dimensions: Approximately 210 x 210 x 20mm
• Weight: 0.44 lb (0.20 kg)

What's In The Box

• Defender Office DEF-85161 90° cable duct curve
