This product has been discontinued by the manufacturer. Please contact us to find a replacement.

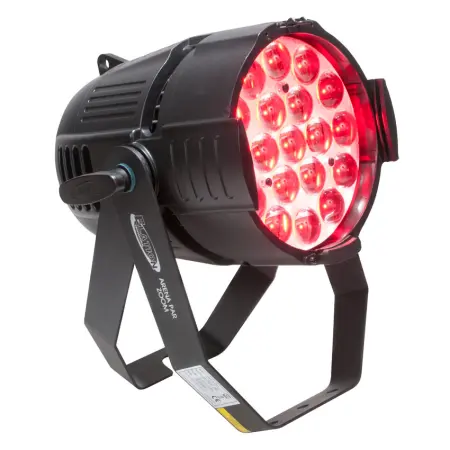

Elation Arena Par Zoom
The new Arena Par Zoom features (19) 10W QUAD Color LEDs from Osram™, 10° to 60° motorized zoom, variable strobe macros, selectable dimming curves, flicker free operation for TV and FILM, 3 and 5pin in/out DMX and powerCON in/out connections, 4 button touch control panel, integrated dual rigging yoke / floor stand, linkable power for up to 4 units at 120V and up to 8 units at 230V, 220W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
1000-Watt Comparable Lumens Output
Motorized 10° - 60° Zoom
Selectable Dimming Curves
Flicker Free Operation for TV and FILM
SOURCE
19x 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
12,600 LUX @3M 10° Min Zoom
900 LUX @3M 60° Max Zoom
EFFECTS
Strobe + Variable Strobe Macros
Electronic Dimming: 0% - 100%
COLOR
RGBW
CONTROL / CONNECTIONS
3 DMX Channel Modes (5/6/8)
3pin & 5pin DMX In/Out
4 Button Control Panel
LCD Menu Display
powerCON Power In/Out
Power Link Up To (4) Units at 120V (8) Units at 230V
SIZE / WEIGHT
Length: 12.8” (324mm)
Width: 10.9” (276mm)
Vertical Height: 14.5” (368mm)
Weight: 15.9 lbs. (7.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
220W Max Power Consumption
-4°F (-20°C) to 104°F (40°C)
APPROVALS / RATINGS
CE Approved
cETLus Pending
IP20 Rated
