Elation DR-Pro Rack
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

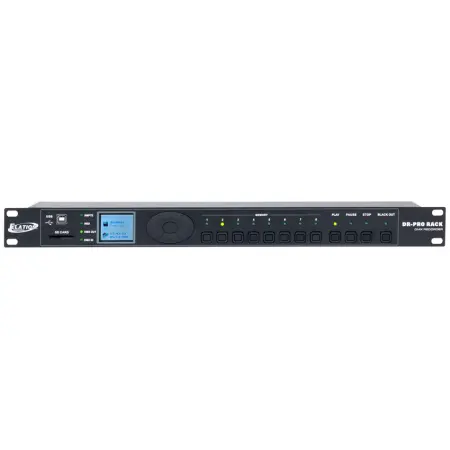

Elation Lighting DR-Pro Rack
Features
- Standard DMX-512 (1990), DMX Recorder / Playback device
- Up to 8 memories consisting of Static Scenes, Chases or Shows can be recorded and triggered
- 5 operation modes include Manual control, Real-time trigger, SMPTE/MIDI time code trigger, DMX trigger and DMX monitor
- Over 5 hours recording time
- 4 record modes include, Manual, Auto, Semi-Auto and Smart
- Individual cue Fade/Hold time setting for every Chase step
- Password lock function
- 3pin XLR DMX male/female connectors
- SD card port & USB port for data memory and firmware upgrade
- 3pin XLR, SMPTE port
- 5pin standard MIDI input
- Ports available for external contact trigger
- 128x160 character color LCD display
Technical Specification
- 9~12VDC, 500mA Min. Power supply (Included)
- 3-pin XLR connectors for DMX in/out, USB port for communicating with PC, 3pin SMPTE input, 5pin MIDI input and 12 phoenix connectors for dry contact closure triggering
- IP20 (Ingress Protection)
- -10 degC to +50 degC -20 operating temperature
- -20 degC to +70 degC storage temperature
- Dimensions (LxWxH): 19” x 3.07” x 1.73” (482 x 78 x 44 mm)
- Weight: 2.7lbs. (1.2kg)
