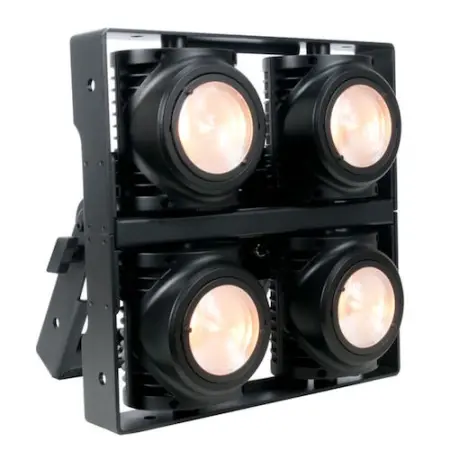

Elation DTW Blinder 700 IP
$2,274.00
The IP65 rated DTW Blinder 700 IPâ„¢ features (4) high powered 175W 2-in-1 Warm White/Amber COB LEDs, a wide 78° beam angle, full color temperature range control plus independent Dim-to-Warm channel control (1,800K - 3,200K), easily attachable 25° narrow beam filters (included), pixel control, manual adjustable pan focus, variable dimming curve modes, strobe effects, flicker free operation for TV and Film, RDM (Remote Device Management), IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, integrated yoke and side mounting brackets, and a multi-voltage universal auto switching power supply (100-250v).
Features:
IP65 Rated
Pixel Control
78° Wide Beam Angle
25° Narrow Beam Filters (included)
Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
RDM (Remote Device Management)
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Specifications:
SOURCE
(4) 175W 2-in-1 Warm White/Amber COB LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
10,360 LUX 962 FC (78° Beam @ 3.3 ft / 1m)
49,020 LUX 4,554 FC (25° Beam @ 3.3 ft / 1m)
EFFECTS
Strobe
Independent Dimming of Each COB LED Module
Variable Dimming Curves
Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
CONTROL / CONNECTIONS
Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated DMX and Power In/Out
SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 9.5" (241mm)
Horizontal Height: 16.1" (410mm)
Weight: 28.0 lbs. (12.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
680W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ACCESSORIES
(1) Power Cable
(4) 25° Narrow Beam Filters
| Beam Angle | 78° wide, 25° narrow (filters included) degrees |
| IP Rating | IP65 |
| LED Type | 4 high powered 175W 2-in-1 Warm White/Amber COB LEDs |
| Lumen Output | 10,360 LUX (78° beam), 49,020 LUX (25° beam) lux |
| Power Consumption | 680W Max W |
| Voltage Range | 100-240V AC, 50/60Hz V |
| Wattage | 680W Max Power Consumption W |
| Brand | Elation |
| Name | Elation DTW Blinder 700 IP |
| CE Certified | Yes |
| ETL Listed | cETLus |
| RoHS Compliant | Yes |
| Warranty Length | Not specified years |
| Control Interfaces | 4 Button Control Panel, LCD Menu Display, RDM |
| Dimensions | 15.7" (L) x 9.5" (W) x 16.1" (H) inches |
| Included Accessories | 1 Power Cable, 4 25° Narrow Beam Filters |
| Mounting Options | Integrated yoke and side mounting brackets |
| Weight | 28.0 lbs (12.7 kg) lbs |
