This product has been discontinued by the manufacturer. Please contact us to find a replacement.

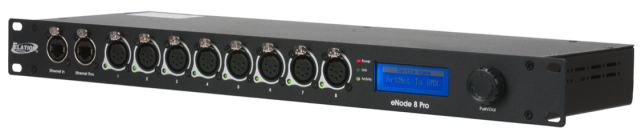

Elation Lighting eNode 8 Pro (Elation e-Node 8 Pro)
FEATURES
(8) Universal DMX Ports (can be set as Input or Output)
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Auto MDI/MDIX, DMX-512, and ArtNet Support
ArtNet - DMX Bilateral Signal Conversion
DMX Splitter Function (1Input / 3 Outputs or 1A Input / 3A Outputs and 1B Input / 3B Outputs)
LCD Display & LED Indicators
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode
CONTROL / CONNECTIONS
(8) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
SIZE / WEIGHT
Length: 19.0” (482mm)
Width: 6.3” (160mm)
Vertical Height: 1.7” (44mm)
Weight: 4.6 lbs. (2.1kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
7W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)
APPROVALS / RATINGS
INSTALLATION
Any Flat Surface Or Standard 19” (482mm) Rack Mount
INCLUDED ITEMS
(1) 5 ft (1.5m) powerCON Cable
(2) EtherCON Cable Connector Carrier
