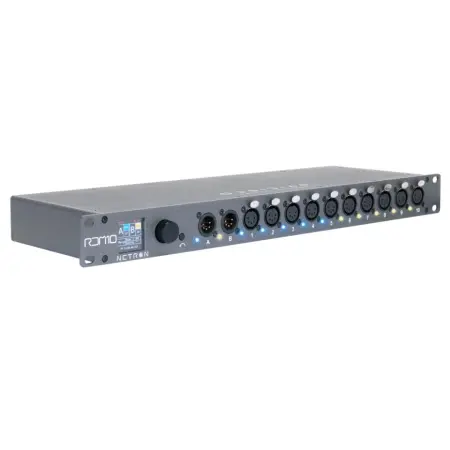

Obsidian RDM 10
$960.00
The Netron RDM 10 is a universal dual input RDM splitter with an advanced feature set to cover a wide variety of applications. Its combination of a high density ten-port AB splitter with a two port EtherDMX node, DMX cue recording plus contact closures for preset and cue recall make this a truly universal tool for installations and production environments.
Features:
10 assignable DMX outputs
Integrated 2 Universe Artnet/sACN node
Configurable DMX refresh rate
Dual DMX Inputs for backup and signal loss options
Remote configuration via internal webpage
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Contact closures for cue or preset recall
Powder-coated aluminum rackmount housing
Specifications:
MOUNTING
Rackmount
CONNECTIONS
Front
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button
Back
(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
PHYSICAL
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz
POE 802.3af
INCLUDED ITEMS
1.5m Locking power cable (EU or US version)
| Brand | Obsidian |
| Name | Obsidian RDM 10 |
| Primary Category | RDM splitter |
| Connectivity Protocols | DMX, RDM, Artnet, sACN, EtherDMX |
| Power Consumption | 100-240 V nominal, 50/60 Hz, POE 802.3af watts |
| Control Interfaces | 1.8” OLED Display with rotary knob, Remote configuration via internal webpage |
| Depth | 482.5 mm |
| Dimensions | 482.5 mm x 146 mm x 44 mm mm |
| Height | 44 mm |
| Included Accessories | 1.5m Locking power cable (EU or US version) |
| Mounting Options | Rackmount |
| Weight | 1.82 kg kg |
| Width | 146 mm |
