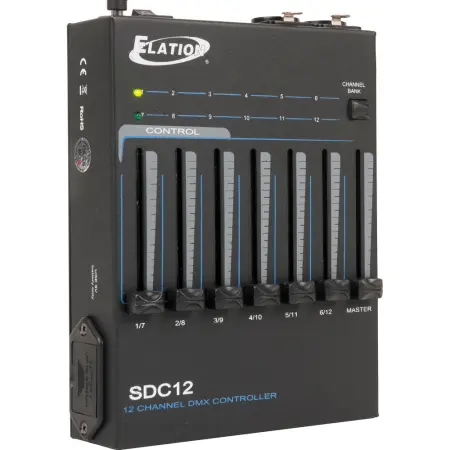

ADJ SDC12

12-Channel DMX Controller with Master Dimmer & 3/5-Pin Outputs

$132.00 Available
$0 Tax $10 Back or Join VIP for upfront discounts.

(more)

Compact DMX Controller for Simple Lighting Control

The American DJ SDC12 is a compact, user-friendly 12-channel DMX controller ideal for small lighting setups, architectural installations, or mobile entertainers who need basic DMX control. Its lightweight, wall-mountable or handheld design makes it versatile, while dual power options offer added convenience for fixed or portable use.

American DJ SDC12 Competitive Differences

  • 12 DMX channel faders with individual control
  • Master dimmer fader for overall brightness adjustment
  • Dual power operation: 12V DC power supply (included) or 9V battery (not included)
  • 3-pin and 5-pin DMX outputs for compatibility with all DMX gear
  • Compact, lightweight design – perfect for wall mount or handheld use
  • DIP switches for setting starting DMX address without software

American DJ SDC12 Description

The American DJ SDC12 is designed for users who need basic, no-frills control of DMX lighting fixtures. With 12 individual faders, the SDC12 gives you quick access to channel control, while the master dimmer fader allows you to adjust all channels simultaneously. Whether mounted on a wall in a permanent installation or held in hand for mobile use, the SDC12 offers reliable control in a compact and rugged enclosure. Ideal for applications where software or large controllers are overkill, the SDC12’s manual DIP switches make it easy to set your starting DMX channel, and the clear LED bank indicator shows you which set of channels you're operating. The inclusion of both 3-pin and 5-pin XLR DMX outputs ensures full compatibility with various lighting systems. Power it through the included 12V adapter or a standard 9V battery for true portability.

SDC12 Features

  • 12 individual DMX channel faders
  • Master dimmer fader for overall control
  • Portable handheld design or wall-mountable
  • DIP switches for setting DMX starting channel
  • 3-pin and 5-pin DMX output connections
  • On/off power switch
  • LED channel bank indicator
  • Compatible with any standard DMX-controlled lighting fixtures

SDC12 Specifications

  • Power: 12V DC, 500mA minimum (included) or 9V battery (not included)
  • DMX outputs: 3-pin and 5-pin XLR
  • Certifications: CE approved, RoHS compliant
  • Length: 7.5 in. (191mm)
  • Width: 5.9 in. (149mm)
  • Height: 1.6 in. (41mm)
  • Weight: 2.0 lbs. (0.9 kg)

What's In The Box

  • American DJ SDC12 DMX Controller
  • 12V DC Power Supply

American DJ SD-C12 (ADJ SDC-12)

Brand American DJ
Name American DJ SDC12 | 12-Channel DMX Controller with Master Dimmer & 3/5-Pin Outputs
Primary Category DMX Controller

CE Certified Yes
RoHS Compliant Yes

Channels 12

Connectivity Protocols 3-pin and 5-pin DMX outputs
Power Consumption 12V DC, 500mA minimum W
Voltage Range 12V DC or 9V battery V

Control Interfaces 12 individual DMX channel faders, master dimmer fader, DIP switches

Depth 7.5 in. in
Dimensions 7.5 in. x 5.9 in. x 1.6 in.
Height 1.6 in. in
Included Accessories 12V DC Power Supply
Mounting Options Wall-mountable or handheld
Weight 2.0 lbs. kg
Width 5.9 in. in

12 DMX channel faders with individual control, master dimmer fader for overall brightness adjustment, dual power operation (12V DC or 9V battery), 3-pin and 5-pin DMX outputs, compact and lightweight design, DIP switches for DMX address setting, LED channel bank indicator, on/off power switch.

Power: 12V DC, 500mA minimum (included) or 9V battery (not included). DMX outputs: 3-pin and 5-pin XLR. Certifications: CE approved, RoHS compliant. Dimensions: 7.5 in. (length) x 5.9 in. (width) x 1.6 in. (height). Weight: 2.0 lbs. (0.9 kg).

American DJ SDC12 DMX Controller, 12V DC Power Supply.
