Elation Show Designer 2CF
DISCONTINUED
Reviews
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Get $195 back. Or Join VIP for up-front discounts.
$195 Gift card included. Prefer up-front discounts? Join VIP.
*Discontinued

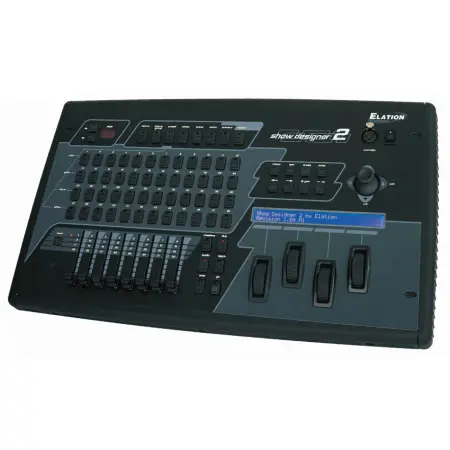

Elation Lighting Show Designer 2CF
MAIN CONTROL FEATURES
• 2 Universe Outputs
• 1024 Total DMX Channels
• Large Fixture Library
• Effects Engine
• 1152 Programmable Chases
• 4752 Programmable Scenes
• 1152 Programmable Shows
• 1152 Programmable Presets
• Control 48 moving light fixtures of up to 32 channels each
• 48 Fixture groups
• 8 faders allow control of 32 DMX fixture channels or as 32 scene masters
• Scene Preview with "Go" feature
Factory ready Color, Gobo, Focus & Effects Presets!
• Easily Name Scenes, Chases or Shows using Standard Computer KEY BOARD!
FRONT PANEL CONTROL OPTIONS
• 80 Character backlit LCD Display for easy programming
• 48 Multi function buttons
• JOYSTICK for Pan/Tilt Operation
• 4 Large Rotary wheels for Menu and Control
• 8 Faders x 4 Banks
• XLR Little Light Connector
• ON/OFF power switch
REAR PANEL CONTROL OPTIONS
• 2x(3Pin) DMX Outputs
• 2x(5Pin) DMX Outputs
• Midi-In port
• Midi-Out port
• Compact Flash Drive (For use with the following type Compact Flash Cards; Elation Professional® recommends 64MB SanDisk, 64MB Kodak or 64MB Cannon Compact Flash Cards only.
• KEY BOARD Input
• RS-232 Port, for PC interface
• 2 x Polarity Switch per Output
• RCA Audio Input for Chases
TECHNICAL SPECS & DATA
• Polarity switch (2-,3+/2+,3-) 3 Pin XLR only
• 1MB internal memory
• Battery Back up
• 19" Rack mountable, 6 space
• Dimensions: 19" x 10.5" x 4"
• Weight: 10 lbs
• Voltage: 120V/220V via (Power Supply)9-12v DC/1200ma
Got mine (newest version with the usb light socket) Software 2.00 M4 , does not work. Trying to get Elation to help. The available software on their site does not work,1.20 (blank download) outdated anyway. Worked on it 2 full days and nothing. Hopefully I can get a updated software and move forward.
