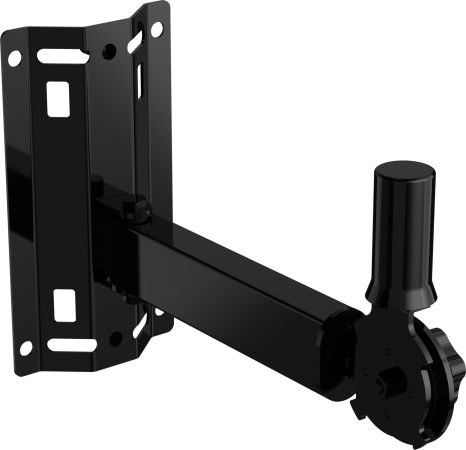

Electro-Voice BRKT-POLE-S

Adjustable Speaker Wall Mount Bracket

The Electro-Voice BRKT-POLE-S is a heavy-duty steel mounting bracket designed to position compatible 8-inch, 10-inch, and select 12-inch loudspeakers on vertical walls or secure vertical poles. Its adjustable design provides rotation, swivel, and tilt control, allowing installers to aim loudspeakers more precisely for permanent audio installations, venues, presentation spaces, and other sound reinforcement applications.

Electro-Voice BRKT-POLE-S Competitive Differences

• Supports a working load limit of up to 75 lb (34.1 kg)
• Provides rotation, swivel, and vertical tilt adjustment for precise loudspeaker aiming
• Maximum 30-degree downward tilt and 5-degree upward tilt
• Compatible with 8-inch, 10-inch, and select 12-inch Electro-Voice loudspeakers
• Heavy-duty steel construction with a black finish
• Can be installed on a vertical wall or properly secured vertical pole

Electro-Voice BRKT-POLE-S Description

The Electro-Voice BRKT-POLE-S provides a secure and adjustable mounting solution for compact full-range loudspeakers. Its steel construction is engineered for installed sound applications and supports loudspeakers weighing up to 75 lb (34.1 kg) when properly installed.

Multiple adjustment points make it possible to rotate the loudspeaker around the pole-mount axis, swivel the bracket from side to side, and adjust vertical tilt. The bracket supports up to 30 degrees of downward tilt and 5 degrees of upward tilt, helping installers direct sound toward the intended listening area while minimizing unnecessary coverage.

The BRKT-POLE-S is suitable for Electro-Voice ZLX 8-inch models, ELX200 10-inch models, EVERSE 8, ZX1, ZXA1, and other specified compatible models. Selected 12-inch speakers are also supported, although some models have limited horizontal-angle or upward-tilt adjustment. The bracket is designed for vertical mounting surfaces and is not intended for direct exposure to rain or outdoor environments.

BRKT-POLE-S Features

• Adjustable speaker wall and pole-mount bracket
• Designed for 8-inch, 10-inch, and select 12-inch loudspeakers
• Rotation adjustment around the loudspeaker pole-mount axis
• Swivel adjustment from the bracket arm
• Adjustable upward and downward tilt
• Maximum downward tilt: 30 degrees
• Maximum upward tilt: 5 degrees
• Working load limit: 75 lb (34.1 kg)
• Steel construction
• Black finish
• Designed for vertical surface mounting
• Can be mounted to a properly secured vertical pole using appropriate hardware
• Wall mounting spacers included

BRKT-POLE-S Specifications

• Product Type: Adjustable loudspeaker wall/pole-mount bracket
• Material: Steel
• Color: Black
• Working Load Limit: 75 lb (34.1 kg)
• Maximum Downward Tilt: 30 degrees
• Maximum Upward Tilt: 5 degrees
• Dimensions (H x W x D): 9.84 x 4.56 x 8.50 in (250 x 115.8 x 215.9 mm)
• Weight: 3.92 lb (1.78 kg)
• Shipping Dimensions (H x W x D): 11.61 x 10.43 x 3.35 in (295 x 265 x 85 mm)
• Shipping Weight: 4.28 lb (1.94 kg)
• Maximum Wall Fastener Diameter: 3/8 in or M10
• Order Number: F.01U.385.536
• Compatible Models: ZLX 8-inch models, EKX 12-inch models, ELX 12-inch models, ELX200 10-inch models, ETX-10P, ETX-12P, EVERSE 8, EVERSE 12, PX1122M, SX 12-inch models, ZX1, and ZXA1
• Installation Environment: Vertical surfaces; not designed for direct exposure to rain or outdoor environments

What's In The Box

• 1 BRKT-POLE-S pole mount bracket
• 2 wall mounting spacers
• 1 quick installation guide
