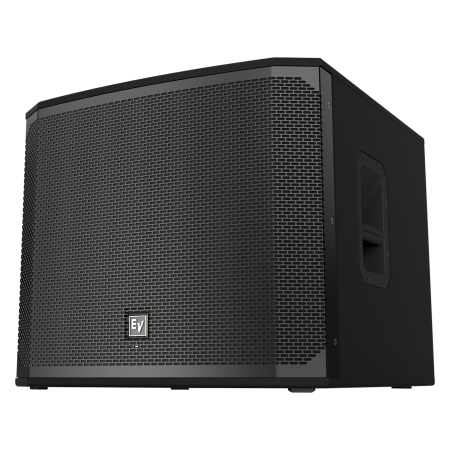

Electro-Voice EKX-18SP | 18in - 134dB
$1,449.00
EKX-18SP
18-Inch Powered Subwoofer
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
High-efficiency 1300 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-18SP utilizing high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.
Connector Type (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 35 Hz - 180 Hz Half Space Measurement
Frequency Response (-3 dB) 40 Hz - 150 Hz Half Space Measurement
Grill 18 AWG steel with powdercoat
LF Transducer EVS-18C 457 mm (18 in)
Low Pass Frequency Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Maximum SPL 134 dB peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1300 W
Shipping Weight 41.2 kg (90.83 lbs)
Height 12RU 520 mm (20.47")
Width 606 mm (23.86")
Depth 612 mm (24.09")
Weight Net 32.8 kg (72.31 lbs)
These are great subs. Great bass response and easy on your back! I've done several gigs wth these ranging from corporate gatherings to high school Homecoming dances. I mainly have load in and out by myself and with these i'm able to have that great sound and professional look without breaking my back or bank. You will not regret buying this sub, even one will rock!
I have been using these for 3 years. And used with professional acts indoor and out covering indoor to 25,000 square feet rooms up to 105db 100’ from the stage with clarity. They provide a nice tight bass. I have also used QSC KW181 and prefer the EV for a tighter bass response and better control over the QSC. I will add two more to my rig before I would step up to a higher quality(price) such as RCF. These are the best subs I have ever found in this price range and I have never had a complaint from the acts I have worked with.
