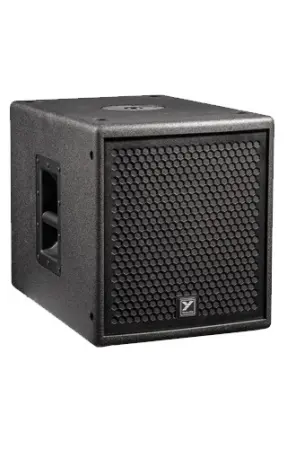

Yorkville PS12S

Features
Ultra Compact High Performance Active Subwoofer
Single 12-inch Long Throw Woofer w/ 3-inch VoiceCoil
Max SPL 129dB Peak (123dB Continuous)
Compact Bass Reflex Design
Handles Line or Speaker Level (Powered) Input Sources
XLR and ¼-inch Inputs and Link Outputs
Ideal Companion Subwoofer for Parasource PS10P
Solid 15mm Birch Cabinet Construction
Integrated Pole Mount Adaptor and All Metal Handles
Made in Canada

Overview
The 900-watt ultra compact single 12-inch active PS12S bass reflex subwoofer is the ideal companion sub for the PS10P full range loudspeaker system. Solid 15mm birch plywood cabinet construction and an efficient Class-D power amplifier design provide unmatched long-term reliability in the field.

Cable of direct connection to any audio source (including speaker level input) the PS12S can be easily integrated in to virtually any small or medium format PA application.

Specifications
Active or Passive Active
Program Power (Watts) 900 Watts Program (1800 Watts Peak)
Max SPL (dB) 129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz - 100Hz
Crossover Frequency (Hz) fixed @ 100Hz
Driver Configuration 1x12-inch (Bass Reflex Cabinet)
LF Driver(s) 1x12-inch Long Throw Ceramic w/ 3-inch VoiceCoil
Power Consumption 3.3 Amps
Inputs XLR Balanced Line Level Input
¼-inch Line or Speaker Level Input
Outputs XLR Balanced Link Output
¼-inch Link Output
Controls Output Level, Line/Speaker Level Switch
Power/Limit/Clip LED's
Enclosure Materials 15mm Birch
Baffle Material 15mm Birch
Covering / Finish Paint
Dimensions (DWH xbackW, inches) 23 x 14 x 22.5
Dimensions (DWH xbackW, cm) 58.4 x 35.6 x 55.93
Weight (lbs/kg) 65 / 29.6
Specifications subject to change without notice

Yorkville PS-12S (Yorkville PS12-S)
