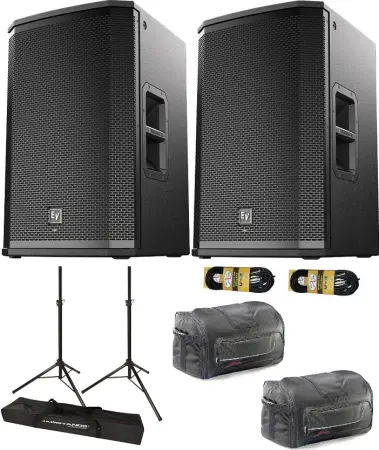

Electro-Voice ETX-15P Package
$3,499.00
EV ETX15P (Electro Voice EXT 15P)
Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
15-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL
Frequency Range 40 Hz – 20 kHz
Maximum SPL 135 dB peak dB
Power Consumption 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
Power Rating 2000 W
Frequency Response 48 Hz – 20 kHz
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
LF Transducer SMX2150 380 mm (15 in)
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 1500 Hz
Connector Type (2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material 18-mm, 13-ply birch plywood with EVCoat
Grill 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Height 691 mm (27.2")
Width 431 mm (16.97")
Depth 447 mm (17.6")
Weight Net 27.7 kg (61.07 lbs)
Shipping Weight 31.5 kg (69.45 lbs)
