All EV R300 Microphone Systems Come with a Free Mic Case
Electro-Voice R300 Handheld Wireless Microphone System
EV R300 WITH "EZsync" AND EV'S "ClearScan" TECHNOLOGY!
There are no other wireless microphones on the market made by any other manufacturer's that have EZsync and ClearScan. These two features make syncing the transmitter and receiver extremely easy and channel is scanning is not only a simple one touch feature...it also will find you the absolute BEST channel available in your area. No other lines have this feature. Every other wireless mic (outside of the EV line) will find you the first available channel. This will find you the BEST channel! There is a big difference. Highly Recommended by KPODJ!
Electro Voice R300 Features:
Frequency Set C
Handheld Transmitter with PL22 Capsule
32 Preset Channels
ClearScan Channel Selection
EZsync Remote Channel Syncing
Rugged Metal Construction

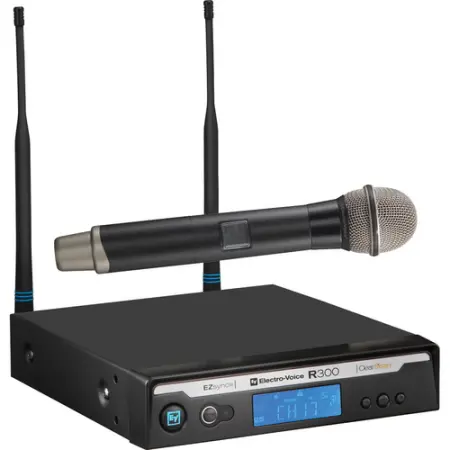

The Electro-Voice R300-HD Handheld Wireless Microphone System is a cost-effective microphone system well suited for nightclubs, auditoriums, houses-of-worship, DJs and other applications. The R300-HD includes the R300 true-antenna diversity receiver and HT300 handheld microphone with PL22 cardioid, dynamic capsule. The system features 32 user selectable frequency channels and diversity reception for minimizing RF interference.

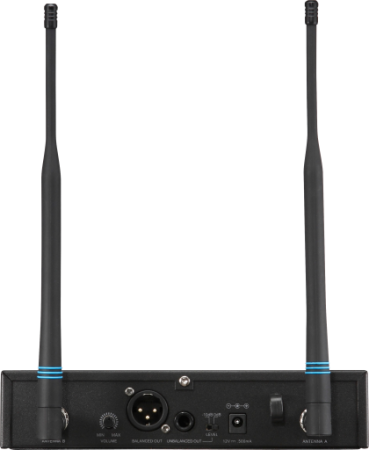

The ClearScan feature provides single-touch frequency scanning for effortless searches of ideal operating frequencies. Easily keep the transmitter and receiver in sync with the EZsync infrared channel transfer feature. The R300 receiver features 1/4" phone and XLR outputs on the rear and the HT300 operates for up to 14 hours on a pair of AA alkaline batteries.
Designed for club sound, performance & sports venues, and other applications
ClearScan - find the clearest channel available with the touch of one button
EZsync - infrared channel transfer from receiver to transmitter for easy and error-free setup
PL22 cardioid dynamic microphone element for crisp, clear vocals in any application
Rugged metal transmitters with backlit LCD display and battery gauge
14-hour battery life from two AA alkaline batteries
32 preset channels, with compatible groups of 8 channels for simultaneous use
Detachable half-wave receiver TNC antennas enable use with APD4+ antenna distribution system
Metal receiver chassis with optional rack-mount ears and front-mount antenna cables
EV R300 Specs:
System
Type of System UHF Handheld
Distortion Less than 1.0, 0.4 typical %
Dynamic Range Greater than 95dB
Overall Frequency Response 80Hz - 18kHz +/- 2dB
Signal-to-Noise Ratio Greater than 100dB
# Of Channels 32 Preset channels
RF Sensitivity Less than 1.0uV
Receiver
Type of Receiver R300
Type of Outputs 1/4 inch unbalanced, 3-pin XLR balanced
Headphone Monitoring No
Power Requirements 12VDC, 500mA Max
Diversity Circuitry True Antenna
Display Back-Lit LCD
Antenna Type Diversity
Transmitter
Type of Transmitter HT300 Handheld Transmitter
Type of Input Connector None
Type of Microphone PL22 Dynamic Capsule
Polar Pattern Cardioid
RF Output 8mW
Battery Type/Approx. Life Two AA Alkaline, 14 hours
Mute Switch On/Off, Set, Up, Down, Sync
Choose the correct frequency band for your area by going here:
