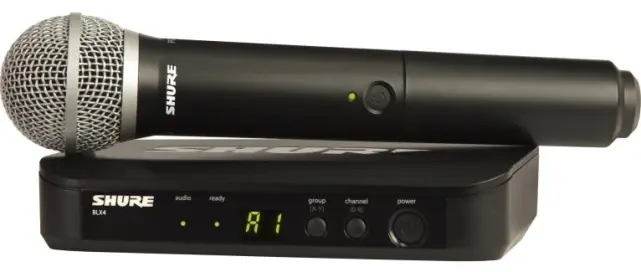

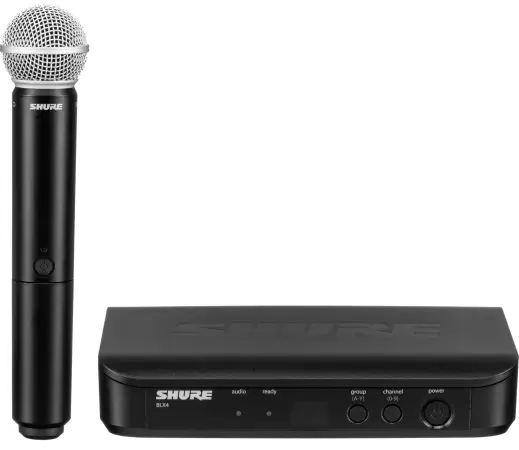

Shure BLX24/PG58 H10 Band
H10: 542 to 572 MHz
The BLX24/PG58 Wireless Vocal System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the PG58A®. Legendary sound and performance, right out of the box.
For performers who wish to unplug from the wire, BLX Wireless Systems are the clearest choice. Shure delivers wireless confidence with legendary sound from industry-renown microphones, decades of wireless design proficiency and world-class construction. Available in a wide offering of bodypack and handheld configurations (including vocal, guitar, headset and presenter system), BLX Wireless Systems are ready to perform right out of the box.
Includes:
BLX4 wireless receiver

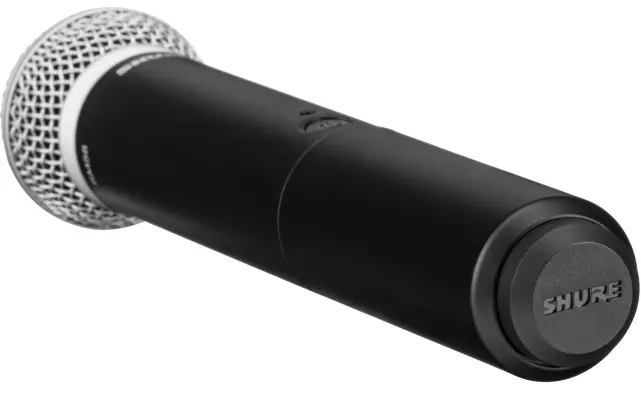

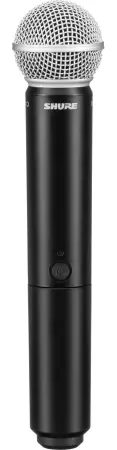

PG58 handheld microphone with BLX2 transmitter
Microphone clip
Features:
Integrated microphone capsule design
-10 dB gain attenuation
Lightweight, rugged construction
Color ID caps (available separately)
Up to 14 hours of continuous use (2x AA batteries included)
Up to 300 feet (100m) transmission radius (line of sight)
Quick and easy frequency matching (GROUP and CHANNEL selection buttons)
Two-color transmitter status indicator LED
Green: "Ready"
Rapidly Flashing Red: "Controls Locked"
Solid Red: "Battery Power Low" (less than1 hour remaining)
Flashing Red/Power Down: "Batteries Dead" (replace batteries to repower transmitter)

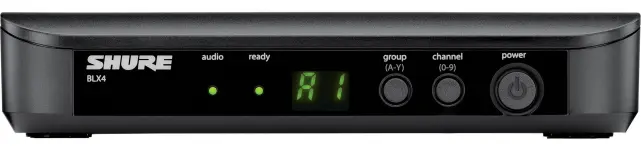

Shure BLX4 Receiver:
One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
Two-color audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)

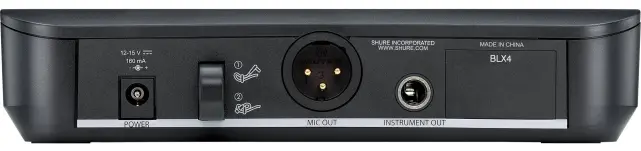

XLR and 1/4" output connectors
Specifications:
Operating Range: 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 524 – 865 MHz (available frequencies depend on applicable regulations in country where system used)
Audio Range: 50 Hz – 15 kHz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
Power Requirements:
BLX1: 2 AA alkaline or rechargeable batteries (included)
BLX4: 12 – 18 V DC at 150 mA, supplied by external power supply
Shure BLX24-PG58
(Shure BLX24PG58)
