Electro-Voice RE3-BPGC-6M

UHF Wireless Guitar & Instrument System for Stage Performers

Electro-Voice RE3-BPGC-6M is a complete UHF wireless instrument system operating in the 653–663 MHz band. Designed for guitarists, bassists, and keytar players, this system includes a rugged metal bodypack transmitter, a rack-mountable diversity receiver, and a 1/4" to TA4F instrument cable for reliable wireless freedom on stage or in worship environments. With backlit displays, broad tuning range, and selectable RF output power, it delivers performance-grade flexibility and dependable audio transmission.

Electro-Voice RE3-BPGC-6M Competitive Differences

• UHF digital wireless system optimized for instruments
• Operates in Band 6M (653 to 663 MHz) for clear frequency selection
• Includes metal-body diversity receiver and bodypack transmitter
• Backlit LCD screens on both transmitter and receiver for easy visibility
• Selectable RF output power (10 or 20 mW) to suit transmission range
• Ultrasonic IR sync for simple pairing between receiver and transmitter
• Durable 32.7" instrument cable (1/4" to TA4F) included for plug-and-play use
• Up to 8 hours of transmitter battery life on two AA batteries

Electro-Voice RE3-BPGC-6M Description

The Electro-Voice RE3-BPGC-6M provides a professional-grade wireless solution tailored for musicians who need mobility and signal reliability. Whether you’re playing live gigs, performing at church, or rehearsing in the studio, this system minimizes interference and maximizes sonic integrity.

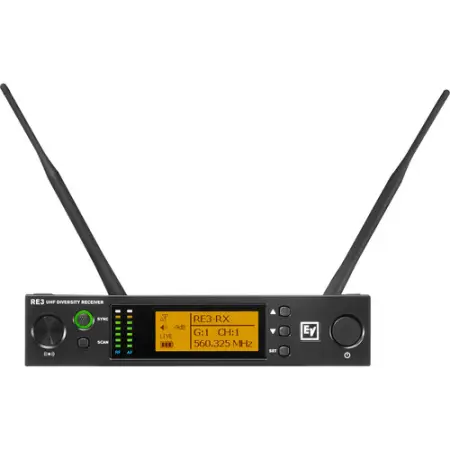

At the core is the RE3-RX6M diversity receiver, which features advanced frequency scanning, wireless sync, and a full LCD display. Housed in a rugged, rack-mountable frame, it offers balanced XLR and unbalanced 1/4" TRS outputs for integration into any audio system. Diversity antenna reception reduces dropouts and maintains stable signal delivery throughout performances.

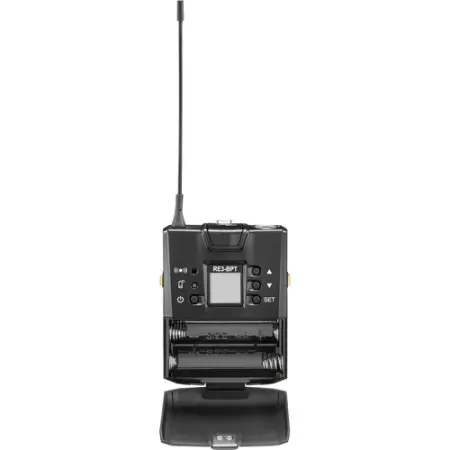

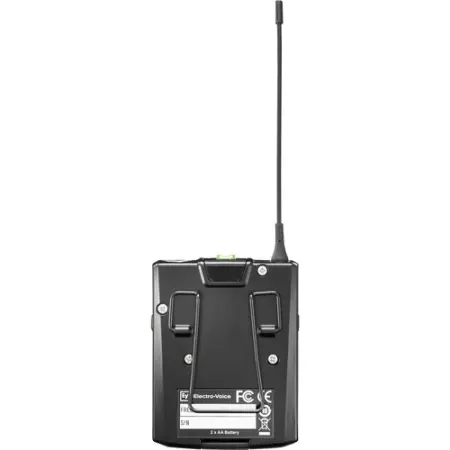

The RE3-BPT-6M bodypack transmitter is lightweight and built with a durable metal housing. It features adjustable sensitivity and RF output power, mute switch, and easy-to-read backlit LCD for real-time monitoring. With up to 8 hours of runtime and support for rechargeable AA batteries (via optional charger), this bodypack offers both endurance and flexibility.

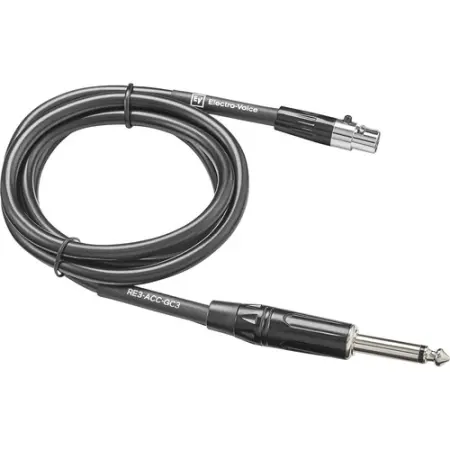

Also included is the RE3-ACC-GC3 cable, providing a clean connection between your instrument’s 1/4" output and the TA4F input of the bodypack. It’s rugged, reliable, and made specifically to handle the demands of live performance.

RE3-BPGC-6M Features

• Complete wireless system for instruments: receiver, transmitter, and cable
• Operates in 653–663 MHz (Band 6M)
• Receiver offers IR sync, LCD screen, balanced and unbalanced outputs
• Bodypack with 10 or 20mW RF power, LCD, and mute switch
• Metal construction on both transmitter and receiver
• Includes RE3-ACC-GC3 cable (1/4" TS to TA4F)
• Ideal for guitars, basses, and other stringed instruments

RE3-BPGC-6M Specifications

• Wireless Technology: Digital UHF
• Frequency Band: 653 to 663 MHz (Band 6M)
• Receiver: RE3-RX6M
• 1/2 rackmount design with included hardware
• Diversity antenna system with 2 removable 1/2 wave antennas

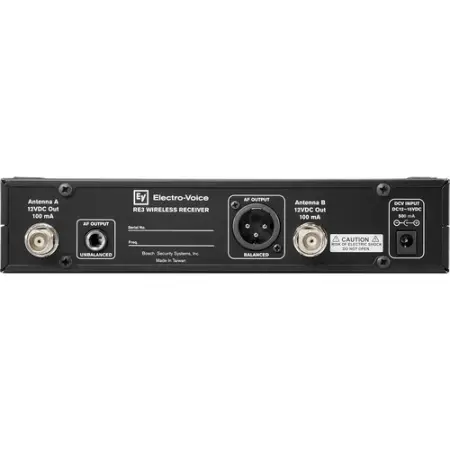

• Audio Outputs: 1x Balanced XLR, 1x Unbalanced 1/4" TS
• Frequency Response: 51 Hz to 16 kHz (dependent on mic)
• Receiver Dimensions: 8.2 x 1.9 x 6.1" (20.8 x 4.8 x 15.5 cm)
• Transmitter: RE3-BPT-6M
• Output Power: Selectable 10 or 20 mW
• Power: 2x AA batteries (included), up to 8 hours runtime
• Input: 1x TA4M (Mini-XLR 4-Pin)
• Transmitter Dimensions: 2.5 x 3.2 x 0.9" (6.3 x 8.1 x 2.3 cm)
• Transmitter Weight: 6.1 oz (172.9 g)
• Cable: RE3-ACC-GC3
• Connector: 1/4" TS to Mini-XLR TA4F
• Cable Length: 32.7" (83.06 cm)
• UPC (System): 800549895262

What's In The Box

• Electro-Voice RE3-RX6M Wireless Receiver (653–663 MHz)
• Electro-Voice RE3-BPT-6M Bodypack Transmitter (653–663 MHz)
• Electro-Voice RE3-ACC-GC3 Instrument Cable (1/4" TS to TA4F)
• 2 x AA Batteries
• Rackmount Hardware
• User Documentation

Electro Voice RE3-BPGC (6M Band) (Electro-Voice RE3-BPGC (6M: 653 to 663 MHz))
