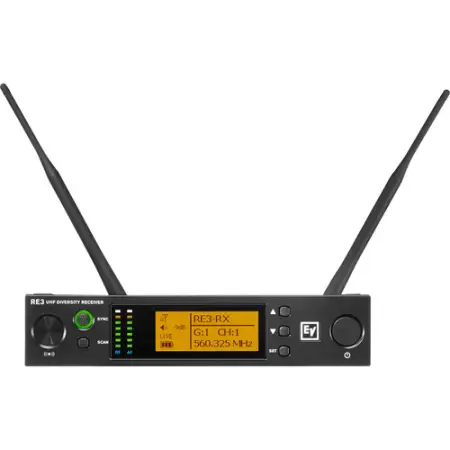

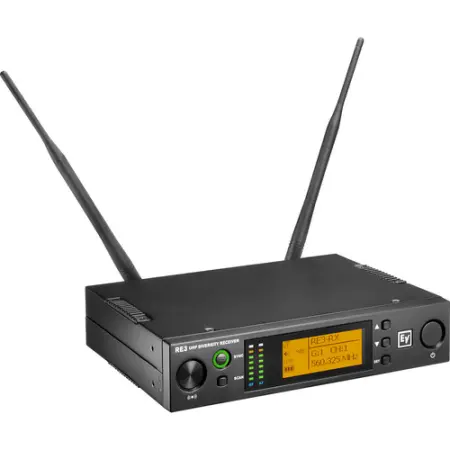

Electro-Voice RE3-RX-6M

Professional UHF Wireless Receiver for Audio Systems

Electro-Voice RE3-RX-6M is a high-performance UHF diversity wireless receiver operating in the 653–663 MHz frequency band. Designed for use with Electro-Voice RE3 handheld or bodypack transmitters (sold separately), it delivers reliable, crystal-clear audio for live sound, presentations, and production applications. With advanced scanning, synchronization, and diversity antenna switching, the RE3-RX-6M ensures consistent performance in demanding environments.

Electro-Voice RE3-RX-6M Competitive Differences

• Operates in Band 6M (653 to 663 MHz) for interference-free UHF performance
• True diversity reception with automatic antenna switching to reduce dropouts
• Compatible with all Electro-Voice RE3 transmitters
• Clear frequency scanning and ultrasonic IR sync for easy setup
• Backlit LCD screen for clear visibility of menus and operating status
• Rackmountable 1/2-space metal chassis with included hardware
• Balanced XLR and unbalanced 1/4" TS outputs for versatile audio connectivity

Electro-Voice RE3-RX-6M Description

The Electro-Voice RE3-RX-6M is built to be the centerpiece of your wireless system. Its diversity design leverages two removable rear-mounted 1/2-wave antennas that dynamically switch based on signal strength, reducing the risk of dropouts and ensuring robust performance.

With support for up to 400 selectable frequencies in the 653–663 MHz UHF range, the RE3-RX-6M helps users find interference-free channels quickly. The clear frequency scan and ultrasonic IR sync features streamline pairing with compatible transmitters, saving valuable setup time during sound checks or live events.

The receiver's all-metal housing enhances durability for mobile or installed use, and its rackmount-ready design (with included hardware) makes it ideal for integration into touring rigs or fixed AV installations. Its backlit LCD display provides real-time status of channel, frequency, audio levels, and transmitter battery status for easy monitoring.

RE3-RX-6M Features

• UHF diversity wireless receiver for use with Electro-Voice RE3 transmitters
• Operates in 653–663 MHz (Band 6M)
• True diversity reception with dual removable antennas
• Ultrasonic sync with RE3 transmitters
• Backlit LCD display for system monitoring
• Rackmountable 1/2-space chassis with included hardware
• Balanced XLR and unbalanced 1/4" TS line outputs

RE3-RX-6M Specifications

• Wireless Technology: Digital UHF
• Frequency Band: 653 to 663 MHz
• Diversity: Yes, with dual antennas
• Number of Frequencies: 400
• Receiver Type: Tabletop, rackmountable (1U half-rack)
• Antenna: 2x removable 1/2-wave external (rear-mounted)

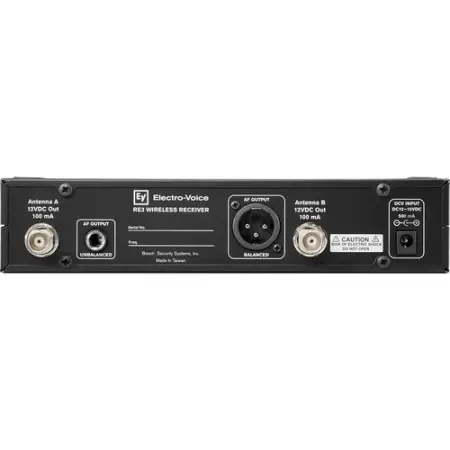

• Audio Outputs: 1x XLR 3-pin balanced, 1x 1/4" TS unbalanced
• Frequency Response: 51 Hz to 16 kHz (mic dependent)
• Display: Backlit LCD
• Power Requirement: 12 to 15 VDC (AC/DC adapter included)
• Housing: Metal
• Dimensions: 8.2 x 1.9 x 6.1" (20.8 x 4.8 x 15.5 cm)
• UPC: 800549895262

Electro Voice RE3-RX (6M: 653–663 MHz) (Electro-Voice RE3-RX (6M Band))
