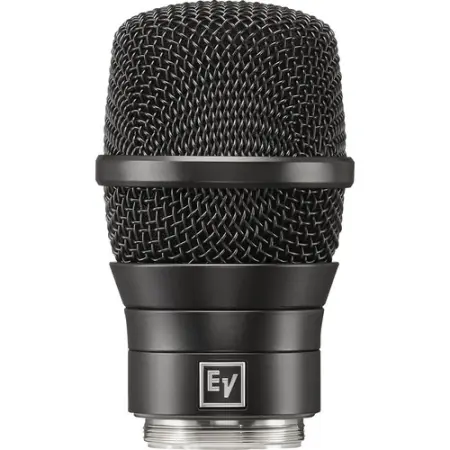

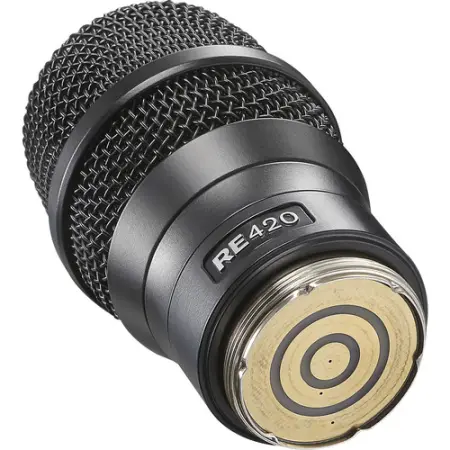

The RE420-RC3 Wireless Head with RE420 Cardioid Capsule from Electro-Voice is a robust, high performance, dynamic cardioid thread-on vocal microphone head for wireless handheld transmitters. It can be used with Electro-Voice and many other brands of wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.
Designed for excellent all-around voice applications, the RE420-RC3 capsule delivers warm low-end, open mid-range, and a clear high-end sonic signature, as well as isolation from sound on the stage. A multistage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts.

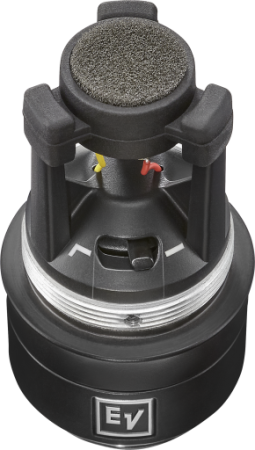

In addition, an internal shock mount isolates the microphone element from vibration and guards against handling noise. You can use the RE420-RC3 Wireless Head with an RE420 Cardioid Capsule with confidence near speaker cabinets and EMF-generating equipment racks.
FEATURES:
Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
Premium condenser element delivers a highly detailed, rich, and full bodied sound
Cardioid polar pattern provides excellent acoustic isolation with a comfortable working range
Multistage pop filter minimizes breath blasts and plosives
Selectable high-pass filter reduces undesirable low-frequency content when engaged
SPECIFICATIONS:
ompatible Transmitters
Electro-Voice: RE3-HHT
Element Type
Electret Condenser
Polar Pattern
Cardioid
Performance
Frequency Range
50 Hz to 20 kHz
Maximum SPL
137 dB SPL (1% THD)
Impedance
1000 Ohms
Sensitivity
5.6 mV/Pa
Dynamic Range
115 dB
Signal-to-Noise Ratio
72 dB
Equivalent Noise Level
22 dB SPL A-Weighted
Connectivity
Output Connector
1 x Concentric Ring 3-Pin
Power
Operating Voltage
4 to 8 V
Physical
Mounting
Mounting Thread (via Integrated Hardware)
Mounting Thread Size
1.25"-28 Male
Construction Material
Aluminum, Steel, Steel Wire Grille
Dimensions
ø: 1.95 x L: 3.36" / ø: 4.96 x L: 8.53 cm
Weight
4.6 oz / 130 g
Electro voice RE420-RC3 Capsule
(Electro-Voice RE420-RC3 Wireless Mic Head)
