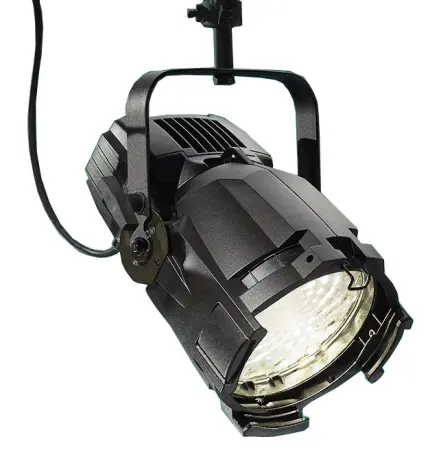

Hybrid PAR/Fresnel Fixture for LED Retrofit Lighting
The
ETC Source 4WRD PARNel fixture body transforms your Source 4WRD LED retrofit into a powerful, soft beam hybrid of PAR and Fresnel lighting. Combining high efficiency, simple operation, and professional-grade performance, this body-only fixture is ideal for theaters, schools, worship spaces, and multipurpose venues seeking modern LED lighting with a familiar feel and function.
ETC Source 4WRD PARNel Competitive Differences
- Designed specifically for the Source 4WRD LED retrofit (not included).
- Hybrid design combines PAR and Fresnel beam characteristics.
- Delivers output brighter than a 750W HPL while consuming just 155W.
- Supports both DMX and line voltage dimming for versatile control.
- Ships with PARNel lenses; compatible with standard Source Four PAR accessories.
- Multiple color options available: black, white, silver, or custom colors.
ETC Source 4WRD PARNel Description
The
ETC Source 4WRD PARNel fixture body allows users to take full advantage of the Source 4WRD LED retrofit engine, delivering a high-performance soft beam ideal for general wash and fill lighting. It merges the controllability of a Fresnel with the output and ruggedness of a PAR. Designed with professional applications in mind, it’s well-suited for venues like houses of worship, academic institutions, theaters, event spaces, and more.

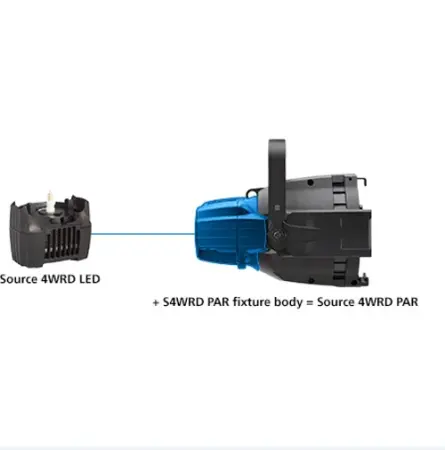

The PARNel body supports simple integration into existing systems, requiring only a Source 4WRD LED module to operate. It features efficient line dimming or DMX control, low operating temperatures, and a compact, lightweight die-cast aluminum build. With an estimated L70 rating of 30,000 hours and no lamp replacements required, it's a smart, long-term upgrade from conventional lighting.
Source 4WRD PARNel Features
- Fixture body only – for use with ETC Source 4WRD LED retrofit engine
- Brighter than 750W HPL lamp equivalents
- 155W power consumption at full output
- Line voltage or DMX dimming
- Beam angle range: 25°–46°
- Includes PARNel lens and color frame
- Standard mounting yoke with post
- Compatible with standard Source Four PAR accessories
Source 4WRD PARNel Specifications
- Source: Requires Source 4WRD LED (48 Cree LEDs) – not included
- Max Lumens: 9,909
- Lumens Per Watt: 63
- Color Temperature: 3000K (white)
- CRI: 80+ Standard / 90+ Gallery (dependent on retrofit engine)
- Dimming: DMX (via RJ45) or line dimmed
- Display: 7-segment address display with local control
- Voltage Range: 114–125V, 60Hz
- Connector: Hardwired, 1-meter cord with Edison plug
- Power Draw: 155W typical / 1.2W standby
- Inrush Current: 30A at 120V (first half-cycle)
- Fixtures per 20A circuit: Up to 14
- Ambient Temp Range: 41°F–104°F (5°C–40°C)
- Fan Noise: 28 dBa average at 1 meter
- Thermal Output: 529 BTUs/hour
- Material: Die-cast aluminum
- Mounting: Yoke with mounting post
- Color Options: Black, white, silver, or custom
- IP Rating: IP-20
- Weight: 7.7 lbs
What's In The Box
- ETC Source 4WRD PARNel Fixture Body
- Mounting post
- Color frame
- PARNel lens (pre-installed)
E T C Source 4WRD PARnel Body
(ETC Source 4WRD PARnel)
