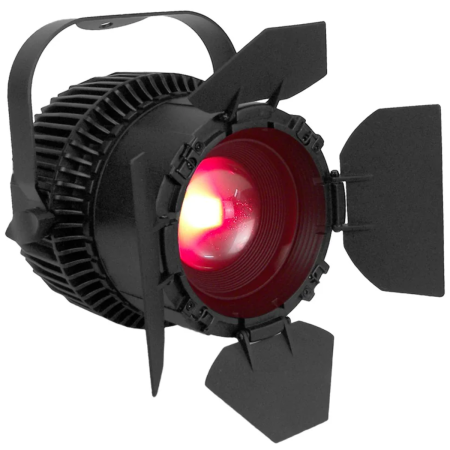

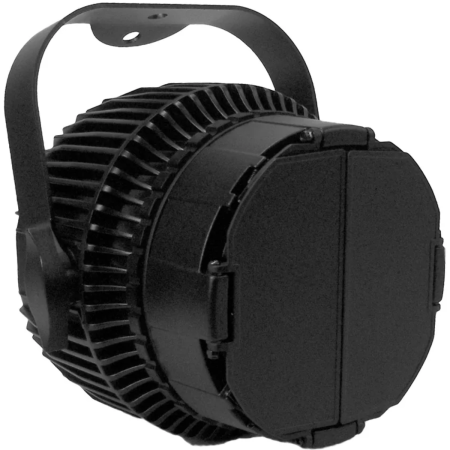

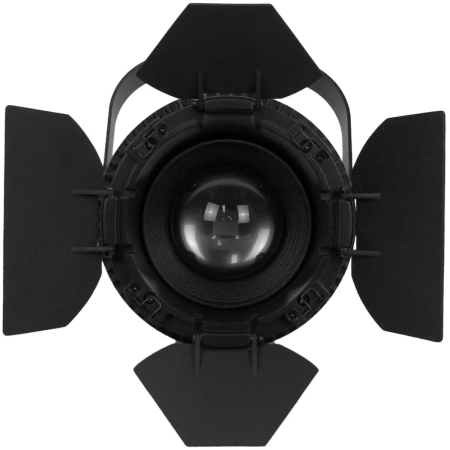

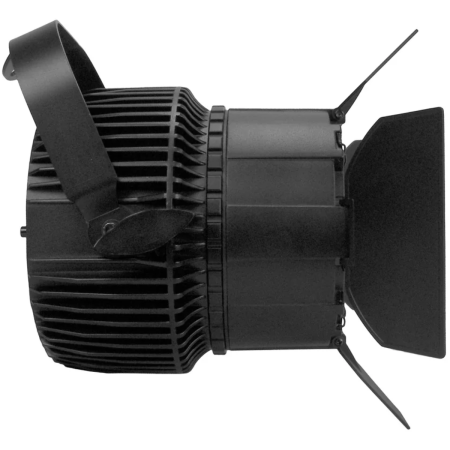

Event Lighting F160QW

The Event Lighting F160QW is a quad colour Fresnel wash fixture with a 4 x 40W RGBW LED engine, manual 15° to 55° zoom, and fanless cooling for quiet operation. It is designed for theaters, houses of worship, studios, and stage applications that need smooth dimming, flexible beam control, and warm white output.

Quad Colour Fresnel Light

Event Lighting F160QW is a compact quad colour Fresnel fixture built for stage, studio, and architectural lighting applications where smooth output, quiet performance, and flexible beam shaping matter. With a 4 x 40W 4-in-1 RGBW LED source, manual zoom from 15° to 55°, and included barn door and gel clip, it gives lighting users practical control over beam spread, color mixing, and fixture shaping in a durable format.

Event Lighting F160QW Competitive Differences

• 4 x 40W 4-in-1 RGBW LED engine with warm white capability and up to 3,000 lux at 3 meters
• Fanless die-cast aluminum design with manual 15° to 55° zoom, included barn door, and True1 power in/out

Event Lighting F160QW Description

The Event Lighting F160QW is designed for users who need the familiar punch and edge control of a Fresnel fixture with the added flexibility of RGBW color mixing. Its 80mm planconvex lens helps deliver a controlled beam, while the adjustable 15° to 55° beam angle and 25° to 65° field angle make it suitable for everything from tighter front light to broader stage washes.

This fixture is especially useful in environments where silent operation is important. Its fanless cooling system with temperature protection makes it a strong choice for theaters, studios, broadcast spaces, houses of worship, and other noise-sensitive venues. The matte black die-cast aluminum housing also provides a professional appearance and durable construction for installed or portable use.

For control, the F160QW supports manual operation, master/slave, DMX, WDMX, and RDM, giving it flexibility across a wide range of lighting systems. Multiple DMX channel modes, 16-bit dimming, and strobe from 1 to 25Hz allow users to fine-tune output and programming detail for live productions, stage design, and event environments.

With True1 power in and out, 5-pin XLR DMX connections, and included beam-shaping accessories, the Event Lighting F160QW is well suited for lighting professionals who want a compact Fresnel fixture that balances output, color versatility, and quiet performance.

F160QW Features

• 4 x 40W 4-in-1 RGBW (Warm White) LED light source
• CRI of 80 in warm white, up to 95 when mixing with RGB at low level
• Manual zoom range from 15° to 55°
• Field angle from 25° to 65°
• Output of 3,000 lux at 3 meters at 15°
• Output of 820 lux at 3 meters at 55°
• 80mm planconvex lens
• 24,000 Hz PWM for flicker-conscious applications
• 0 to 100% dimming with 16-bit control
• Strobe effect from 1 to 25Hz
• Included barn door
• Included gel clip
• Supports Manual, Master/Slave, DMX, WDMX, and RDM operation
• 4-button LCD control panel
• DMX512 control protocol
• Selectable DMX channel modes: 1 / 2 / 3 / 4 / 6 / 10 / 11 / User
• 5-pin XLR input and output
• True1 power input and output
• Fanless cooling with temperature protection
• Die-cast aluminum housing in matte black finish
• LED lifespan rated at 50,000 hours

F160QW Specifications

• Light Source: 4 x 40W 4-in-1 RGBW (Warm White) LED
• CRI: 80 warm white, up to 95 with RGB mixing at low level
• Beam Angle: 15° to 55°
• Field Angle: 25° to 65°
• Output: 3,000 lux @ 3m at 15°, 820 lux @ 3m at 55°
• Lens: 80mm planconvex lens
• PWM: 24,000 Hz
• LED Lifespan: 50,000 hours
• Dimming: 0 to 100%, 16-bit
• Strobe: 1 to 25Hz
• Zoom: Manual, 15° to 55°
• Power Supply: 100 to 240V AC, 50/60Hz
• Power Consumption: 160W
• Power Connection: True1 in/out
• Operational Modes: Manual, Master / Slave, DMX, WDMX, RDM
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1 / 2 / 3 / 4 / 6 / 10 / 11 / User
• Control Interface: 5-pin XLR in/out
• Housing Material: Die-cast aluminum
• Housing Finish: Matte black
• Cooling: Fanless cooling with temperature protection
• Dimensions: 8.6 x 7.5 x 7.9 in (217.5 x 190.5 x 200 mm)
• Weight: 7.5 lb (3.4 kg)

What's In The Box

• Event Lighting F160QW fixture
• Barn door
• Gel clip

Event Lighting F160QW (Event Lighting F160-QW)
