Variable White Fresnel Light
Event Lighting F200VW is a compact variable white Fresnel fixture designed for stage, theater, studio, and broadcast lighting where accurate color rendering and quiet operation are essential. Using dual 100W COB LEDs with 2700K warm white and 6500K cool white sources, the fixture allows smooth color temperature adjustment while maintaining high CRI performance.
Event Lighting F200VW Competitive Differences
- Dual 100W COB LEDs providing variable white output from 2700K to 6500K with CRI 95+
- Manual zoom from 20° to 53° with fanless cooling for silent theater and studio operation
Event Lighting F200VW Description
The Event Lighting F200VW is built for professional lighting environments that require flexible white light output. Its dual COB LED engine combines warm 2700K and cool 6500K sources, allowing lighting designers to dial in the right color temperature for stage productions, broadcast setups, and corporate events while maintaining high CRI performance for natural skin tones and accurate color rendering.
An 80mm planconvex lens provides classic Fresnel beam shaping, while the manual zoom system adjusts the beam angle from 20° to 53° with a field angle range of 34° to 70°. This flexibility allows the fixture to work as both a focused key light and a wider stage wash depending on placement and lighting design needs.
The fixture’s fanless cooling system ensures silent operation, making it ideal for theaters, studios, houses of worship, and other noise-sensitive environments. The die-cast aluminum housing provides durability for both permanent installations and touring productions while maintaining a compact and lightweight footprint.
Control options include manual operation, master/slave, DMX, WDMX, and RDM compatibility, allowing integration into a wide variety of lighting systems. With multiple DMX channel modes, 16-bit dimming, and a simple LCD control interface, the F200VW gives lighting technicians precise control over output and programming.
F200VW Features
- 2 x 100W COB LEDs with variable white output
- Color temperature range from 2700K warm white to 6500K cool white
- High CRI rating of 95+
- Manual zoom from 20° to 53°
- Field angle range from 34° to 70°
- Output of 3,550 lux at 3 meters at 20°
- Output of 1,025 lux at 3 meters at 53°
- 80mm planconvex lens
- PWM frequency of 1,200Hz
- 0 to 100% dimming with 16-bit control
- Strobe effect from 1 to 25Hz

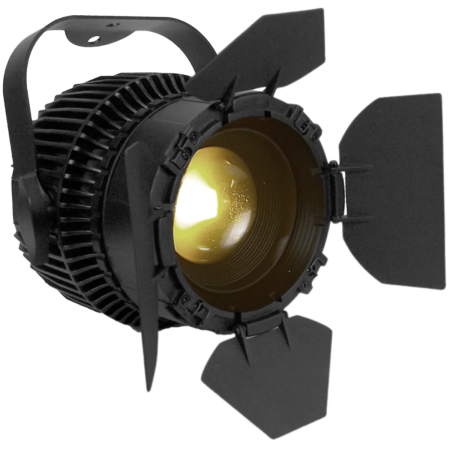

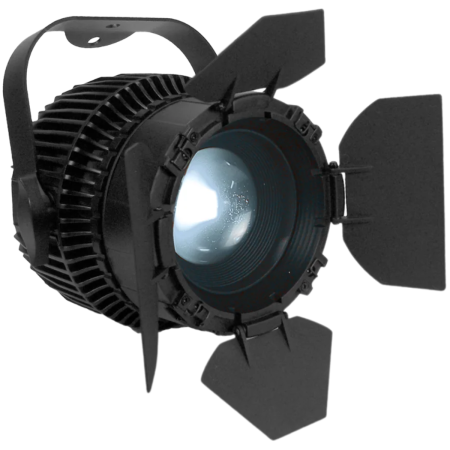

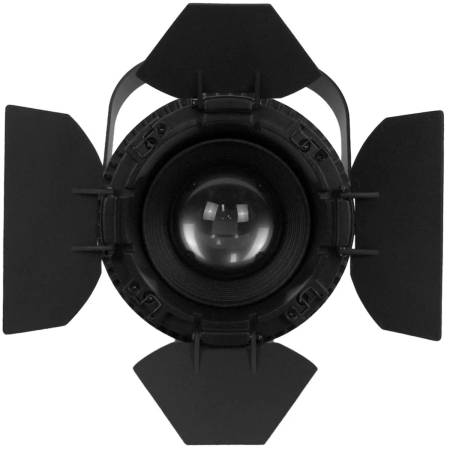

- Included barn door
- Included gel clip
- Manual, Master/Slave, DMX, WDMX, and RDM control modes

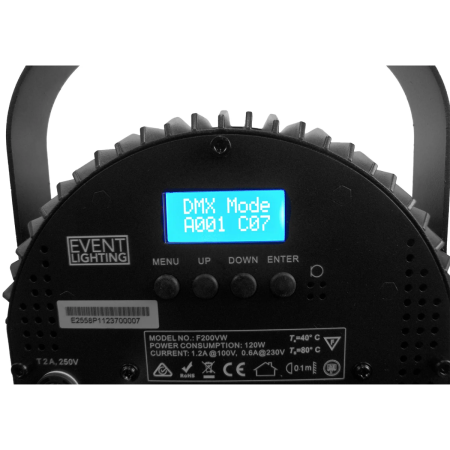

- 4-button LCD control panel
- Selectable DMX channel modes: 1 / 1U / 2 / 5 / 7 / User

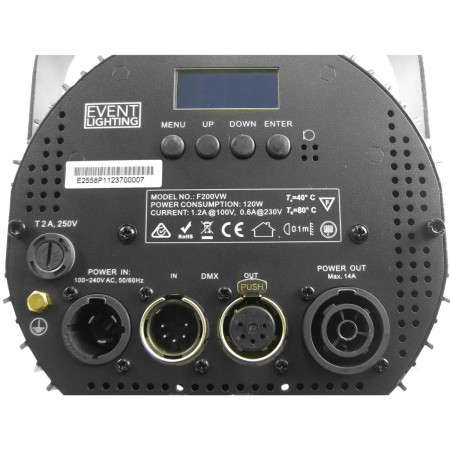

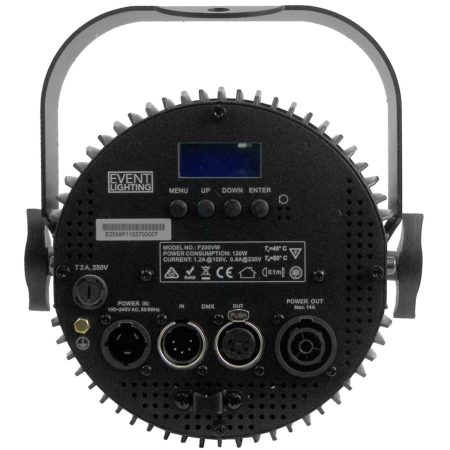

- 5-pin XLR DMX input and output
- True1 power input and output
- Fanless cooling with temperature protection
- Durable die-cast aluminum housing
- Matte black housing finish
- LED lifespan rated at 50,000 hours
F200VW Specifications
- Light Source: 2 x 100W COB LEDs (6500K cool white + 2700K warm white)
- CRI: 95+
- Beam Angle: 20° to 53°
- Field Angle: 34° to 70°
- Output: 3,550 lux @ 3m at 20°, 1,025 lux @ 3m at 53°
- Lens: 80mm planconvex lens
- PWM: 1,200 Hz
- LED Lifespan: 50,000 hours
- Dimming: 0 to 100%, 16-bit
- Strobe: 1 to 25Hz
- Zoom: Manual, 20° to 53°
- Power Supply: 100 to 240V AC, 50/60Hz
- Power Consumption: 200W
- Power Connection: True1 in/out
- Operational Modes: Manual, Master / Slave, DMX, WDMX, RDM
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channel Modes: 1 / 1U / 2 / 5 / 7 / User
- Control Interface: 5-pin XLR in/out
- Housing Material: Die-cast aluminum
- Housing Finish: Matte black
- Cooling: Fanless cooling with temperature protection
- Dimensions: 8.6 x 6.6 x 7.9 in (217.5 x 167 x 200 mm)
- Weight: 7 lb (3.2 kg)
What's In The Box
- Event Lighting F200VW fixture
- Barn door
- Gel clip
Event Lighting F200VW
(Event Lighting F200-VW)
