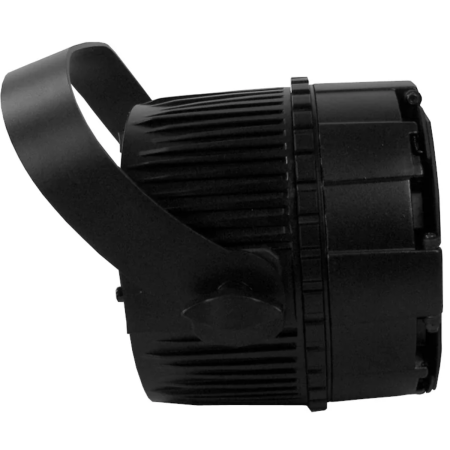

Event Lighting F96VW

Variable White LED Fresnel

The Event Lighting F96VW is a compact variable white LED Fresnel fixture designed for professional stage, theater, and studio lighting applications. Equipped with two 48W COB LEDs providing warm white (2700K) and cool white (5700K), this fixture allows smooth color temperature adjustment for natural-looking illumination with excellent color rendering.

An 80mm Fresnel lens and adjustable manual zoom allow the beam to be shaped from a narrow 20° spot to a wider 50° wash, giving lighting designers flexible control over coverage and focus. With a high CRI rating of 95+, the F96VW produces accurate and natural skin tones, making it ideal for theatrical productions, broadcast environments, and event stages.

Event Lighting F96VW Competitive Differences

• Dual 48W COB LEDs with variable white from 2700K to 5700K
• Manual zoom from 20° to 50° for flexible beam shaping
• High CRI 95+ for accurate color rendering
• True1 power connections with fanless cooling design

Event Lighting F96VW Description

The Event Lighting F96VW delivers soft, controllable white lighting suitable for professional performance environments. By combining warm and cool white COB LEDs, the fixture allows lighting operators to adjust the color temperature to suit different scenes, stage designs, and camera requirements.

The built-in 80mm Fresnel lens produces a smooth and even field of light, while the manual zoom mechanism allows the beam to be adjusted from a focused 20° spot to a wider 50° flood. This flexibility makes the fixture ideal for front lighting performers, highlighting stage elements, or illuminating presenters in live productions.

Advanced dimming control provides smooth 16-bit dimming from 0–100%, allowing precise fades and subtle lighting transitions. Adjustable strobe effects from 1–25Hz add further creative control for dynamic lighting cues when required.

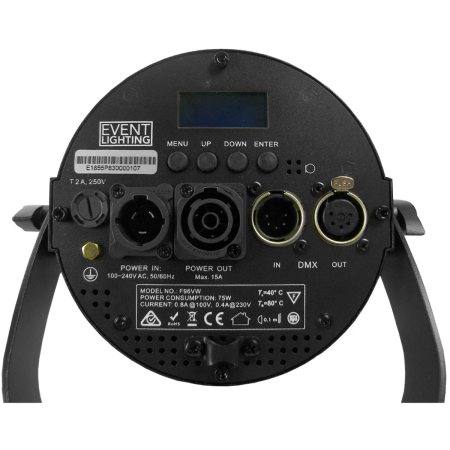

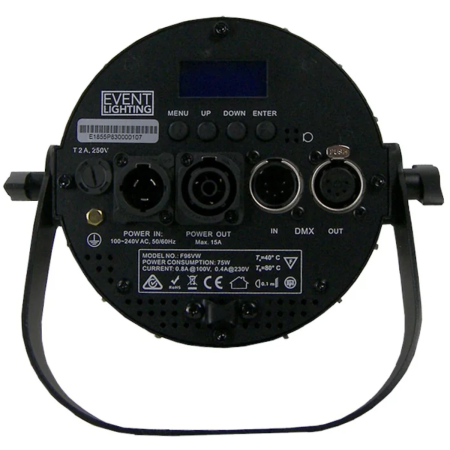

The fixture supports manual operation, master/slave mode, and DMX control with multiple channel options. An integrated 4-button LCD control panel provides easy navigation through settings, while optional WDMX wireless control enables cable-free system integration.

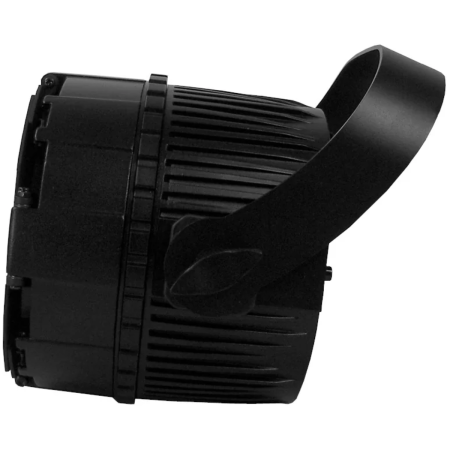

Built with a durable die-cast aluminum housing and matte black finish, the F96VW is designed for reliable operation in professional lighting rigs. Its fanless cooling system ensures silent operation, making it suitable for theater, studio, and broadcast environments where low noise is critical.

F96VW Features

• 2 x 48W COB LEDs with warm white (2700K) and cool white (5700K)
• High CRI 95+ for natural color rendering
• Manual zoom from 20° to 50°
• 80mm Fresnel lens for smooth, even light distribution
• 16-bit dimming from 0–100%
• Adjustable strobe effect from 1–25Hz
• True1 power input and output connections
• 5-pin XLR DMX input and output
• Manual, DMX, and master/slave operation modes
• Optional WDMX wireless control support
• Fanless cooling with temperature protection

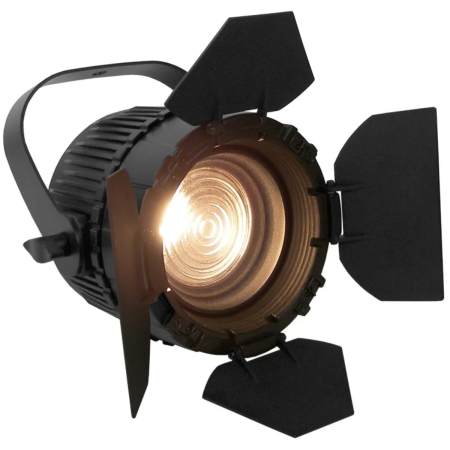

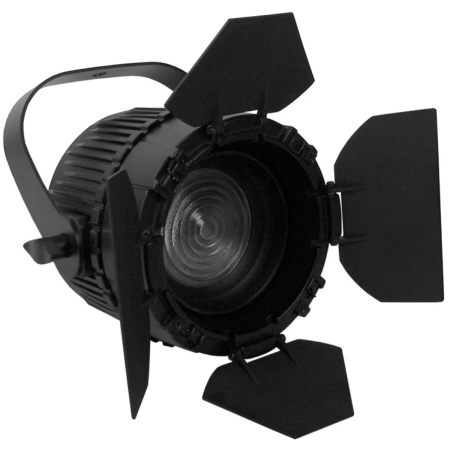

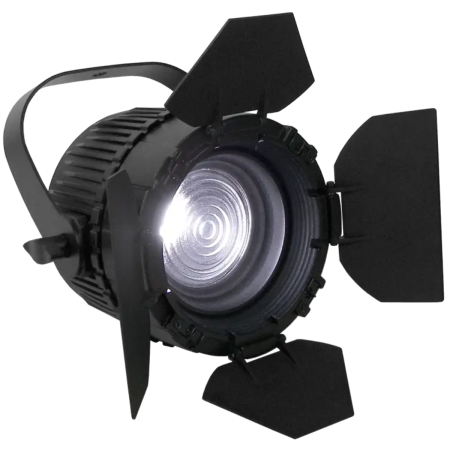

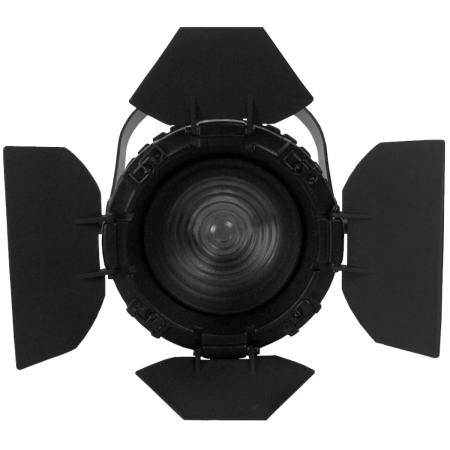

• Included barn door and gel clip

F96VW Specifications

• Light Source: 2 x 48W COB LEDs (Warm White 2700K / Cool White 5700K)
• CRI: 95+
• Beam Angle: 20° – 50°
• Field Angle: 50° – 67°
• Lens: 80mm Fresnel

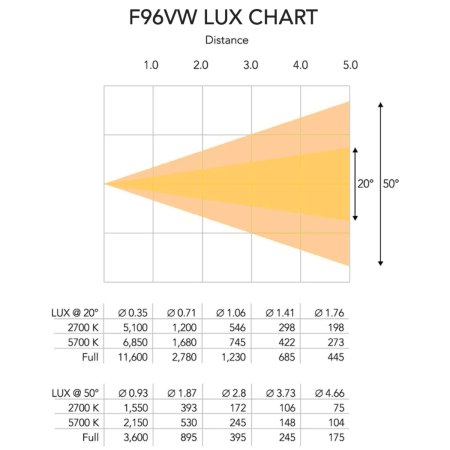

• Output: 1,230 lux @ 3 m (20°), 395 lux @ 3 m (50°)
• PWM Frequency: 1,200Hz
• LED Lifespan: 50,000 hours
• Dimming: 0–100%, 16-bit
• Strobe: 1–25Hz
• Zoom: Manual 20° – 50°
• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 75W
• Power Connection: True1 In/Out
• DMX Protocol: DMX512
• DMX Channel Modes: 1 / 2 / 7
• DMX Interface: 5-pin XLR In/Out
• Display: 4-button LCD control panel
• Housing: Die-cast aluminium with matte black finish
• Cooling: Fanless with temperature protection
• Dimensions: 7.95 x 5.47 x 7.6 in (202 x 139 x 193 mm)
• Weight: 5 lb (2.3 kg)

What's In The Box

• Event Lighting F96VW LED Fresnel fixture
• Barn door
• Gel clip
• User manual

Event Lighting F96VW (Event Lighting F969-VW)
