Galaxy Audio VSCR/H18
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Galaxy VSCR-318 (Galaxy Audio VSCR318)
Available in v54, v59, v60 and v61.

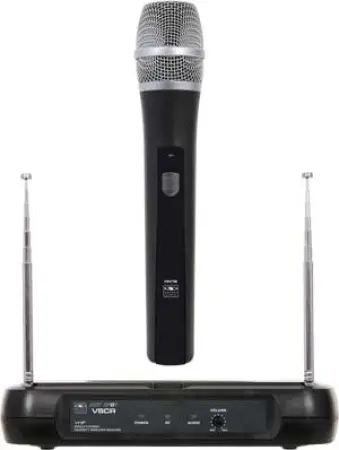

TVSCR/H18: Single Channel Diversity VHF wireless handheld microphone system, includes 1 VSCR receiver with 2 telescopic antennas, 1 HH18 handheld transmitter, & power supply
Receiver (VSCR)
RF & Audio Indicators
Unbalanced ¼" Output
Diversity Telescopic Antennas
Durable Plastic Housing
Hand Held (HH18)
Low Battery LED
On/Off Switch
Dynamic Cardioid
Runs on 2 AA Batteries (about 8 hours)
System
Band: VHF
Antennas: Diversity Telescopic
Indicators: Low battery
Frequency Responce: 60Hz - 16kHz
Frequency Range: CODE V54 173.8 MHz, CODE V59 174.1MHz, CODE V60 174.5MHz, CODE
V61 174.8MHz
Output: Unbalanced ¼"
Operating Range: 100' (30.48m)
Note: actual range depends on RF signal absorption, reflection, and interference
Dimensions: 1.73" x 9.25" x 4.6"
(44mm H x 235mm W x 118mm D)
Weight:11.2oz (318grams)
Power Requirements: 12-18 V dc at 300mA, supplied by external power supply.
FREQUENCY CODES:
CODE V54 173.8 MHz
CODE V59 174.1MHz
CODE V60 174.5MHz
CODE V61 174.8MHz
<br /> The Galaxy audio VSCR/(HH18) is a durable Hand held wireless system. Diversity systems like this have two receivers working in conjunction. The antenna are placed at a distance equivalent to half a wave length apart. This means that when the signal to one antenna is blocked (or more commonly cancelled out by reflections) the other antenna still gets the signal. This type of system almost never suffers from dropouts because of this design. The HH8 hand held mic included with this wireless system is solidly built and has a tight cardioid pickup pattern that will reject feedback from your speakers. I really like this affordable yet well designed system.
