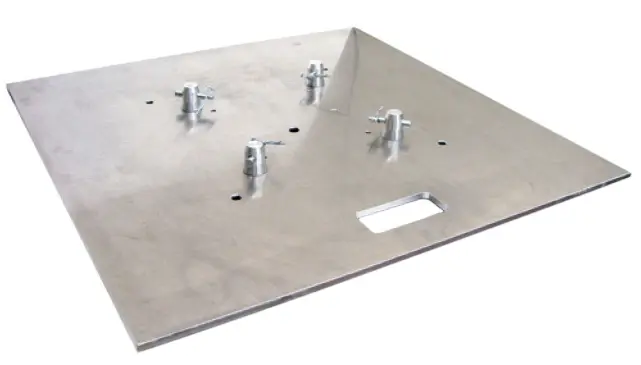

Global Truss BASE PLATE 20x20A

20in Aluminum Base for Multiple Truss Types

$219.00 In Stock!

Lighting Truss Base Plate

The Global Truss BASE PLATE 20x20A is a heavy-duty aluminum base plate built for versatile truss support across a wide range of systems. Its 20in x 20in footprint provides superior stability, making it an ideal foundation for vertical structures or larger truss builds.

Global Truss BASE PLATE 20x20A Competitive Differences

  • Compatible with five Global Truss series: F14, F23, F24, F31, and F34
  • Constructed from durable 5052-grade aluminum

Global Truss BASE PLATE 20x20A Description

The Global Truss BASE PLATE 20x20A is engineered for professional trussing applications requiring a stable, universal base. Designed to accommodate multiple Global Truss series, this plate offers exceptional flexibility for modular truss setups, especially in event staging, DJ towers, or trade show displays. Its robust construction uses 5052-grade aluminum at 9.5mm thickness, offering a solid weight-bearing foundation without excessive bulk. At 15lbs, it strikes a strong balance between stability and portability. Multiple model variations are available for specific truss systems, and a sleek black powder-coated version (BASE PLATE 20x20-BLK/MTE) is also offered for a discreet stage presence. This plate is ideal for users who need a single, strong base solution for a variety of truss setups, making it a smart addition to any trussing inventory.

Model Features

  • Works with F14, F23, F24, F31, and F34 truss systems
  • Large 20in x 20in footprint for enhanced stability
  • 9.5mm thick 5052-grade aluminum construction
  • Available in natural aluminum or black finish

Model Specifications

  • Compatible Truss: F14, F23, F24, F31, F34
  • Dimensions: 20 x 20 in (508 x 508 mm)
  • Material Thickness: 9.5mm
  • Material: 5052 Aluminum
  • Unit Weight: 15 lbs
  • Black Model #: BASE PLATE 20x20-BLK/MTE

Brand Global Truss
Name Global Truss BASE PLATE 20x20A

Build Material 5052-grade aluminum
Depth 9.5mm mm
Dimensions 20 x 20 in (508 x 508 mm) in
Mounting Options F14, F23, F24, F31, F34
Weight 15 lbs lbs

Color Mixing Natural aluminum or black powder-coated
