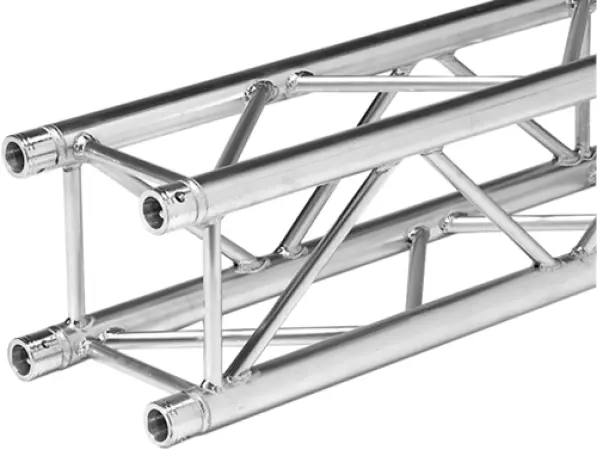

Global Truss SQ-4114 | F34, 9.84ft Square Truss
$1,429.99
The Global Truss SQ-4114 is a 9.84-foot (3-meter) straight square truss segment designed for professional stage lighting, event production, trade shows, and structural display applications. Part of the Global Truss F34 series, it features a 290 mm square profile, 50 mm outer diameter main tubing, 20 mm diagonal bracing, and 2 mm wall thickness. Constructed from aluminum alloy and fabricated by certified TÃœV welders, the SQ-4114 includes connecting hardware for integration with compatible F34 truss components.
The Global Truss SQ-4114 is a straight aluminum truss segment designed for constructing professional lighting structures, stage frameworks, exhibition displays, and event production systems. Measuring 9.84 feet (3 meters) in length, this F34 series square truss section provides an extended structural component for applications requiring longer straight runs. Its four-chord square configuration features an overall width of 11 7/16 inches (290 mm), making it compatible with matching Global Truss F34 components.
Manufactured from EN-AW 6082 T6 aluminum alloy, the SQ-4114 incorporates 2-inch (50 mm) outer diameter main tubing with a wall thickness of 0.08 inches (2 mm). Diagonal bracing constructed from 3/4-inch (20 mm) tubing reinforces the framework and helps distribute forces throughout the truss section. Fabrication by certified TÃœV welders supports consistent construction quality for professional staging and production environments.
The SQ-4114 is equipped with connecting hardware for joining compatible F34 truss sections and accessories. Its modular design allows production teams to incorporate the segment into larger truss configurations using appropriate corners, base plates, and connection components. The 3-meter length makes it useful for building lighting grids, overhead truss structures, exhibition frameworks, and stage installations where extended straight sections are required. All assembled structures must follow manufacturer load-span specifications and applicable rigging requirements.
Designed for professional use, the SQ-4114 combines aluminum construction with the dimensional consistency of the Global Truss F34 system. Its manufacturer-listed weight of 40 pounds (18.16 kg) makes it suitable for modular truss assemblies used by production companies, lighting technicians, staging professionals, and event installers. Whether used in a temporary event setup or a permanent installation, the SQ-4114 provides a compatible straight truss component for expanding F34 square truss systems.
| Brand | Global Truss |
| Name | Global Truss SQ-4114 | F34, 9.84ft Square Truss |
| Primary Category | Square Aluminum Truss Segment |
| SKU | F340352 |
| Build Material | EN-AW 6082 T6 Aluminum Alloy |
| Dimensions | 118.11 x 11.42 x 11.42 in (3,000 x 290 x 290 mm) mm |
| Height | 11 7/16 in (290 mm) mm |
| Included Accessories | Connecting hardware |
| Mounting Options | Compatible with matching Global Truss F34 straight sections, corners, and accessories |
| Weight | 40 lb (18.16 kg) kg |
| Width | 11 7/16 in (290 mm) mm |
