American DJ ATL328

Compact Line Array Speaker for High-Impact Audio

The American DJ ATL328 from the Avante Tour series is a compact, 3-way active line array module designed to deliver powerful, high-fidelity audio for medium to large venues. With twin 8-inch neodymium drivers and a coaxial compression driver, this speaker offers impressive output, precision coverage, and advanced networking features in a lightweight, tour-ready enclosure.

American DJ ATL328 Competitive Differences

• 2800W total peak power from discrete Class-D amplification with PFC power supply
• MILAN-certified DSP with remote control, EQ, delay, and LF/HF presets via PC/Mac
• Dual 8” neodymium low-mid drivers + 1” coaxial MF/HF compression driver
• Wide 100° horizontal dispersion and 60Hz–20kHz frequency response
• Max SPL of 132 dB peak for exceptional sound pressure in compact form
• Precision CNC-machined Baltic birch enclosure with polyurea coating for touring durability
• Multi-angle rigging system for flexible array configurations or ground stacking
• IP-rated locking connectors and protective rain cover for reliable outdoor use

American DJ ATL328 Description

The ATL328 is a professional-grade, 3-way active line array module tailored for demanding audio environments, from concert venues and festivals to fixed installations in houses of worship and theaters. Powered by a 2800W peak Class-D amplifier system, it delivers rich, distortion-free sound with remarkable headroom and clarity.

Equipped with MILAN protocol-based networking, the ATL328 offers full system monitoring and control over Ethernet, supporting AES input, remote EQ, delay, level adjustments, and more. Its 8" neodymium drivers and coaxial MF/HF compression driver are optimized with a precision waveguide to provide uniform coverage across a 100° horizontal field.

Constructed from rugged Baltic birch and finished with a black polyurea coating, the enclosure is designed for the rigors of the road. A versatile rigging system allows for both flown and ground-stacked configurations. This module pairs perfectly with the Avante ATS218 subwoofer for full-range system deployments.

ATL328 Features

• Professional 3-way active line array system
• 2× 8" neodymium LF/MF drivers
• 1× coaxial MF/HF compression driver
• 2800W peak (Class-D amp with PFC)
• MILAN networking platform with DSP and remote control
• PC/Mac software compatibility

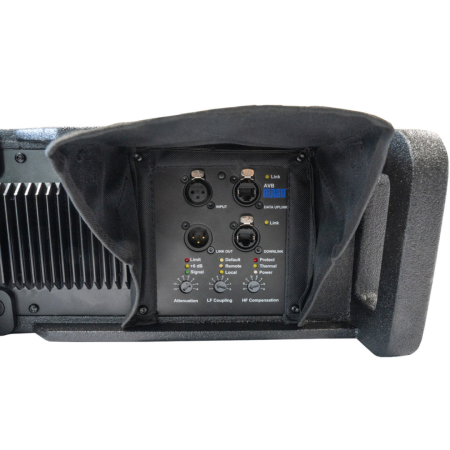

• IP-rated power connectors and protective amp panel rain cover
• Multi-angle integrated rigging hardware
• Ground-stacking capability
• Black polyurea coating with powder-coated steel grille

ATL328 Specifications

• Power Output: 2800W peak total
• Frequency Response: 60 Hz – 20 kHz (-6dB)
• Coverage: 100° horizontal
• Max SPL: 132 dB peak
• Drivers: 2× 8″ LF/MF + 1× coaxial MF/HF
• Construction: CNC Baltic birch plywood with polyurea finish
• Rigging: Integrated multi-angle rigging system
• Weather Protection: Rain cover + IP-rated connectors
• UPC: 810087374273

ADJ ATL328 Line Array (American DJ ATL328)
