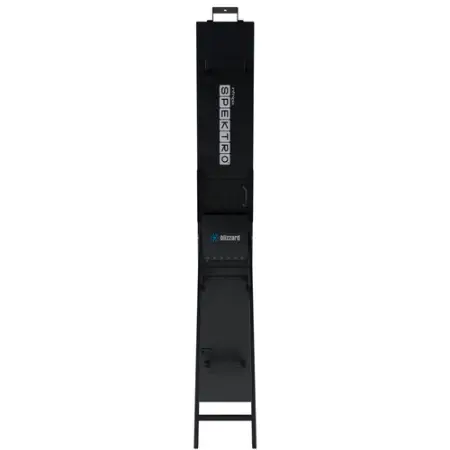

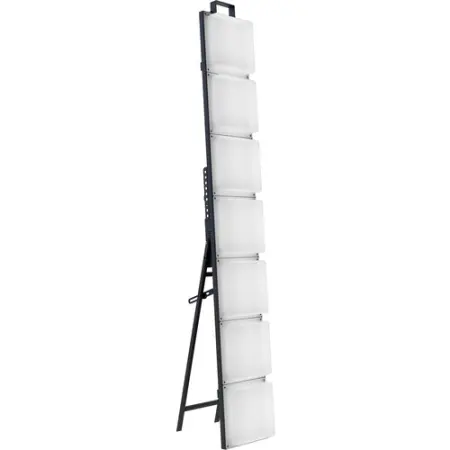

Deliver larger-than-life retro-style graphic EQ LED effects in installations or for mobile DJ entertainment with the InfiniPix Spektro 5' Tall LED Effect with 7 Diffused Blocks from Blizzard. Boasting seven 9 x 9" blocks with 28 tricolor SMD 5050 LEDs for a total of 196 video-friendly, flicker-free LEDs in a 5' tall effects unit, the InfiniPix Spektro provides smooth gradient effects with a 120° viewing angle. It has a 4-button control menu with an LED display and a dimming range of 0 to 100% with variable strobe effect support. A 0 to 40° flip-out stand facilitates quick and easy floor-standing setups.
The 5' tall fixture is loaded with built-in effects like 0-100% dimming, variable strobe, and sound active mode to help the crowd see the beat.
It features zero fan noise, a 5V USB to power an optional SoC-It wireless unit, and includes mounting brackets for multiple unit rigging for creatives who crave big impact.
It offers a wide selection of DMX control modes or simple setup with master/slave, auto, and sound active capability, as well as 3/5-pin DMX in and out connections.
FEATURES:
196 Tricolor SMD 5050 LEDs
7 x 9x9" Blocks with 28 LEDs
Smooth Gradient Effects
120° Viewing Angle
Video Friendly & Flicker Free
0 to 100% Dimming and Variable Strobe
0 to 40° Flip-Out Stand
4-Button Control Menu with LED Display
SPECIFICATIONS:
Light
Fixture Type Special Design
Light Source 196 x Color LED (SMD5050)
Colors Blue, Green, Red
Pixel Configuration 28 x Zones
Shutter / Strobe Electronic
Iris No
Zoom Adjustment None
Dimming Electronic, 0 to 100%
Performance
Operating Modes Automatic, DMX, Primary/Secondary, Sound-Active
Macros / Programs 64 x Auto-Program
Effects Strobe
Gobos None
Control
Control Protocols DMX512, RDM
DMX Channel Modes 7 Mode(s):
3 / 4 / 5 / 7 / 21 / 28 / 84-Channel
Display / Controls LED / 4-Button
Remote Control None
Mobile App Compatible No
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs 1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x USB-A Power Output
Power
AC Input Power 110 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON
Output: 1 x powerCON
Power / Current Consumption 47 W / 0.66 A
Environmental
Environmental Protection None
Operating Temperature 104°F / 40°C
Physical
Mounting Floor Base, Mounting Bracket
Included Accessories 1 x Power Cable
Duty Cycle None
Exterior Color Black
Cooling Convection
Dimensions 62.5 x 9.1 x 5.2" / 158.8 x 23.1 x 13.2 cm
Weight 17 lb / 7.7 kg
Packaging Info
Package Weight 20.85 lb
Box Dimensions (LxWxH) 37.5 x 11.5 x 10.5"
