Multi-Zone Hex LED Wash Light
The

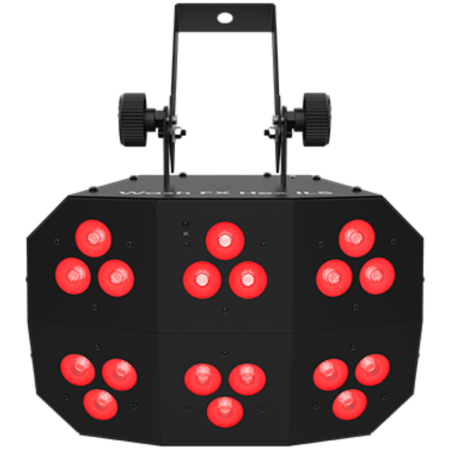

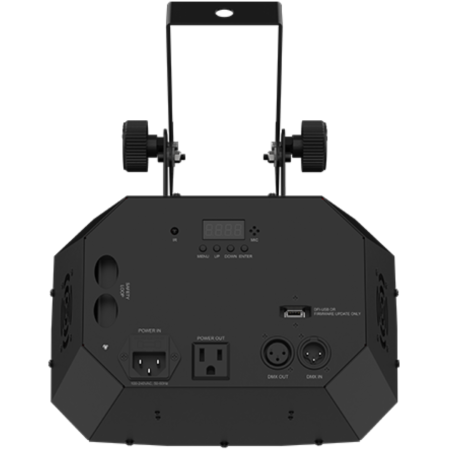

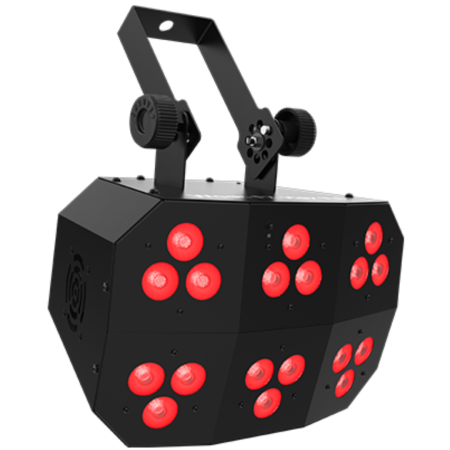

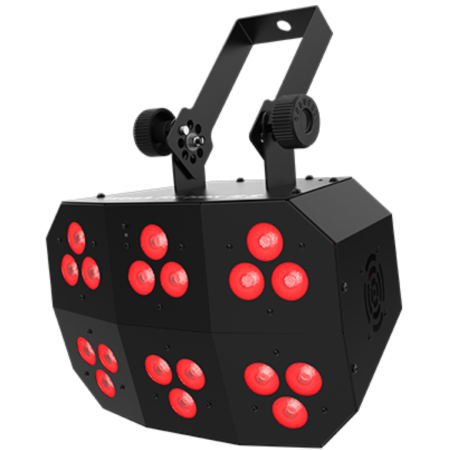

Chauvet DJ Wash FX Hex ILS is a dynamic, all-in-one LED lighting fixture designed to deliver powerful chase, blinder, and wash effects. With six individual chasing zones and RGBAW+UV color mixing, it’s perfect for high-energy shows, stage lighting, and mobile DJ events.
Chauvet DJ Wash FX Hex ILS Competitive Differences
- Hex-color LEDs (RGBAW+UV) for a wide spectrum and natural color
- Six-zone chase effect with ILS and D-Fi USB compatibility
Chauvet DJ Wash FX Hex ILS Description
Chauvet DJ Wash FX Hex ILS is a versatile LED fixture that blends three lighting effects into one compact and powerful unit. Whether you need a bold wash, a punchy blinder, or rhythmic chase sequences, this fixture adapts instantly to your lighting needs.
Equipped with 18 10W hex-color LEDs (RGBAW+UV), the Wash FX Hex produces a rich and wide-ranging color palette—including true whites and vibrant UV tones. Its six chasing zones allow for mesmerizing eye-candy effects, especially when used in synchronized master/slave setups or with integrated ILS (Integrated Lighting System) compatibility.
The Wash FX Hex ILS supports both wired and wireless DMX control and can be operated via D-Fi USB (sold separately), IRC-6 remote, or in standalone mode. Whether you're controlling an entire show or just triggering lighting cues wirelessly, this fixture gives you total control with minimal setup.
With a wide 77° field angle and a bright 3,204 lux output at 2 meters, it’s perfect for stages, dance floors, and special events that demand broad coverage and impactful visuals. Its compact build and compatibility with the CHS-40 VIP Gear Bag also make it easy to transport and deploy.
Model Features
- Functions as a wash light, blinder, or chase effect
- 18x 10W RGBAW+UV LEDs with 6-zone chase control
- ILS and D-Fi USB compatible for wireless control (USB sold separately)
- Natural-looking whites and vibrant color mixing with hex LEDs
- Multiple control modes: DMX, stand-alone, IRC-6, or master/slave
- Advanced master/slave mirroring for synchronized effects
Model Specifications
- DMX Channels: 3, 6, 11, or 40
- DMX Connectors: 3-pin XLR
- Light Source: 18 LEDs (10W hex-color), 50,000-hour life
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 44°
- Field Angle: 77°
- Illuminance: 3,204 lux @ 2 m
- Wavelength (UV): 395–405 nm
- Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 160 W, 1.3 A @ 120 V, 60 Hz
- Power Linking: 6 units @ 120 V; 11 units @ 230 V
- Dimensions: 11 x 9.5 x 7.1 in (280 x 240 x 180 mm)
- Weight: 6.8 lb (3.1 kg)
- Approvals: CE, RoHS, UKCA
What's In The Box
- Wash FX Hex ILS
- Power cable
- Quick reference guide
Chauvet Wash FX ILS Hex
(Chauvet DJ Wash-FX-Hex Instant Light Show)
