Low-Profile LED Par

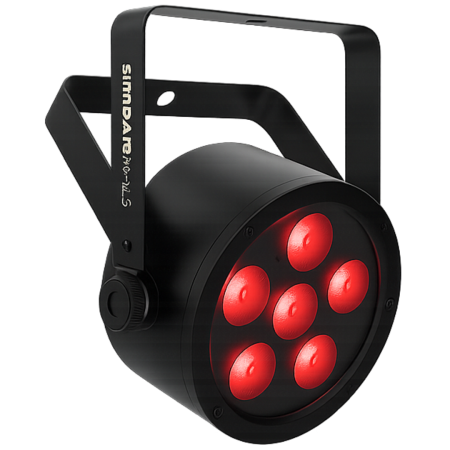

Chauvet DJ SlimPAR H6 ILS is a powerful yet compact LED par can featuring advanced 6-in-1 RGBAW+UV color mixing technology. Designed for maximum flexibility and performance, this fixture is perfect for mobile DJs, stage designers, and production crews who need vibrant color washes in a lightweight, wireless-ready format.
Chauvet DJ SlimPAR H6 ILS Competitive Differences
- 6-in-1 RGBAW+UV LEDs for expanded color spectrum and UV effects
- ILS and D-Fi USB compatibility for coordinated wireless control
Chauvet DJ SlimPAR H6 ILS Description
The
Chauvet DJ SlimPAR H6 ILS combines sleek design and high-output color mixing into a versatile LED par fixture that’s ideal for both portable and permanent setups. With six 8W hex-color LEDs (RGBAW+UV), it produces a full spectrum of colors, smooth fades, and natural-looking white tones.
Thanks to its ILS (Integrated Lighting System) compatibility, it can easily sync with other ILS-ready Chauvet fixtures for impressive multi-fixture light shows without complex programming. Built-in dimming curves ensure smooth LED fades, and the fixture’s flicker-free operation makes it suitable for camera use in broadcast and livestream environments.
You can control the SlimPAR H6 ILS via DMX, Master/Slave, Sound-Active mode, or wirelessly using a D-Fi USB transceiver (sold separately). It also supports the IRC-6 remote for point-and-shoot convenience. Custom color mixing is quick and intuitive with the onboard LED display.
Compact and lightweight, the SlimPAR H6 ILS fits easily into truss sticks or the optional CHS-SP4 VIP Gear Bag, making transport and setup hassle-free.
Model Features
- 6-in-1 RGBAW+UV color mixing with 8W LEDs
- ILS compatibility for synchronized multi-fixture control
- D-Fi USB compatibility for wireless DMX or master/slave
- DMX, Sound-Active, and Master/Slave modes
- Flicker-free operation for on-camera use
- Custom color mixing via onboard LED display
- Optional IRC-6 remote for quick color and program access
- Slim, lightweight housing fits inside sticks of TRUSST®
Model Specifications
- DMX Channels: 6, 8, or 12
- Light Source: 6x 8W RGBAW+UV LEDs (50,000 hrs)
- Beam Angle: 25°
- Field Angle: 43°
- Illuminance: 1,891 lux @ 2 m
- Strobe Rate: 0–30 Hz
- Power and Current: 41W, 0.6A @ 120V | 41W, 0.3A @ 230V
- Power Linking: 14 units @ 120V | 24 units @ 230V
- Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
- Dimensions: 7.5 x 3.3 x 8.8 in (192 x 84 x 225 mm)
- Weight: 2.6 lb (1.2 kg)
- Approvals: CE, UKCA, RoHS
What's In The Box
- SlimPAR H6 ILS fixture
- Power cord
- Quick reference guide
Chauvet SlimPAR H6-ILS
(Chauvet DJ SlimPAR H6)
