Color Key Creator Beam 150

Ultra-Narrow Beam Moving Head with Prism and RGB Halo Effects

The Color Key CKU-5140 Creator Beam 150 is a high-performance 100W moving head beam fixture designed for impactful light shows, high-energy dance floors, and immersive production environments. With its ultra-tight 2.1° beam angle and creative feature set, this professional luminaire is ideal for DJs, clubs, live events, and permanent installations.

Color Key CKU-5140 Competitive Differences

• 100W cool white LED with 630,000 lux @ 2m brightness for ultra-focused beam projection

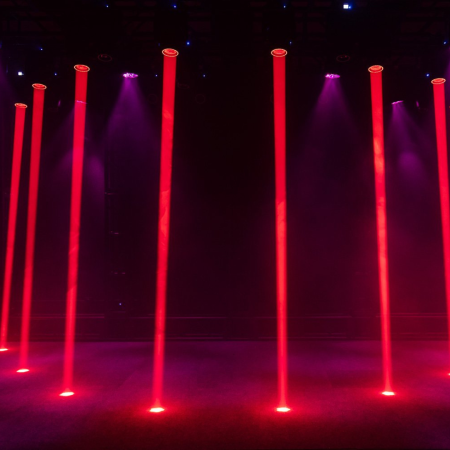

• Ultra-narrow 2.1° beam angle for sharp mid-air effects
• 11-color wheel with split-color capabilities
• 18 static gobos with shake effect and motorized focus
• 18-facet prism with integrated rainbow filter for complex beam dispersion
• Built-in frost filter for soft wash effects when needed
• RGB halo with 48 LEDs and synchronized chases across Creator Series fixtures
• Frame Set controls limit pan/tilt to keep beams off unwanted areas

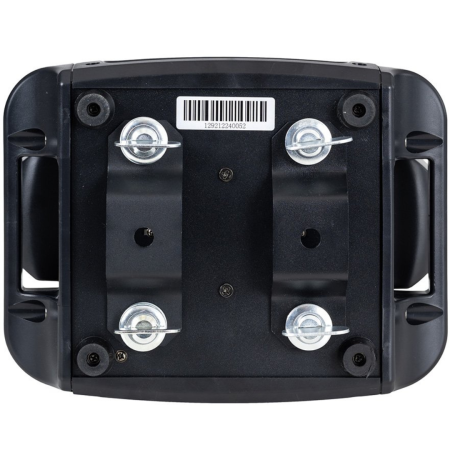

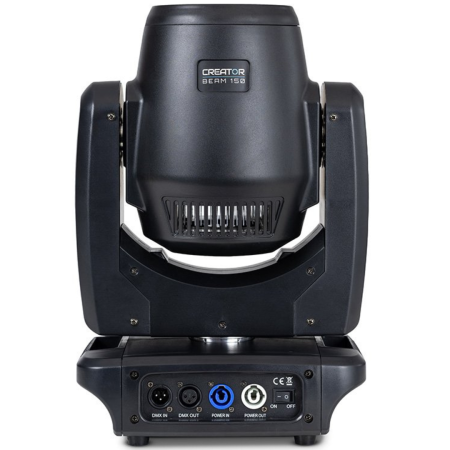

• Dual quick-release mounting brackets and PowerCon In/Out for quick setup

Color Key CKU-5140 Description

The Creator Beam 150 transforms stages and venues with its pinpoint 2.1° beam and full suite of creative lighting tools. It boasts a brilliant 100W LED source that delivers an impressive 630,000 lux at 2 meters, ensuring visibility and clarity even in large, high-output environments. An extensive feature set includes an 11-color wheel, 18 static gobos, and an 18-facet rotating prism with rainbow overlay—perfect for high-impact aerial projections.

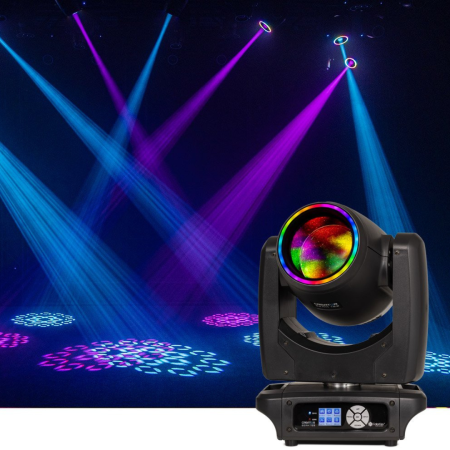

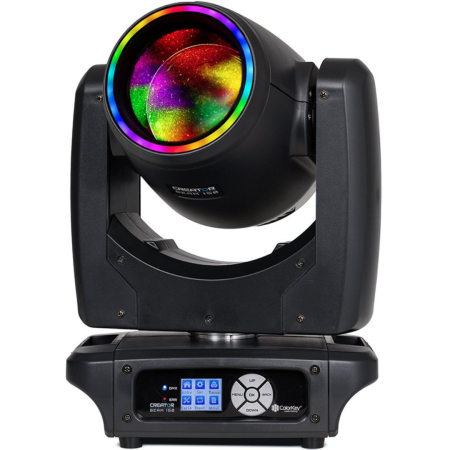

The RGB halo encircling the beam head adds another layer of eye-catching visuals. Synchronized with other fixtures in the Creator Series, the halo delivers dynamic, pre-programmed chases for coordinated effects. Designed for live use, Frame Set mode keeps lighting safely aimed, while motorized focus and built-in strobe effects allow for precision control and creativity in any application.

From professional mobile entertainers to large-scale event production crews, the Creator Beam 150 offers portability, power, and programming versatility in a sleek, compact form. Quick-release brackets and onboard LCD navigation streamline installation and operation, making this fixture a strong asset for any lighting rig.

CKU-5140 Features

• 100W white LED source with 2.1° beam angle
• 48 RGB LEDs with synchronized halo effects
• 11-color wheel with split-color capabilities
• 18 static gobos + shake effect
• 18-facet rotating prism with rainbow filter
• Frost filter for beam diffusion
• Frame Forward and Frame Up pan/tilt restrictions
• Motorized focus for accurate gobo projection
• Independent beam and halo dimmer and strobe control
• 1.77-inch color LCD for easy configuration

CKU-5140 Specifications

• Color Temperature: 8,000K
• Brightness: 630,000 lux @ 2 meters
• Pan: 540° with fine adjustment
• Tilt: 260° with fine adjustment
• Strobe: 1–25 Hz, random and pulse modes
• Dimmer: 0–100% linear
• Control Modes: DMX512, Master-slave, Auto, Sound Active
• DMX Channels: 21
• Power Connection: PowerCon In/Out
• DMX Connection: 3-pin In/Out
• LED Lifetime: 50,000 hours
• Max Power Consumption: 150W
• Voltage: AC100–240V, 50/60 Hz
• Dimensions: 16.1" x 11" x 7.9" (41 x 28 x 20 cm)
• Weight: 18.3 lbs (8.3 kg)
• UPC: 810189840034

COLORKEY Creator Beam 150 (Color Key CKU-5140)
