Retro LED Stage Fixture
The

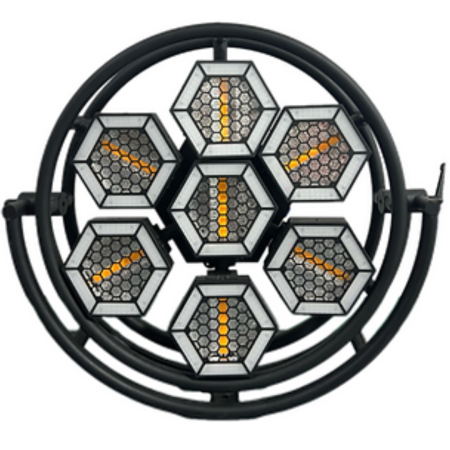

Crisp VINTAGE CIRCULUS 7 is a unique lighting fixture that fuses retro aesthetics with modern control and functionality. Featuring seven 50W warm white COB LEDs and over 1,100 RGB decorative LEDs, this fixture creates rich wash effects, colorful accents, and nostalgic visual impact. Ideal for theatrical stages, live music venues, corporate events, and themed parties, it delivers an eye-catching centerpiece for any indoor lighting design.
Crisp VINTAGE CIRCULUS 7 Competitive Differences
- 7x50W warm white COB LEDs plus 1176 RGB decorative LEDs
- 314 built-in macros including RGB, RGBW, and white effect combinations
Crisp VINTAGE CIRCULUS 7 Description
The
VINTAGE CIRCULUS 7 is more than just a stage light — it's a visual statement. With individually controllable LED zones (48 RGB and 24 white), it offers pixel-level design control for custom looks or automated operation via 314 built-in macros. These include 126 RGB, 126 RGBW, and 62 white lighting patterns, providing endless options for immersive lighting design.
The warm white main LEDs deliver soft yet powerful illumination, ideal for adding texture and atmosphere to live performances, while the surrounding RGB LEDs add ambient sparkle and color. A wide 120° beam angle ensures full-stage coverage with smooth, even washes.
Wash and strobe effects with adjustable speed allow the
Crisp VINTAGE CIRCULUS 7 to shift seamlessly between subtle background mood lighting and bold, energetic effects for concerts or DJ sets. Control options include multiple DMX channel modes, Master-Slave, Auto, and Sound Active modes for full flexibility in integration.
With its retro-inspired look, powerful output, and refined controls, this fixture is perfect for designers seeking to blend vintage charm with modern lighting precision.
Model Features
- 7x50W warm white COB LEDs for powerful wash output
- 1176x RGB 0.3W SMD LEDs for ambient decorative effects
- 48 RGB and 24 white LED zones for pixel mapping
- 314 built-in macro effects (RGB, RGBW, and white)
- 120° beam angle for wide coverage
- Wash and strobe effects with variable speed
- 0–100% linear dimming and 1–25Hz strobe rate
- Multiple DMX modes plus Auto, Sound, and Master-Slave
Model Specifications
- Main Light Source: 7x50W warm white COB LEDs
- Auxiliary Light Source: 1176x RGB SMD 5050 LEDs (0.3W)
- Average Lifespan: 50,000 hours
- Beam Angle: 120°
- DMX Channels: 4 / 22 / 28 / 49 / 64 CH
- Control Modes: DMX, Master-Slave, Auto, Sound
- DMX Connectors: 3-pin XLR in/out
- Power Connectors: PowerCon in/out
- Power Consumption: 350W
- Input Voltage: AC 100–220V, 50/60Hz
- IP Rating: IP20 (indoor use)
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Dimensions: 33.7 x 6.6 x 37.9 in (860 x 170 x 966 mm)
- Weight: 45 lb (20.45 kg)
What's In The Box
- Vintage Circulus 7 unit
- Power cable
- Carton box
- 1-year warranty
Crisp VINTAGE CIRCULUS 7
(Crisp SPL-VINT-CIRC7)
