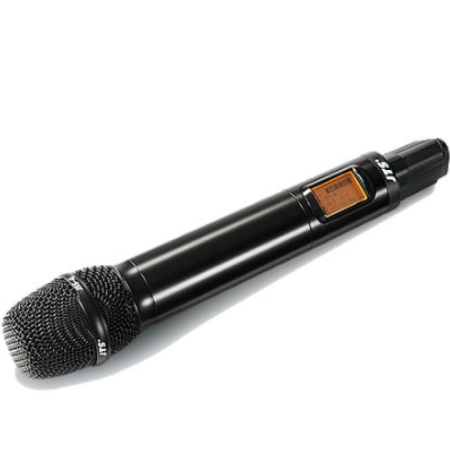

JTS JSS-4a (w/ TC-22)
2400 to 3000 selectable frequencies
Preset 15 groups each of up to 63 compatible channels
Phase-Locked Loop (PLL) synthesized tune
Extended dynamic range and smooth frequency response.
Adjustable transmission power between Low and High
The panel Lock-On function prevents tampering and RF interruption
Together with JTS various capsules preferred miking is assured.
It is designed with a slot-in charging feature when fitted with two AA NiMH rechargeable batteries.
Specifications:
Code: 81134
Net Dimension (WxHxD): 50 x 253 x 35.5mm
Net Weight: 93g
Frequency Preparation: PLL Synthesized Control
RF Outputs: High/Low
Stability: < 10KHz
Frequency Deviation: 48KHz (Peak)
Chassis: Aluminium Alloy
LCD Display: Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls: Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions: < -50dBC
Audio Frequency Response: 50Hz - 18kHz
Battery: UM3, AA x2
