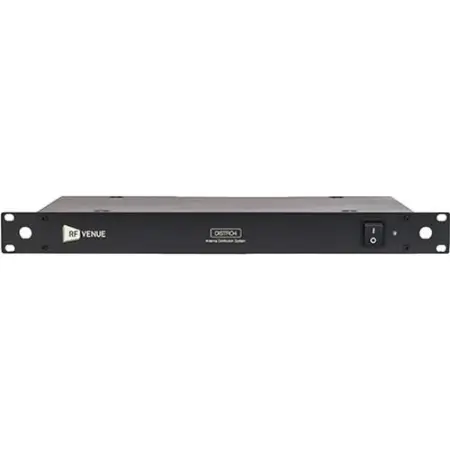

RF Venue DISTRO4 Antenna Distribution System

Audio-Technica DISTRO4 - Antenna Distribution System

DISTRO4™ is a broadband UHF (470-952 MHz) antenna distribution amplifier that routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system. Four amplified outputs compensate for signal strength lost in the splitting process. Two or more units may be cascaded together to accommodate setups with larger channel counts.

The Audio-Technica DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. For active antennas and in-line amplifiers, DISTRO4 provides an internal switch to apply 12V DC power over coaxial cable to antenna connections. It includes all RF and DC power cables needed to connect a 4-channel wireless microphone system, as well as cascade to one additional DISTRO4 antenna distribution system.

Audio-Technica DISTRO4 Features:
Four amplified outputs compensate for signal strength lost in the splitting process
Cascade output allows two or more units to be connected together to accommodate more than four receivers
Internal switch for applying 12V DC power to antenna connections
DC output jacks supply power to connected receivers
Internal 2000 mA internal power supply (no wall wart)
Includes one AC cable, four DC cables, and 10 BNC jumpers
Full rack width (1 RU)


Audio-Technica DISTRO4 Specifications:
Operating frequency: 470 to 952 MHz
RF output level (gain): 3 dB (±2 dB)
Cascade output level: 0 dB ~ +2 dB
Output connection isolation: ≥ 25 dB
Third order intercept point: 24 dBm
Impedance: 50 ohms
Power consumption: 60 W
Input AC voltage: 100~240 V switching
DC over coax (to external antennas): 12-14V DC
Output DC voltage (to receiver jacks): +12V
Dimensions: 480 mm (18.90") W x 250 mm (9.84") D x 45 mm (1.77") H
Weight: 2.15 kg (4.7 lbs)
Accessories included: AC cable; DC cable (x 4), BNC jumper (x 10)

Audio Technica Distro4 (RF Venue Distro-4)
