Omnidirectional Diversity Antenna for Reliable Wireless Microphone Coverage
The
RF Venue D-OMNI Diversity Omni Antenna is a next-generation solution for wireless microphone systems requiring consistent coverage across wide or multi-room areas. Designed with dual-element omnidirectional technology, this antenna captures both vertically and horizontally polarized signals—eliminating common signal dropouts caused by orientation changes.
RF Venue D-OMNI Competitive Differences
- Dual-polarity reception from vertically and horizontally aligned antennas in one compact unit
- Omnidirectional 360° coverage on both axes ensures stable signal in any direction
- Reduces installation time and cost—no need for two separate antennas

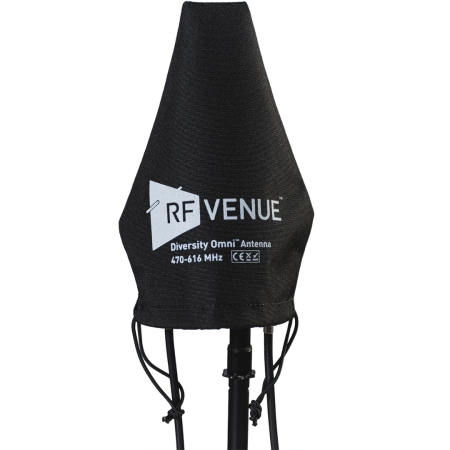

- Weather-resistant construction with included Cordura nylon cover for outdoor use
- Compatible with all wireless mic systems operating from 470–616 MHz
RF Venue D-OMNI Description
The

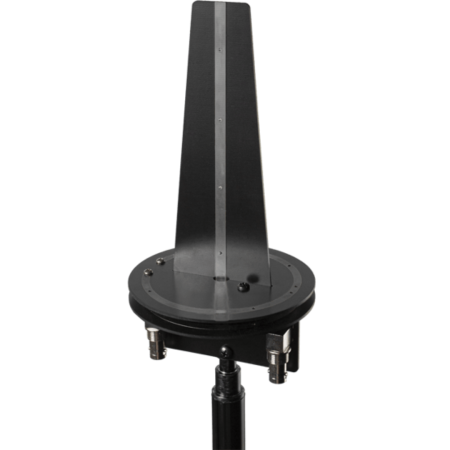

D-OMNI builds on the trusted performance of the Diversity Fin® with an omnidirectional design that ensures dependable wireless coverage regardless of mic orientation. Its integrated vertical monopole and horizontal folded loop antennas offer
dual-polarity reception, eliminating signal fade caused by alignment mismatches. This makes it ideal for
multi-room installations, outdoor venues, sports arenas, and mobile live sound setups.

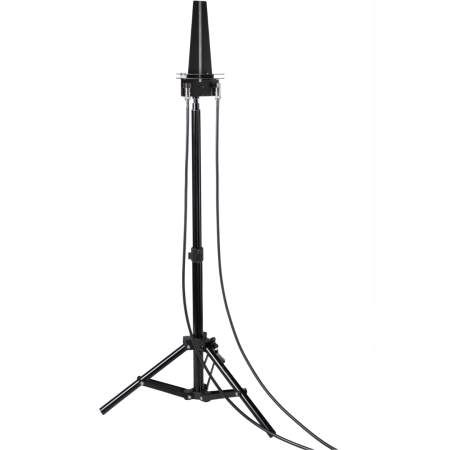

With a compact form factor and industry-standard BNC connectors, the D-OMNI can be mounted easily and positioned for maximum coverage. It operates passively—requiring no external power—and is compatible with RF Venue’s DISTRO4 or DISTRO9 HDR systems, as well as any brand of wireless mic gear in the 470–616 MHz range.
RF Venue D-OMNI Features
- Dual internal antenna elements (vertical and horizontal)
- 360° azimuth beam width for full-area coverage
- Rugged, weather-resistant design with protective cover included
- Mounts via standard 1/4-20, 3/8-16, or 5/8-27 threads
- Works with analog and digital wireless mic systems
D-OMNI Technical Specifications
- Frequency Range: 470–616 MHz
- Bandwidth: 146 MHz
- Impedance: 50Ω
- Return Loss (Vertical): -10.5 dB
- Return Loss (Horizontal): -8.3 dB
- Vertical Gain: +2 dBd @ 500 MHz
- Horizontal Gain: -2 dBd @ 500 MHz
- Beam Width (Both Elements): 360° azimuth
- Dimensions: 4.2" L x 8" H (105 x 204 mm)
- Weight: 0.5 lb (187 g)
- Connector Type: (2) BNC female
- Mount Threads: 1/4-20, 3/8-16, 5/8-27
- Operating Temperature: -9°F to 130°F (-23°C to +54°C)
- Color: Black and Gold
The RF Venue D-OMNI is the all-in-one antenna for installations and events where wireless microphone reliability and simplicity are essential.
RF VENUE D OMNI
(RF Venue D-OMNI)
