Architectural Antenna for Wireless Microphone Systems
The
RF Venue D-ARC Diversity Architectural Antenna is the ideal solution for permanent installations requiring clean aesthetics, superior performance, and simplified setup. Designed to replace traditional paddle antennas, the D-ARC is a compact, paintable, wall or ceiling-mount diversity antenna that eliminates signal dropouts while blending seamlessly into any space.
RF Venue D-ARC Competitive Differences
- Single enclosure houses both A and B diversity connections—no need for two antennas
- Outperforms paddle or wall panel antennas in challenging RF environments
- 140° conical coverage pattern with reliable range up to 200 feet
- Paintable low-profile design blends into walls or ceilings for discreet installation
- Significantly reduces installation time and cabling complexity
RF Venue D-ARC Description
The
D-ARC antenna by RF Venue offers an innovative, all-in-one diversity solution for wireless microphone systems in fixed installations. It features a patent-pending dual-feed design that replaces the need for two separate antennas, streamlining installation and improving wireless reliability.

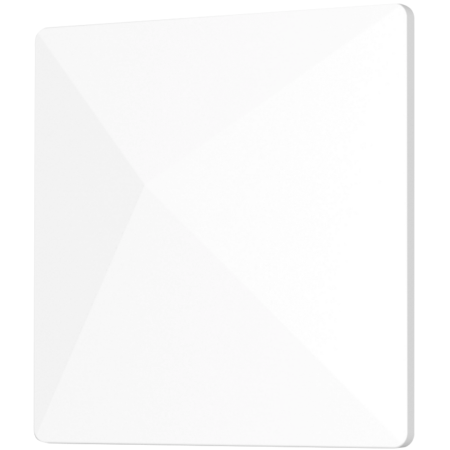

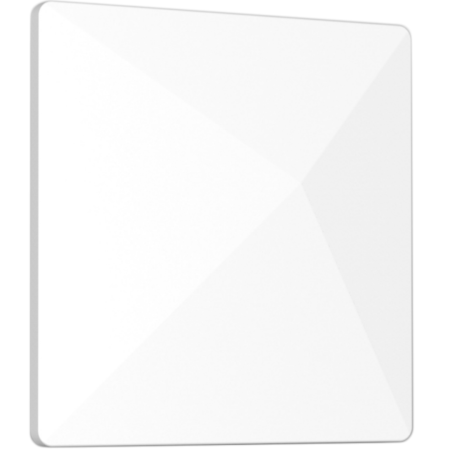

This sleek architectural antenna mounts directly to walls or ceilings and features a clean, white exterior that can be painted to match the surrounding décor—ideal for houses of worship, conference rooms, schools, auditoriums, and more. Despite its minimalist appearance, the D-ARC delivers professional-grade performance, thanks to its 140° conical coverage pattern, 3 dBd gain, and broad frequency support from 470–698 MHz.
Whether you're designing a new install or upgrading an existing system, the RF Venue D-ARC provides a modern and unobtrusive alternative to bulky antenna setups.
D-ARC Features
- Diversity antenna with built-in A and B connections

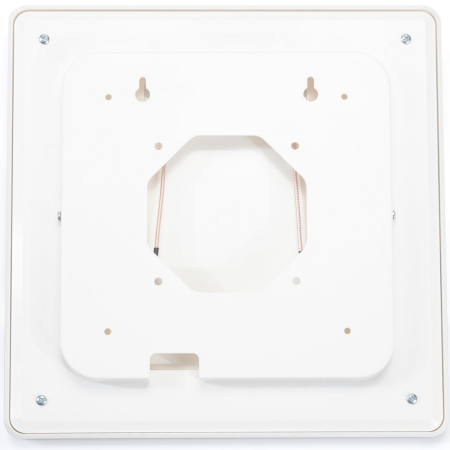

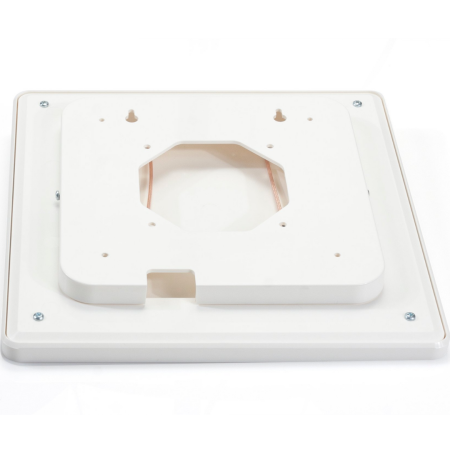

- Mounts directly to wall or ceiling surfaces
- Blends with décor—paintable white enclosure
- Compact and lightweight at just 2 lbs
- Delivers improved RF stability and reduced dropout risk
- 140° conical pattern for broad signal coverage
D-ARC Specifications
- Operating Frequency: 470–698 MHz
- Bandwidth: 146 MHz
- Impedance: 50Ω
- Return Loss: -6.4 dB
- Gain: 3 dBd
- Pattern: 140° conical, linear polarization
- Connector Type: Dual BNC female (for diversity A/B)
- Dimensions: 11" x 11" x 2" (280 x 280 x 50 mm)
- Weight: 2 lbs (0.9 kg)
- Mounting: Wall or ceiling
- Operating Temperature: 14–104°F (-10–40°C)
- Color: White (paintable)
*Typical range up to 200 feet; performance may vary depending on environment.
