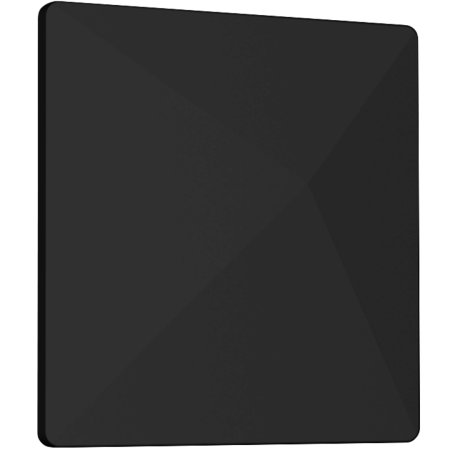

RF Venue D-ARCB

Low-Profile Wireless Mic Antenna for Clean, Reliable RF Performance

The RF Venue D-ARCB Diversity Architectural Antenna is a high-performance solution designed for wireless microphone systems in permanent installations. With a discreet, slim-profile design and patent-pending dual-feed technology, this antenna provides outstanding RF coverage without compromising aesthetics—perfect for boardrooms, houses of worship, conference centers, and broadcast facilities.

RF Venue D-ARCB Competitive Differences

• Patent-pending dual-feed design combines both A and B diversity connections in a single unit
• Wall or ceiling mountable with included hardware; install in any orientation
• Paintable, low-profile enclosure blends into architectural environments
• Professional-grade RF performance from 470–616 MHz with wide 146 MHz bandwidth
• Improves signal stability by eliminating dropouts from polarization shifts

RF Venue D-ARCB Description

The Diversity Architectural Antenna (D-ARCB) from RF Venue is engineered for seamless integration into any professional environment. Unlike traditional “shark fin” or paddle antennas, the D-ARCB houses both diversity antenna elements (A & B) in a single compact enclosure, making for a clean and efficient installation that doesn’t sacrifice performance. It is specifically tuned for wireless microphone systems operating in the UHF 470–616 MHz range, delivering a consistent and dropout-free signal through its unique flood pattern and linear polarization. This design overcomes the issues caused by fluctuating angles and orientations of handheld and bodypack transmitters—especially in reflective environments. Ideal for use in architecturally sensitive installations, the antenna mounts cleanly to walls or ceilings with the included hardware and can be painted to match surrounding surfaces. With no need for external power, the D-ARCB connects directly to your coaxial cable run with BNC terminals and is ready to go in minutes.

RF Venue D-ARCB Features

• Low-profile, paintable enclosure for architectural integration
• Dual-feed system eliminates the need for separate A/B antennas
• Compatible with all major wireless microphone brands
• Quick installation with included wall and ceiling mounting kits
• Improves RF signal stability in challenging indoor environments

D-ARCB Technical Specifications

• Radiation Pattern: Diversity flood
• Polarization: Linear
• Frequency Range: 470–616 MHz
• Impedance: 50 ohms
• Operating Bandwidth: 146 MHz
• Operating Temperature: 14°F to 104°F (-10°C to +40°C)
• Return Loss (Typical): -6.4 dB
• Connections: BNC female (2x for diversity)
• Dimensions: 11" W x 11" D x 2" H (280 x 280 x 50 mm)
• Weight: 2 lbs (0.9 kg)
• Included Accessories: Ceiling and wall hardware mounting kits

Upgrade your wireless mic installations with the RF Venue D-ARCB—designed for superior performance and architectural discretion.

RF VENUE D-ARCB (RF Venue D-ARC-B)
