Compact 10-Inch Powered Speaker with High Output and Networked Control
The
RCF KX 10-A is a professional-grade 2-way active loudspeaker delivering exceptional performance in a compact footprint. With a max SPL of 130 dB, integrated DSP, and rotatable 100° x 50° waveguide, this speaker is engineered for precise directivity and versatile deployment in live sound and fixed installation settings.
RCF KX 10-A Competitive Differences
- High-efficiency 2000W Class-D bi-amped system
- 10" neodymium woofer with 2.5” voice coil
- 1.75” PKX dome neodymium compression driver
- Rotatable 100° x 50° True Resistive Waveguide (TRW)
- Advanced DSP with FiRPHASE and Bass Motion Control (BMC)
- Onboard RDNet for networked monitoring and control
- Weather-resistant Baltic birch plywood cabinet with PowerCON TRUE1 TOP
- Quick Fit and M10 rigging points for flexible mounting options
RCF KX 10-A Description
The

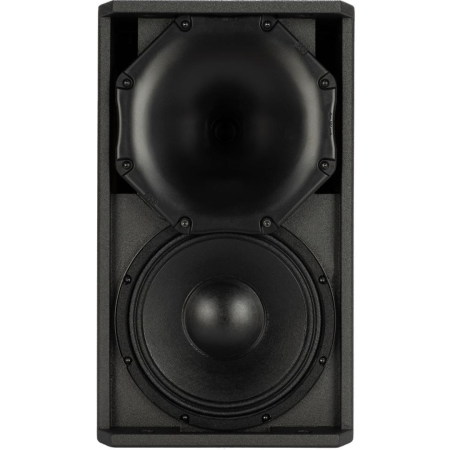

KX 10-A delivers high SPL and intelligibility in a portable design, making it ideal for AV professionals, rental companies, and integrators. It features a 10” neodymium woofer in a bass reflex enclosure and a 1.75” compression driver with a PKX dome mounted to a rotatable TRW horn, providing tailored dispersion whether mounted horizontally or vertically.

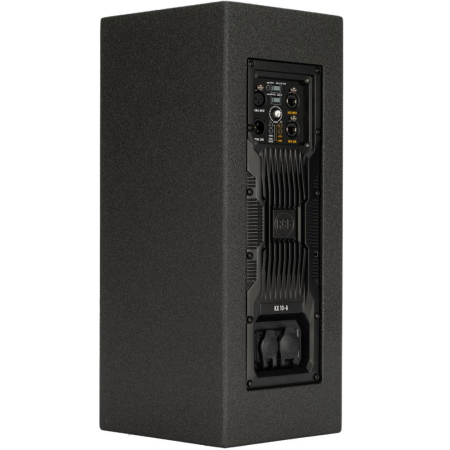

A 2000W Class-D amplifier powers the system with precision, while onboard DSP ensures pristine audio via FiRPHASE linear phase processing and BMC for enhanced low-frequency control. The speaker is also RDNet-enabled, allowing for remote monitoring, configuration, and preset management in complex systems. Built for durability and ease of use, the KX 10-A supports pole-mounting, flying, or ground stacking.
KX 10-A Features
- 130 dB max SPL
- 100° x 50° rotatable horn
- 10” neodymium woofer (2.5” voice coil)
- 1.75” PKX neodymium compression driver
- 2000W Class-D amplification (1400W LF + 600W HF)
- FiRPHASE and BMC DSP processing
- Thermal and HF protection with fast limiter
- Bypass, high-pass, and volume controls
- PowerCON TRUE1 TOP input/output
- Network-ready with RDNet onboard
KX 10-A Specifications
- Frequency Response: 60 Hz – 20,000 Hz
- Crossover Frequency: 1600 Hz
- Input Sensitivity: -2 dBu / +4 dBu
- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Cabinet Material: Baltic birch plywood
- Grille: Steel with acoustic cloth
- Color: Black
KX 10-A Dimensions & Weight
- Height: 20.08 in (510 mm)
- Width: 11.81 in (300 mm)
- Depth: 11.81 in (300 mm)
- Weight: 30.86 lbs (14 kg)
Shipping Dimensions
- Package Height: 24.21 in (615 mm)
- Package Width: 13.98 in (355 mm)
- Package Depth: 13.98 in (355 mm)
- Shipping Weight: 34.17 lbs (15.5 kg)

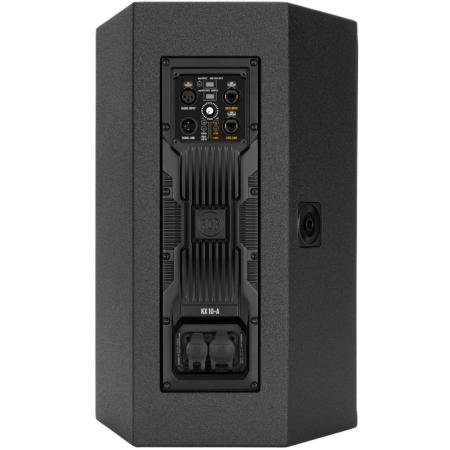

RCF KX 10-A
(RCF 13000901)
