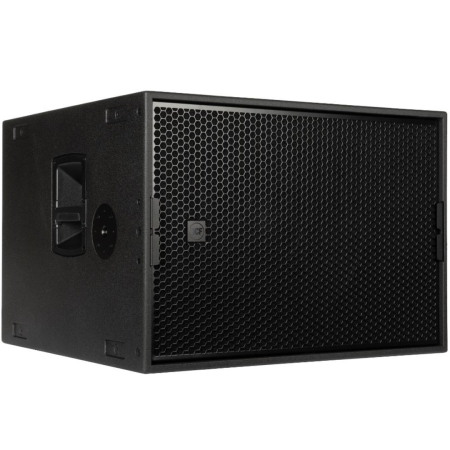

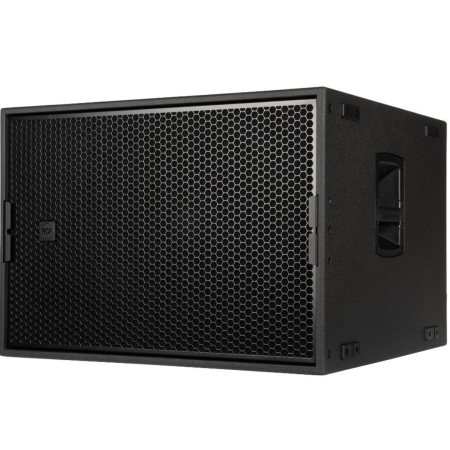

High-Powered 19-Inch Active Subwoofer for Touring and Installations
The
RCF SUB 9019-AS is a premium, high-output active subwoofer designed for live sound professionals who demand extreme SPL and low-frequency fidelity. Featuring a precision-engineered 19" neodymium transducer and a powerful 4000W Class-D amplifier, it delivers thunderous yet articulate bass response with up to 138 dB SPL.
RCF SUB 9019-AS Competitive Differences
- Massive 4000W peak Class-D amplification
- High-performance 19" neodymium woofer with 4" voice coil
- Up to 138 dB SPL output with extended low-frequency response
- Advanced RDNet networked management system

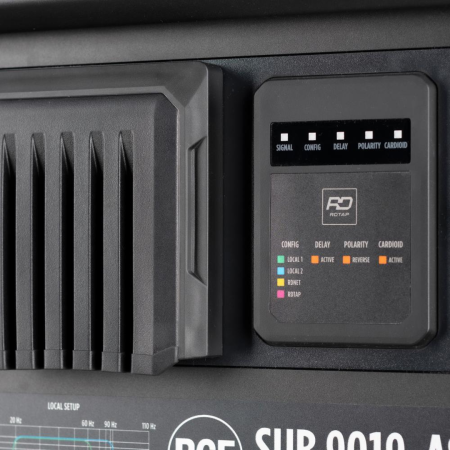

- RDTap contactless configuration, even when unpowered
- Custom crossover presets for seamless integration with RCF tops
- Adjustable EQ, delay, and cardioid configuration options
- Weatherproof cabinet with Polyurea finish and rain cover included
- powerCON TRUE1 TOP connectors for secure power linking
- Optional detachable front cart for enhanced mobility
RCF SUB 9019-AS Description
Engineered for high-demand applications, the
SUB 9019-AS combines modern DSP power with rugged touring-grade construction. Whether deployed in large venue installations or on tour, it delivers high-definition low-end reinforcement with unmatched efficiency and control.
Thanks to RCF’s onboard RDNet management system and proprietary RDTap contactless configuration, system setup is intuitive and fast—even while the unit is powered off. The sub’s frequency response from 30 Hz to 200 Hz ensures that both musical depth and punchy attack are handled with precision. Optional cardioid operation and built-in crossover presets optimize performance for use with a wide range of RCF loudspeakers.

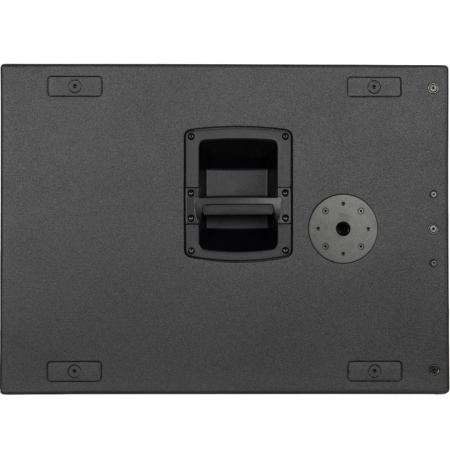

The enclosure is crafted from durable plywood with a weatherproof Polyurea coating, reinforced by a steel grille and M20 threaded pole mounts. Smart physical features like side handles and an optional detachable front cart add flexibility and ease of transport for the professional operator.
SUB 9019-AS Features
- 138 dB Max SPL
- 19" neodymium woofer with 4" voice coil
- 4000W Class-D amplification
- 30 Hz to 200 Hz frequency response
- RDNet networked control onboard
- RDTap contactless configuration system
- Built-in EQ, delay, and cardioid functions
- ACE crossover presets for RCF speaker integration
- Soft limiter and thermal protection
- powerCON TRUE1 TOP IN/OUT power connectors
- Plywood cabinet with Polyurea finish
- Includes I/O panel rain cover
SUB 9019-AS Specifications
- Frequency Response: 30 Hz – 200 Hz
- Max SPL: 138 dB

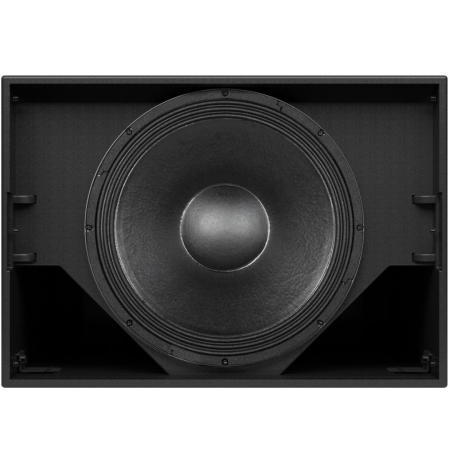

- Woofer: 19" neo, 4" voice coil

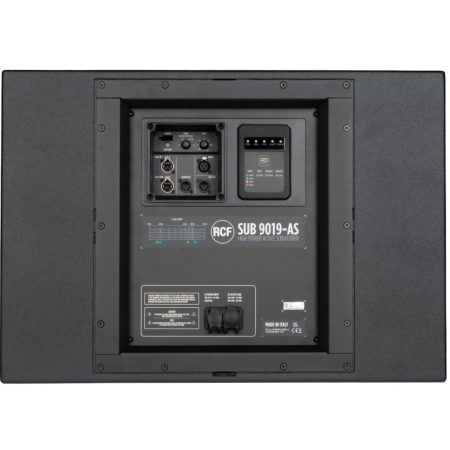

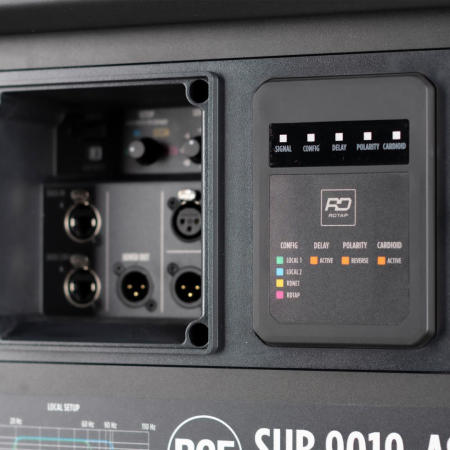

- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Input Sensitivity: -2 dBu / +4 dBu
- Protections: Thermal
- Limiter: Soft Limiter
- Controls: MUTE, VOL, PRESETS, RDTAP
- Cooling: Convection/Forced
- Power Connections: powerCON TRUE1 TOP IN/OUT
- Cabinet Material: Plywood with Polyurea finish

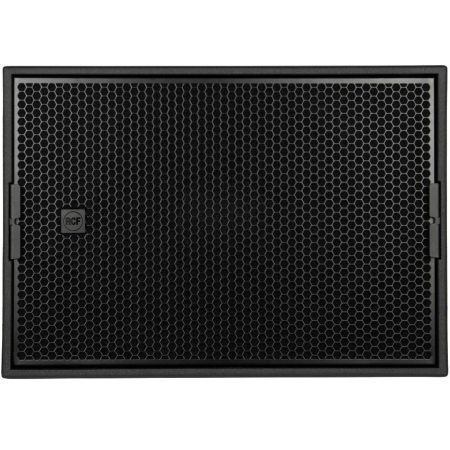

- Grille: Steel with clothing

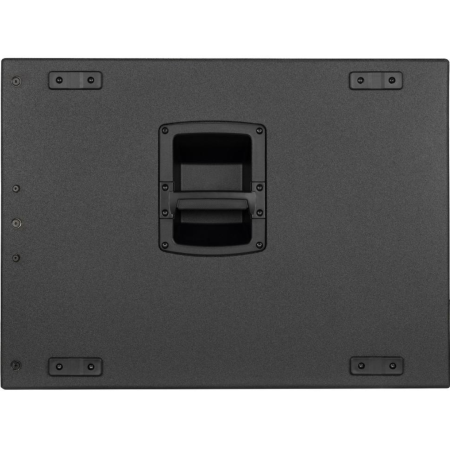

- Handles: 1 per side

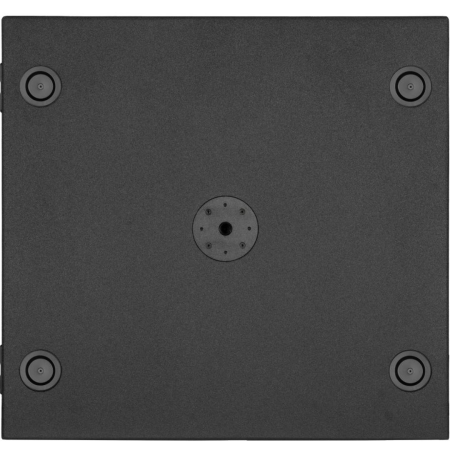

- Pole Mount: M20 thread
SUB 9019-AS Dimensions & Weight
- Height: 20.98 in (533 mm)
- Width: 29.72 in (755 mm)
- Depth: 28.07 in (713 mm)
- Weight: 117.73 lbs (53.4 kg)
Shipping Dimensions
- Package Height: 22.05 in (560 mm)
- Package Width: 31.5 in (800 mm)
- Package Depth: 29.53 in (750 mm)
- Package Weight: 127.87 lbs (58 kg)
RCF SUB-9019-AS
(RCF 13000908)
