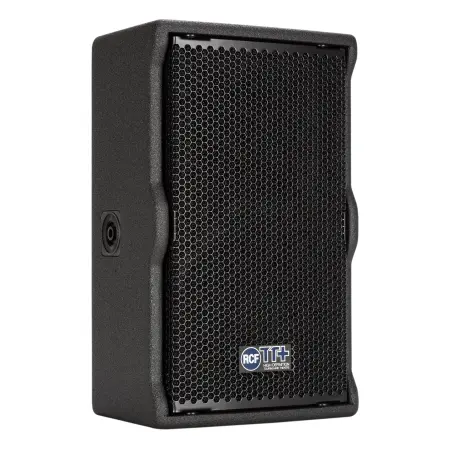

RCF TT 08-A II ACTIVE TWO-WAY HIGH DEFINITION SPEAKER
The RCF TT08-A II is by far the smallest member of the TT+ family, whilst being the most flexible and powerful tool in its class. Perfect for live sound to playback and monitoring, corporate events and broadcast studios. Though remarkably compact and lightweight, the TT 08-A II offers an incredible maximum sound pressure level of 128 dB. Its performance efficiency is higher than many larger 10” speaker systems.Features
128 dB SPL Max
1000W RMS, two-way Class-D amplifier
Rotatable 90° x 70° constant directivity horn
Quick Fit Bracket Socket
FiRPHASE
8’’ neodymium Woofers, 2.5’’ voice coil
Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
RDNet Networked Management
60 ÷ 20000 Hz Frequency Range
Acoustical specifications
Frequency Response: 65 Hz ÷ 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
Transducers
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
Woofer: 8'' neo, 2.5'' v.c
Input/Output section
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover frequencies: 900 HZ
Protections: Thermal, HF
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume, RDnet on boar
RDNet: Yes
Power section
Total Power: 2000 W Peak, 1000 W RMS
High frequencies: 600 W Peak, 300 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard compliance
CE marking: Yes
Physical specifications
Cabinet/Case Material: Baltic birch plywood
Hardware: 3X M10 TOP AND BOTTOM2X PIN D.10 AND M10 SIDE
Handles: 1 TOP
Grille: Steel
Color: Black
Size
Height: 450 mm / 17.72 inches
Width: 270 mm / 10.63 inches
Depth: 278 mm / 10.94 inches
Weight: 11 kg / 24.25 lbs
Shipping informations
Package Height: 500 mm / 19.69 inches
Package Width:330 mm / 12.99 inches
Package Depth:320 mm / 12.6 inches
Package Weight:12.7 kg / 28 lbs
RCF RDNet NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
TOURING & THEATRE PERFORMANCE
The innovative transducer design ensures extreme power-handling, making the TT 08-A II the right choice for top demanding applications. The onboard DSP provides linear phase filters and crossover, system equalization, polarity control, fast limiter, RMS limiter and configuration control from the back panel or advanced management via RDNet.
MULTIPLE APPLICATIONS
Innovative quick fit bracket socket for easy set-up and stable rigging
Pole mount, top and bottom M10 suspension points, quick fit bracket side sockets and a forged aluminum handle with rubber handgrip on top: the TT 08-A II cabinet it is fully equipped for every application. One side of the cabinet presents a 35° angle, perfect for stage monitoring.
DURABLE AND STURDY
The cabinets feature an aluminum top handle designed to facilitate transport positioning and loading operations. A bottom pole socket allows the use as a point source sound system on a stand or subwoofer pole. The speaker cabinet is made of high-quality Baltic birch plywood with a special adhesive to glue every layer; this makes the cabinet completely water resistant even before the special polyurea paint, applied to make it highly resistant to scratches and bumps.
NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
