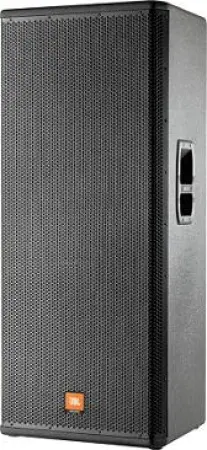

JBL MRX525

The MRX525 dual 15", 2-way dual chamber, bass reflex, main PA speaker is an excellent choice when the application calls for high performance and simplicity. A pair of MRX525s and a single, high-power amplifier comprise a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues. The MRX525 has 2 - 15" 265H Differential Drive woofers with combined power handling of 800W continuous. For the high frequencies, a 2408H 1.5" annular polymer diaphragm, neodymium compression driver is mounted to a 70° x 70° horn. The 70° coverage angle of the MRX525 is wide enough to provide coverage of an audience when used one-per-side, yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlex finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

JBL MRX525 Dual 15" 2-Way Loudspeaker Specifications:

• Frequency range: 40Hz-20kHz
• Frequency response: 57Hz-20kHz
• Sensitivity: 100dB SPL
• Nominal impedance: 4 ohms
• Power capacity (continuous/program/peak): 800W/1600W/3200W (2 hours), 700W/1400W/2800W (100 hours)
• Rated maximum SPL: 135dB SPL Peak
• Coverage pattern: 70° x 70° nominal
• Dimensions: 21"W x 48.75"H x 18"D
• Weight: 84 lbs.

JBL MRX525 Dual 15" 2-Way Loudspeaker Features:

• Lightweight, high-power, and extra low-frequency extension
• Dual 15" Differential Drive woofers for high-power capacity and extended LF performance
• 1.5" annular polymer diaphragm compression driver
• 70° x 70° coverage
• Heavy-duty 16-gauge protective screen backed
• steel grille
• Tough DuraFlex enclosure finish

  Applications:
• Live sound reinforcement for vocals and
• musical instruments
• High-level music playback
